Power Window Switch & Regulator Motor - LH Front Side Door
Power Window Switch & Regulator Motor - LH Front Side Door

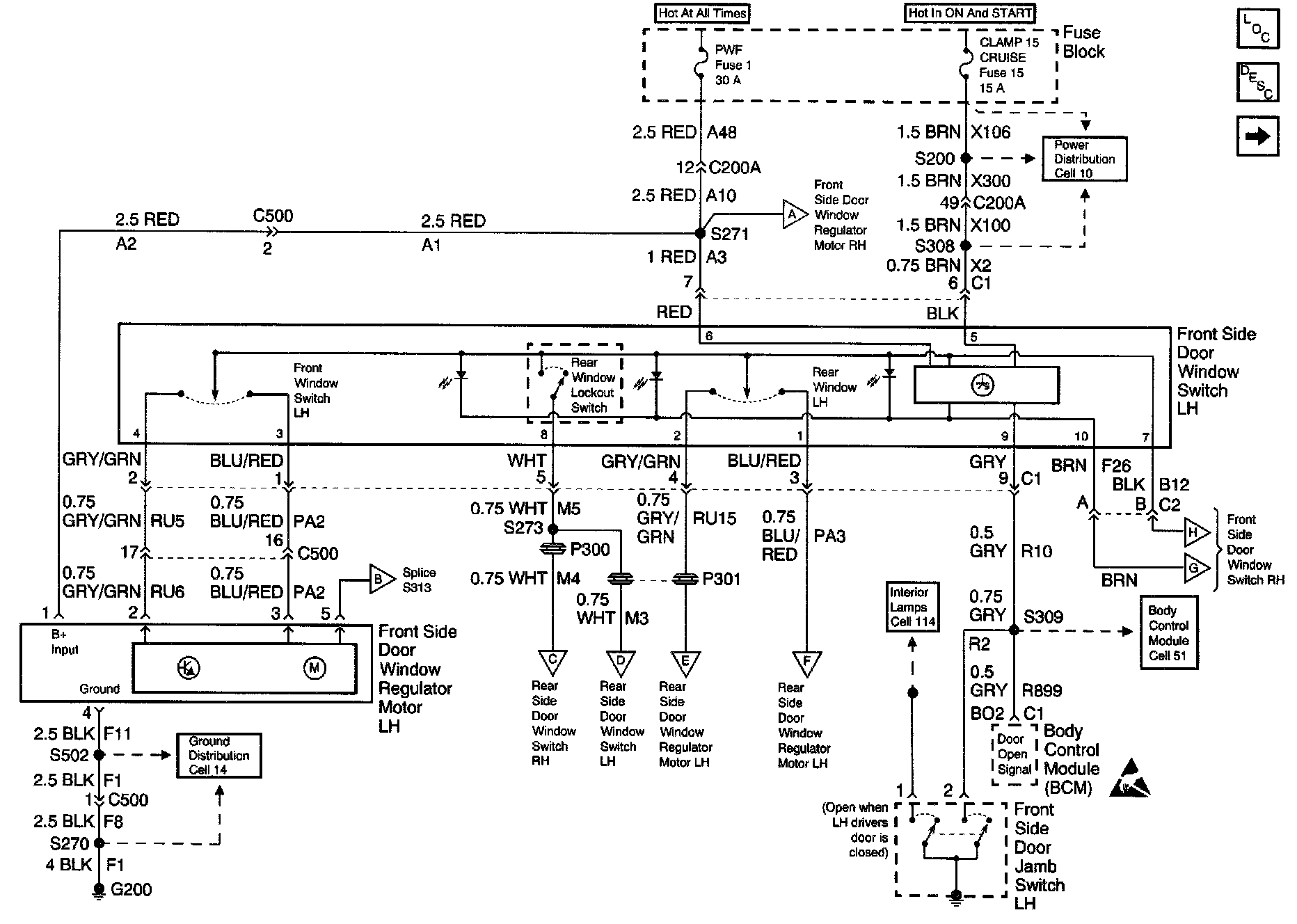

Power Window Schematics: LH Front Side Door Window Switch & Window Regulator Motor:
