Rear Suspension Leveling Air Compressor K19

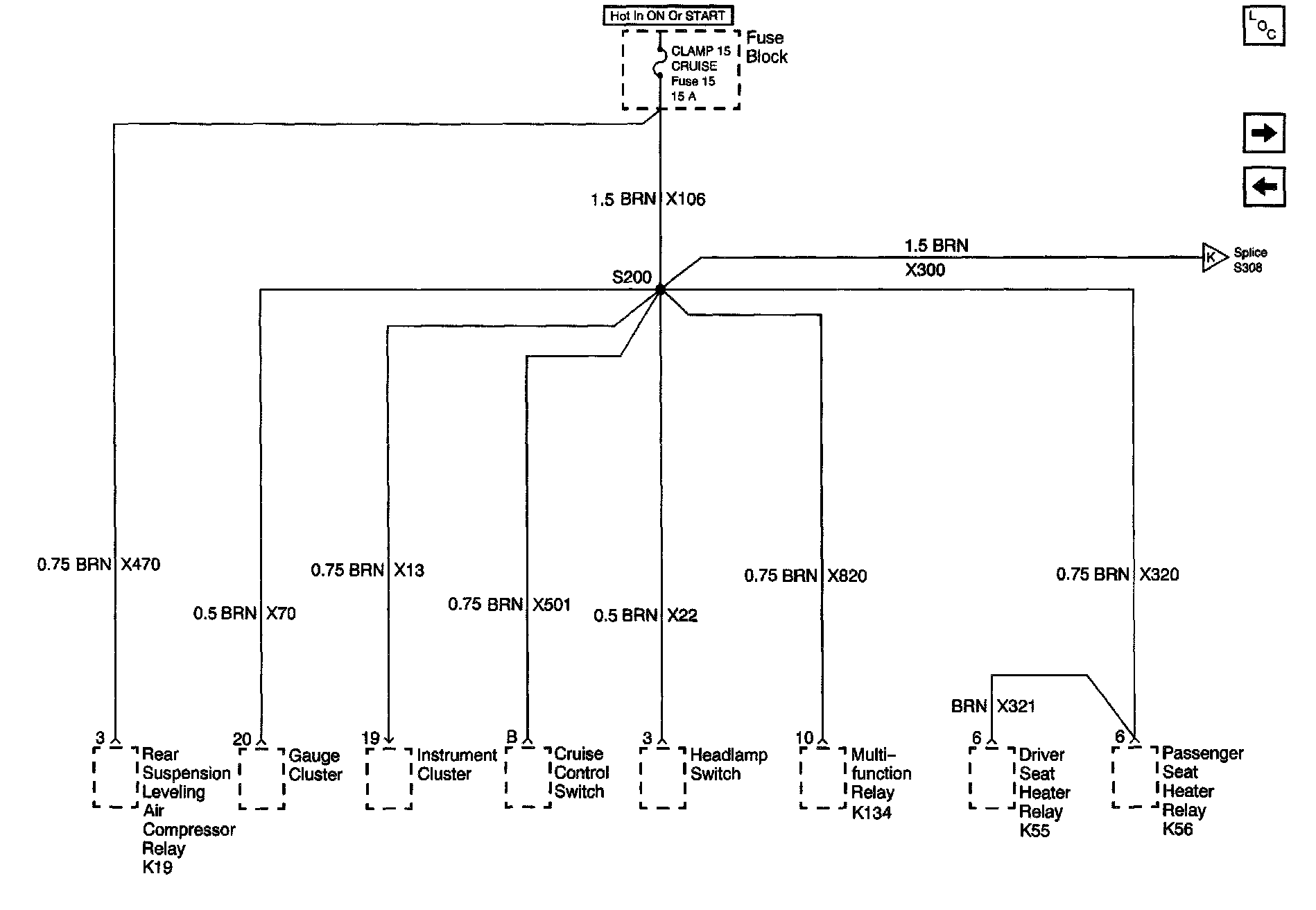

Power Distribution Schematics: Fuse Block, Cruise Control, Heater Relays, Instrument Cluster And Headlamp Switch:



Power Distribution Schematics: Fuse Block, Horns Fuel Pump, EBTCM, LH Headlamp And DRL Relays:
