Fan Control K52

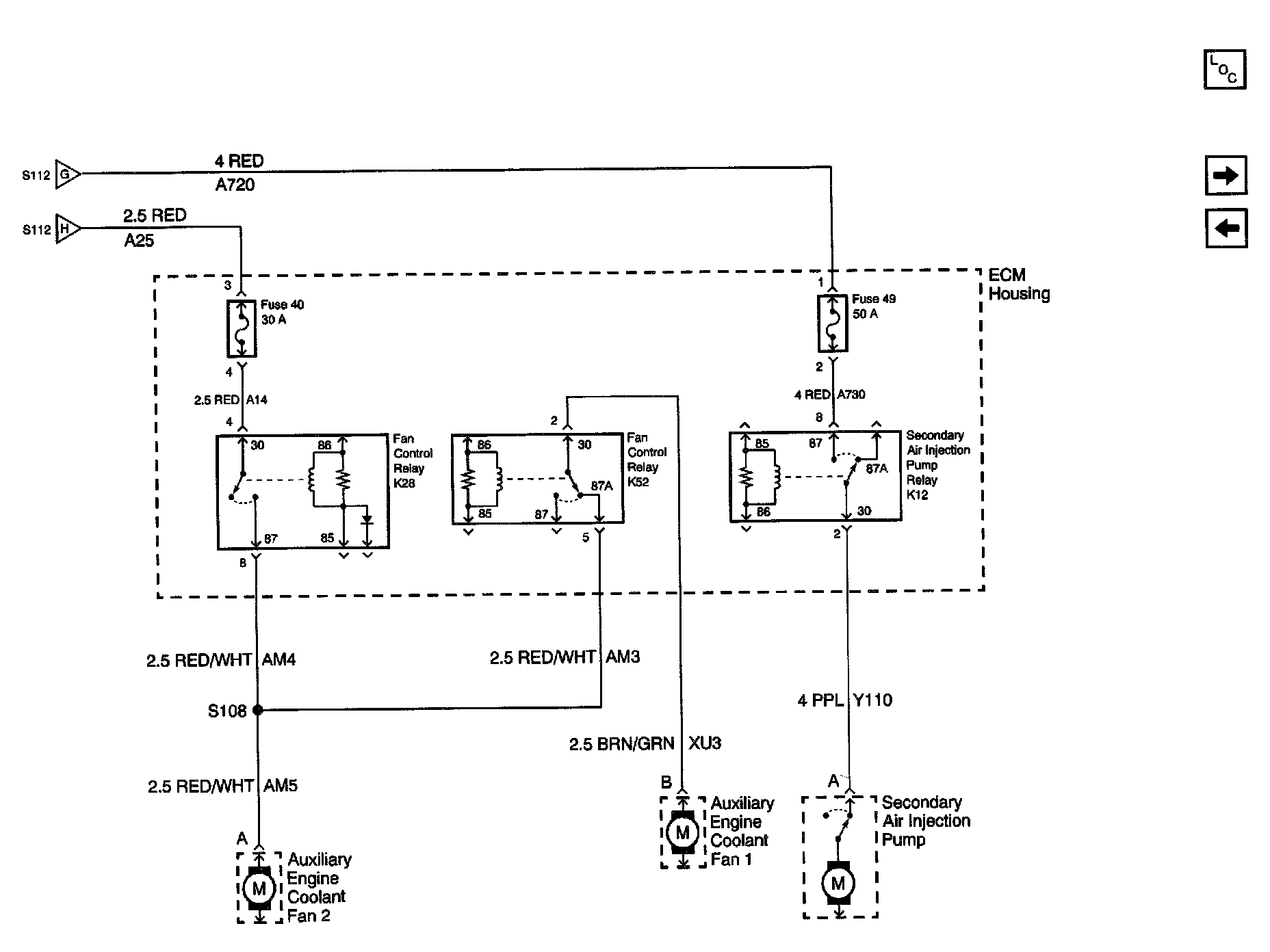

Power Distribution Schematics: ECM Housing, Secondary Air Injection Pump, Auxiliary Engine Coolant Fan 2:
