Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> A A Fuses By Number >> 21 - 52 >> 43

21 - 52: 43

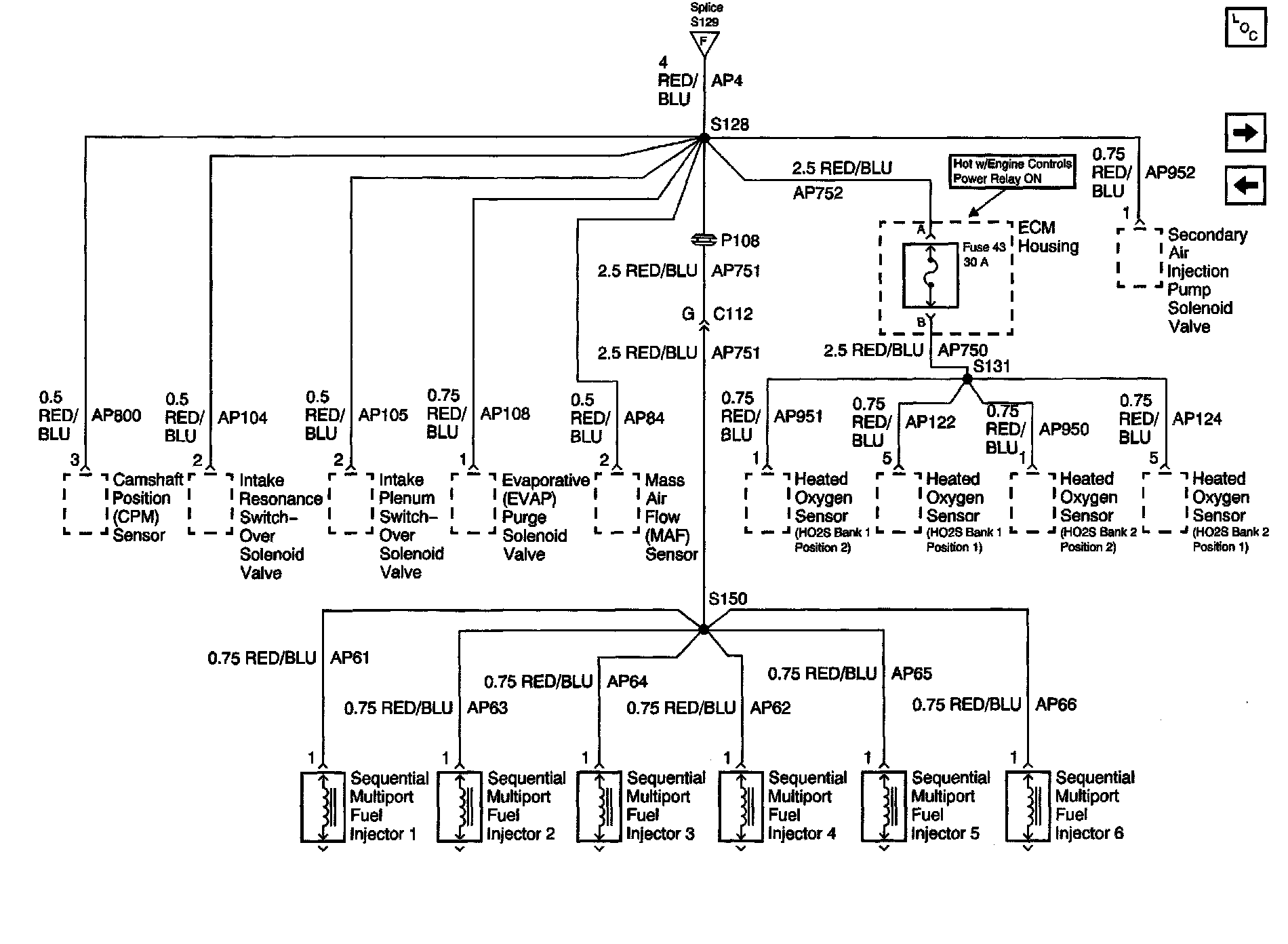

Power Distribution Schematics: Engine Controls, Fuel Injectors And Heated Oxygen Sensors:
