Home
>>
Cadillac
>>
1999
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
A A Fuses By Number
>>
1 - 20
>>
2
1 - 20: 2
Power Distribution Schematics: Ignition Switch And Fuse Block:

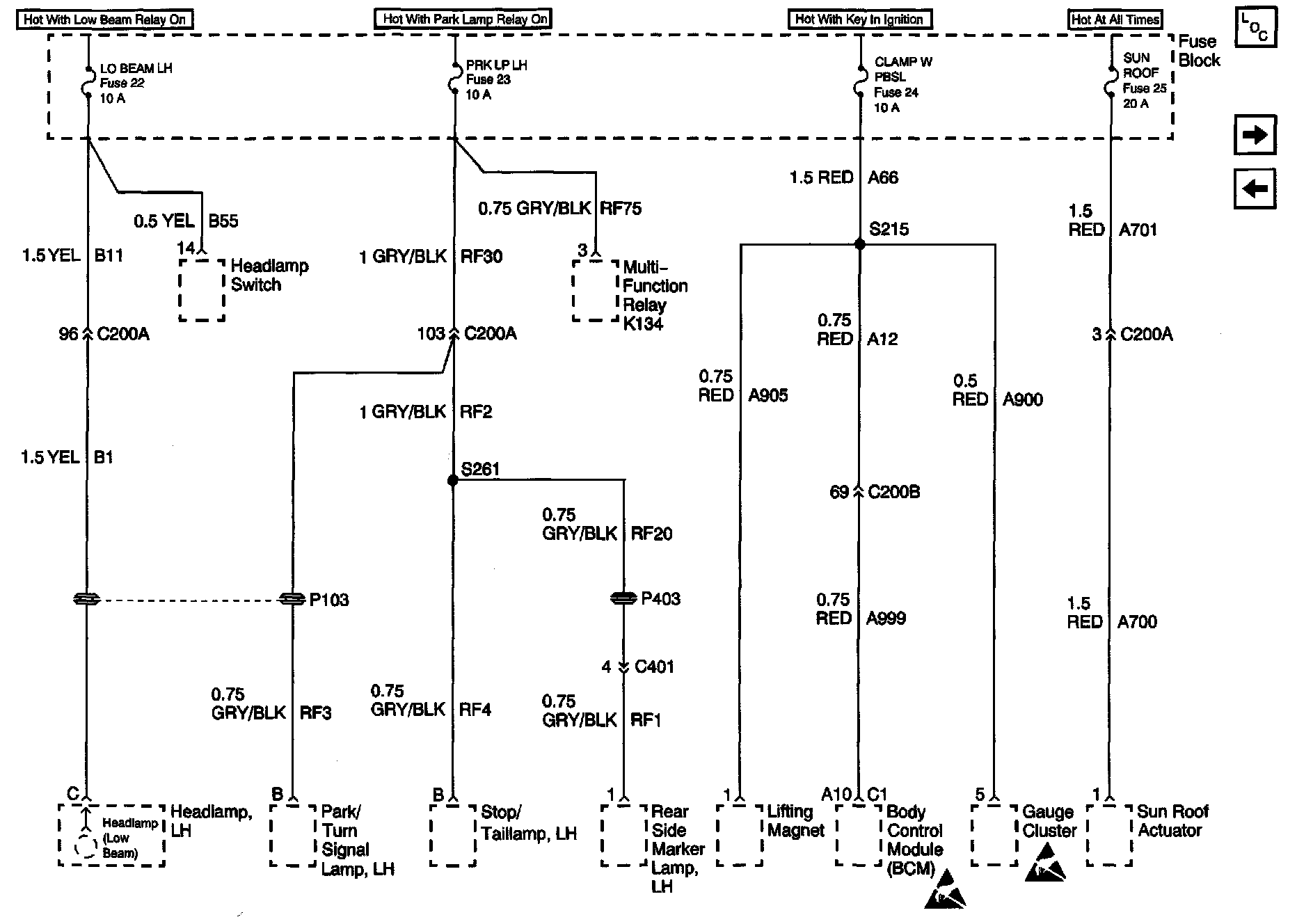

Power Distribution Schematics: Fuse Block, BCM, Lifting Magnet, Sun Roof Actuator And Gauge Cluster:
