HTR Relays, TCM, Rear WDO Motors & Rear Sunshade
HTR Relays, TCM, Rear WDO Motors & Rear Sunshade

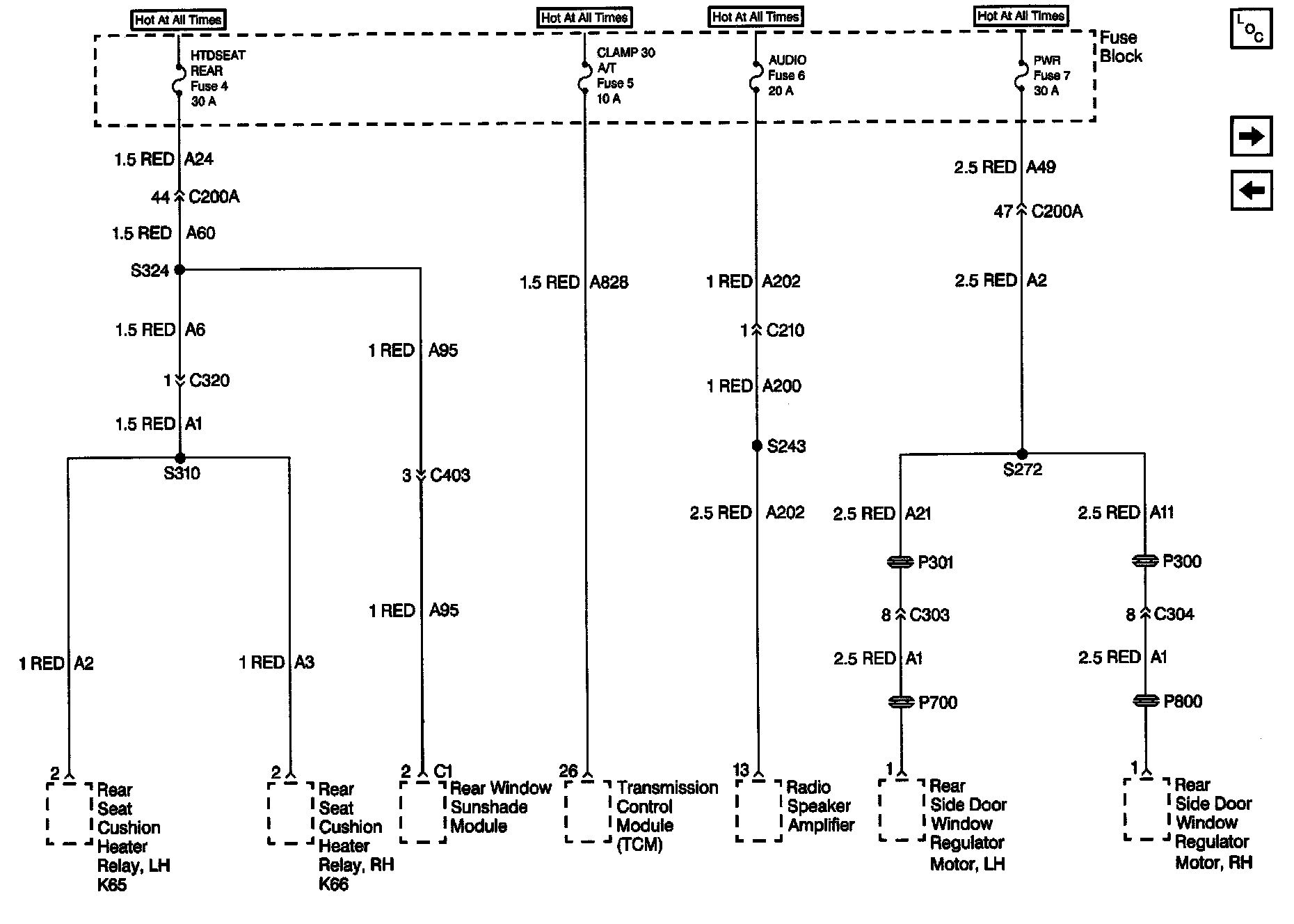

Power Distribution Schematics: Fuse Block, Heater Relays, TCM, Rear Window Regulator Motors And Rear Sunshade:
