HTD Outside Rear View Mirror & Rear Defogger Relay
HTD Outside Rear View Mirror & Rear Defogger Relay

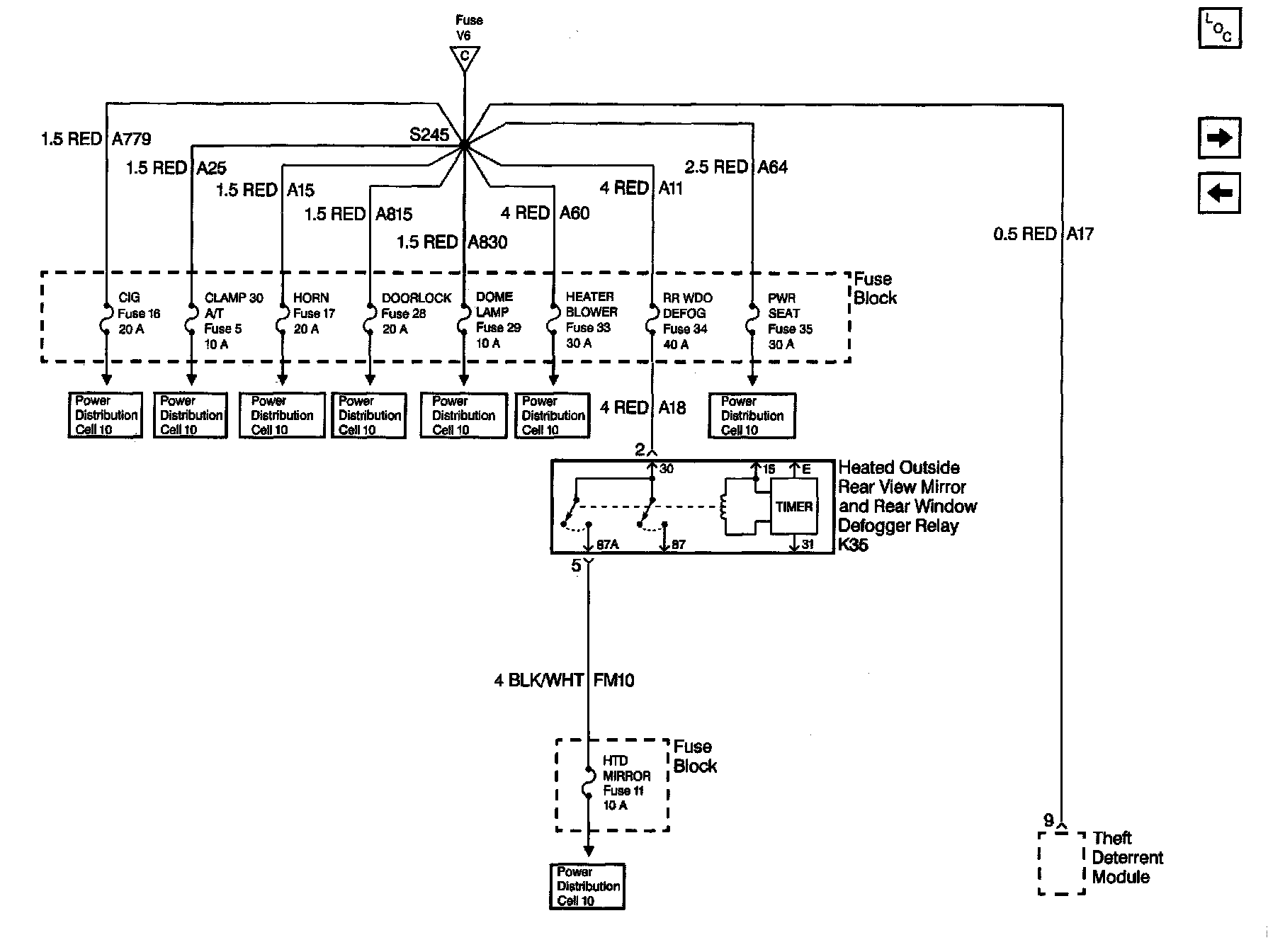

Power Distribution Schematics: Fuse Block, Heated Outside Rear View Mirror And Rear Defogger Relay:
