FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
1999
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Ground Distribution Diagrams
>>
Grounds By Component
>>
Radio, Cell Phone, CD Changer and Radio Speaker Amplifier
Radio, Cell Phone, CD Changer and Radio Speaker Amplifier

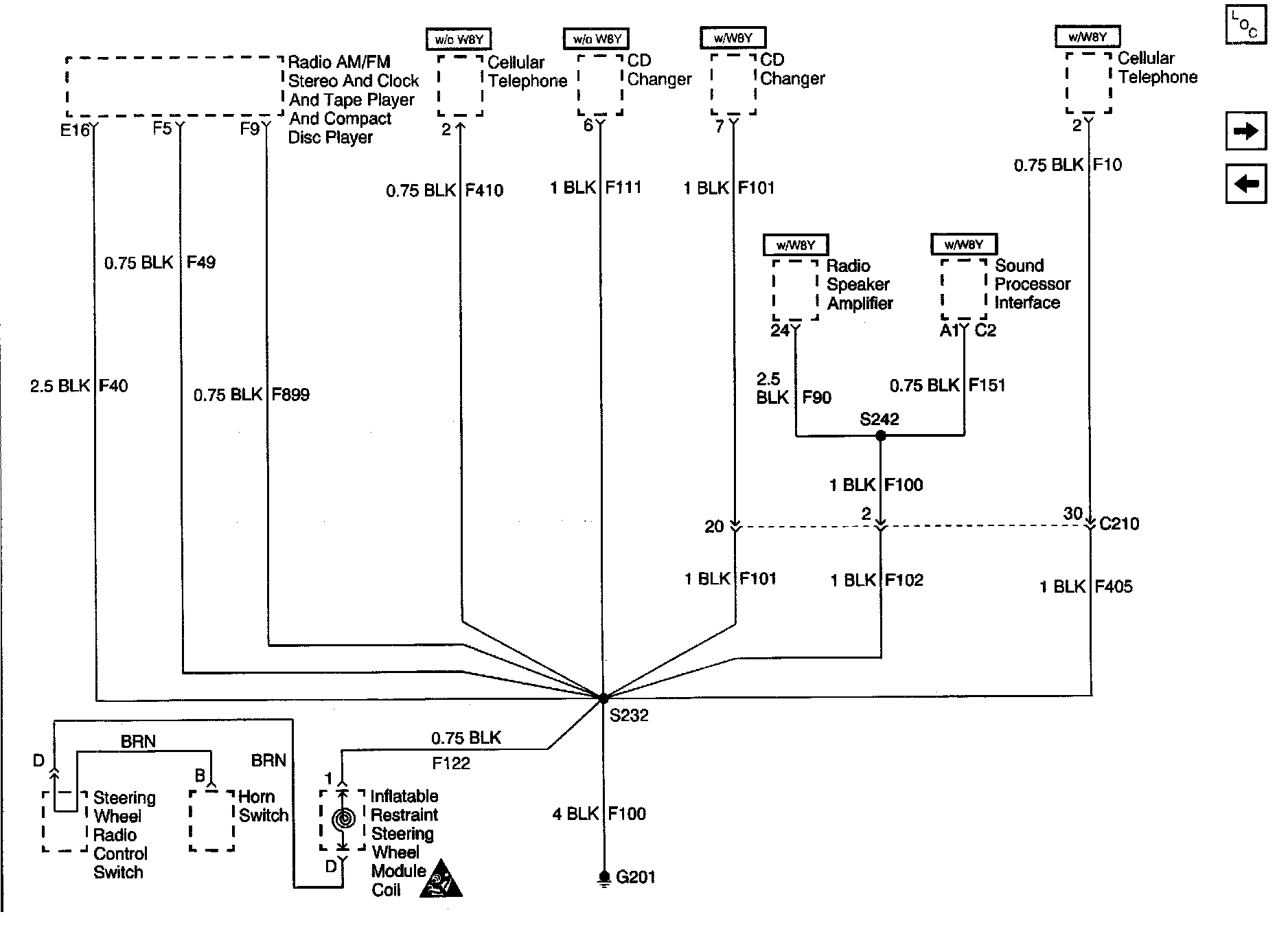

Ground Distribution Schematics: Radio, Cell Phone, CD Changer And Radio Speaker Amplifier:
