Headlamp SW, Gauge Cluster, Horn Relay and Instrument Cluster
Headlamp SW, Gauge Cluster, Horn Relay and Instrument Cluster

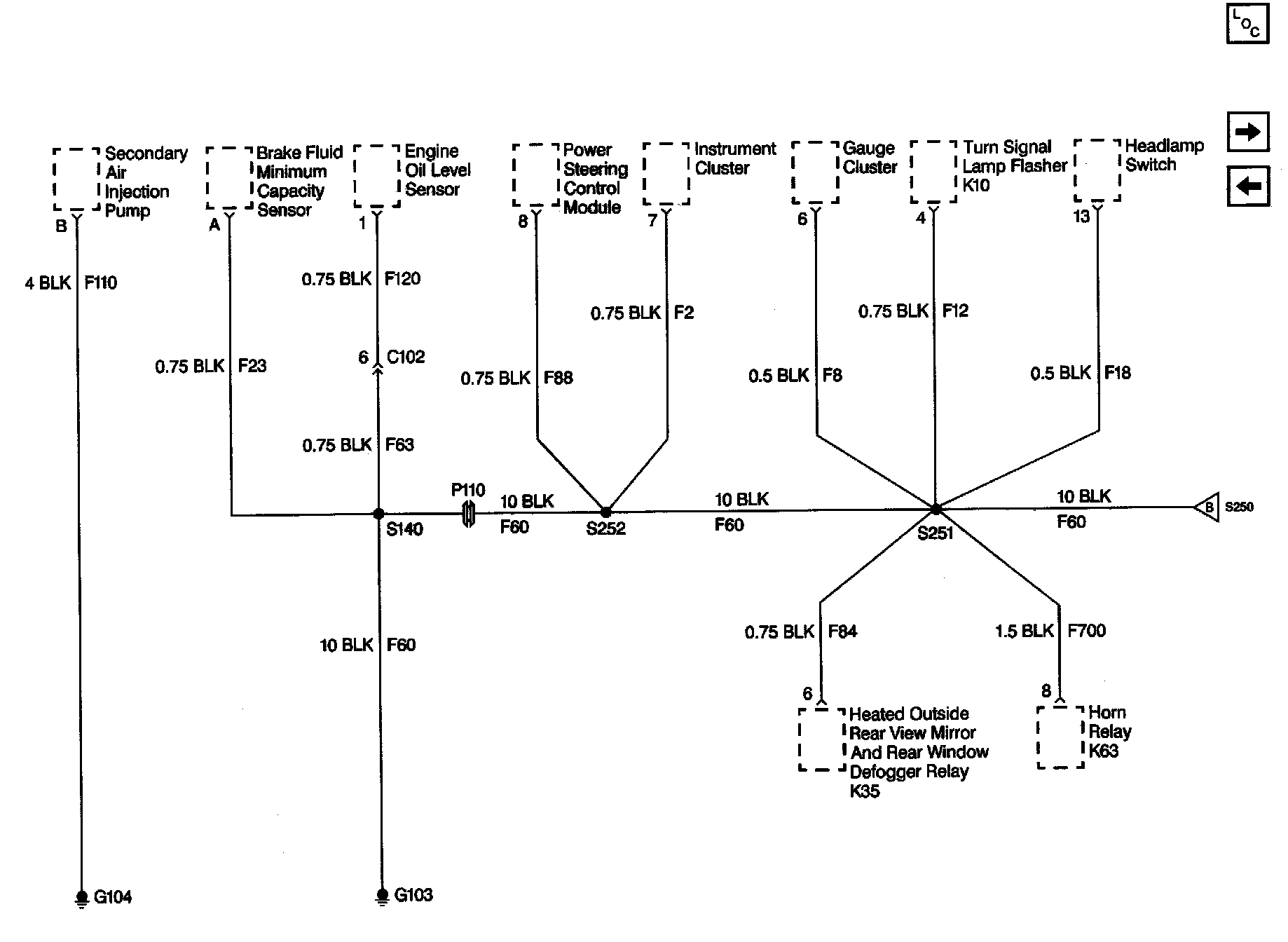

Ground Distribution Schematics: Headlamp Switch, Gauge Cluster, Horn Relay And Instrument Cluster:
