Fuel Pump, Sunshade Motor and Rear Exterior Lamps

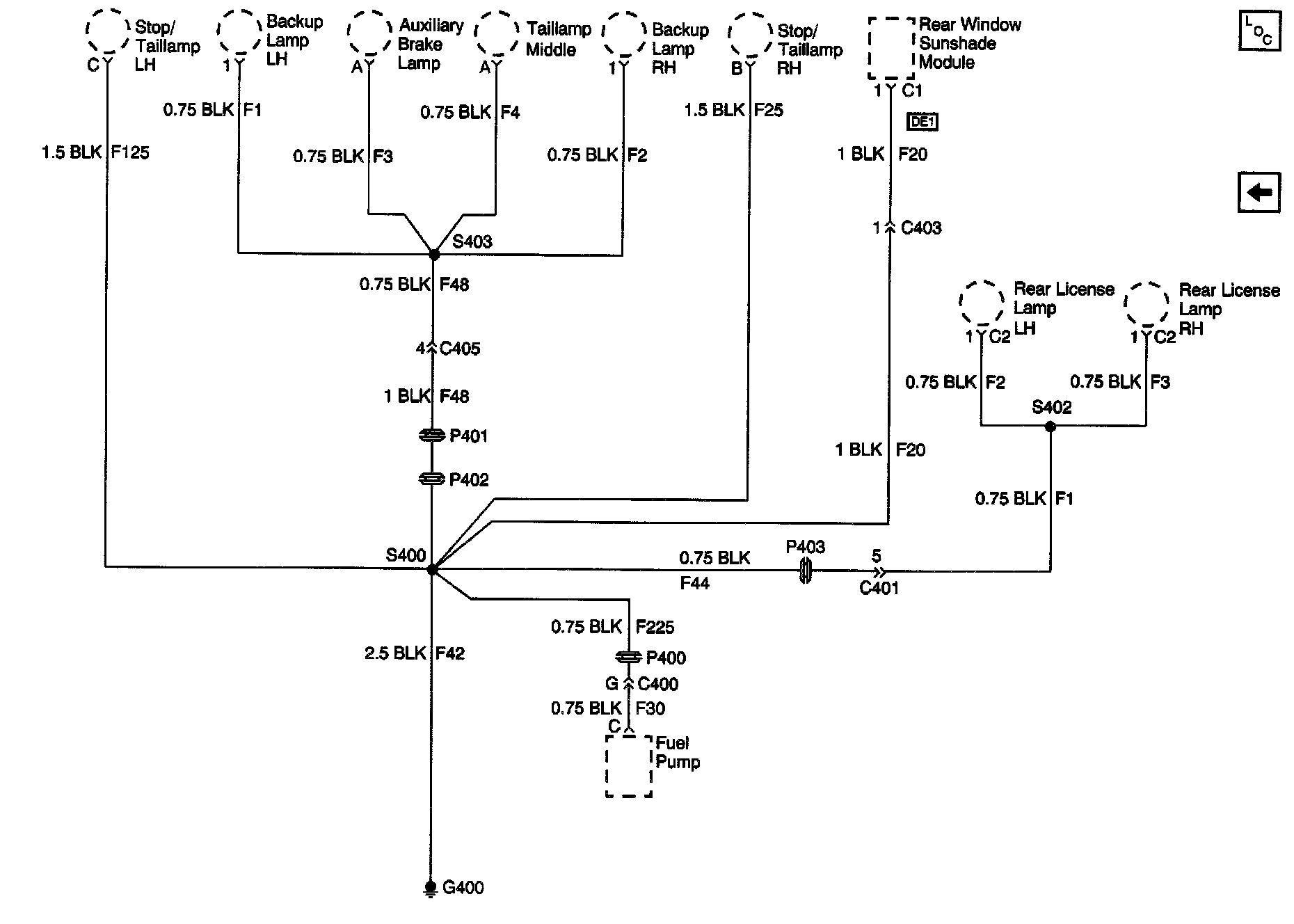

Ground Distribution Schematics: Fuel Pump, Sunshade Motor And Rear Exterior Lamps:
