Front Window Regulator Motors and Front Door Lock Switches

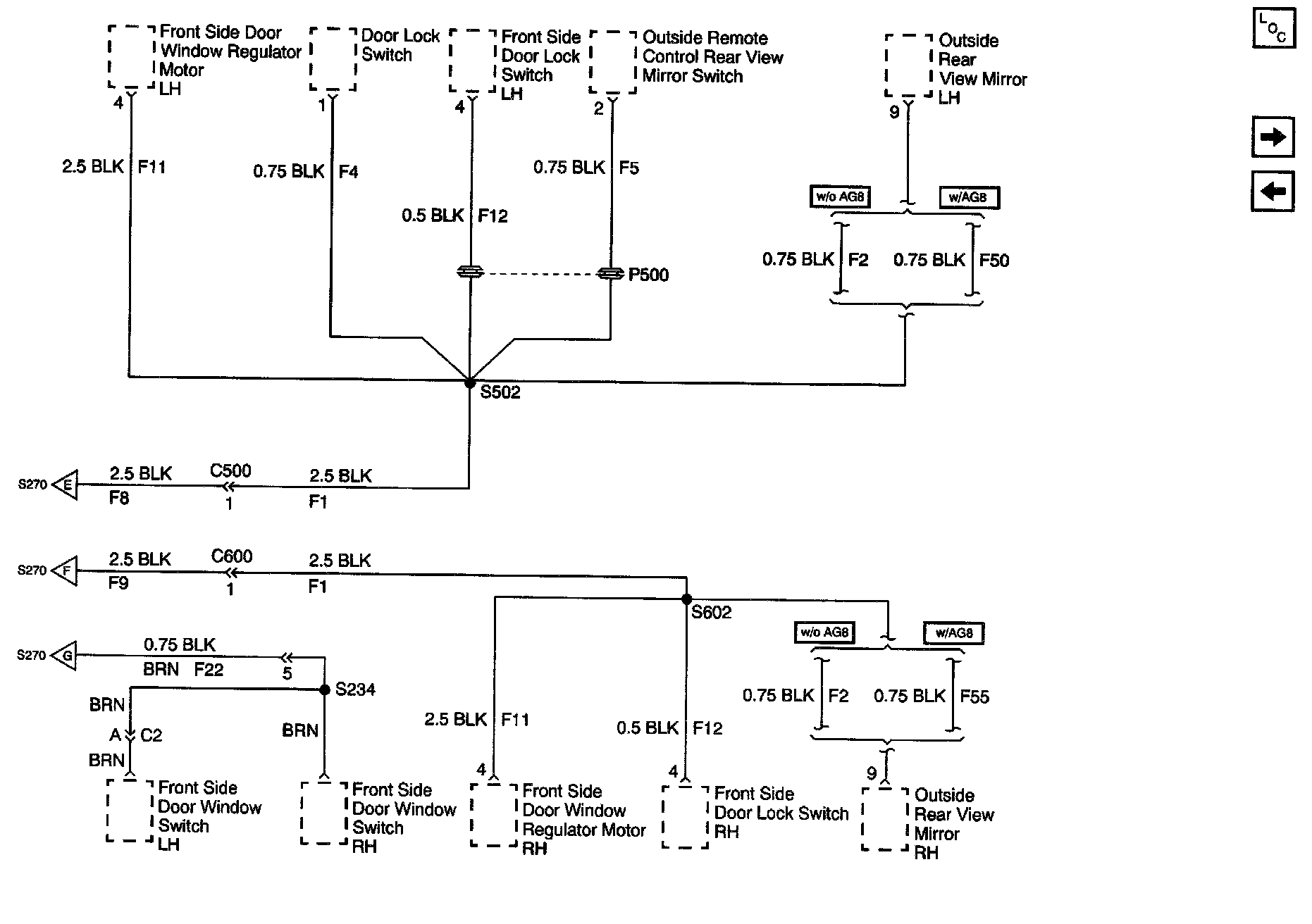

Ground Distribution Schematics: Front Window Regulator Motors And Front Door Lock Switches:
