Sound Processor Interface & Radio Speaker Amplifier

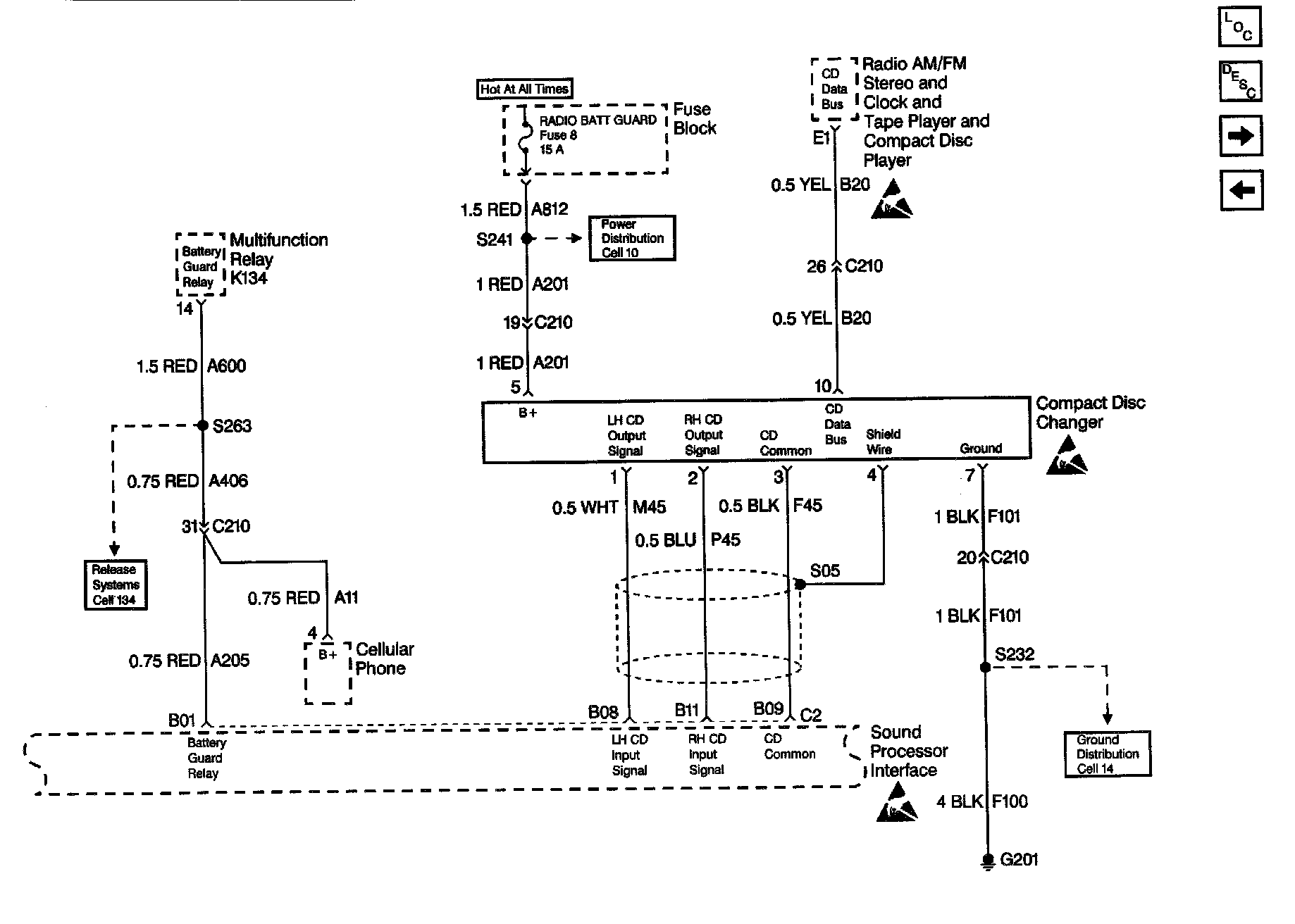

Radio/Audio System Schematics: Sound Processor Interface And Radio Speaker Amplifier (Bose(R) System):
