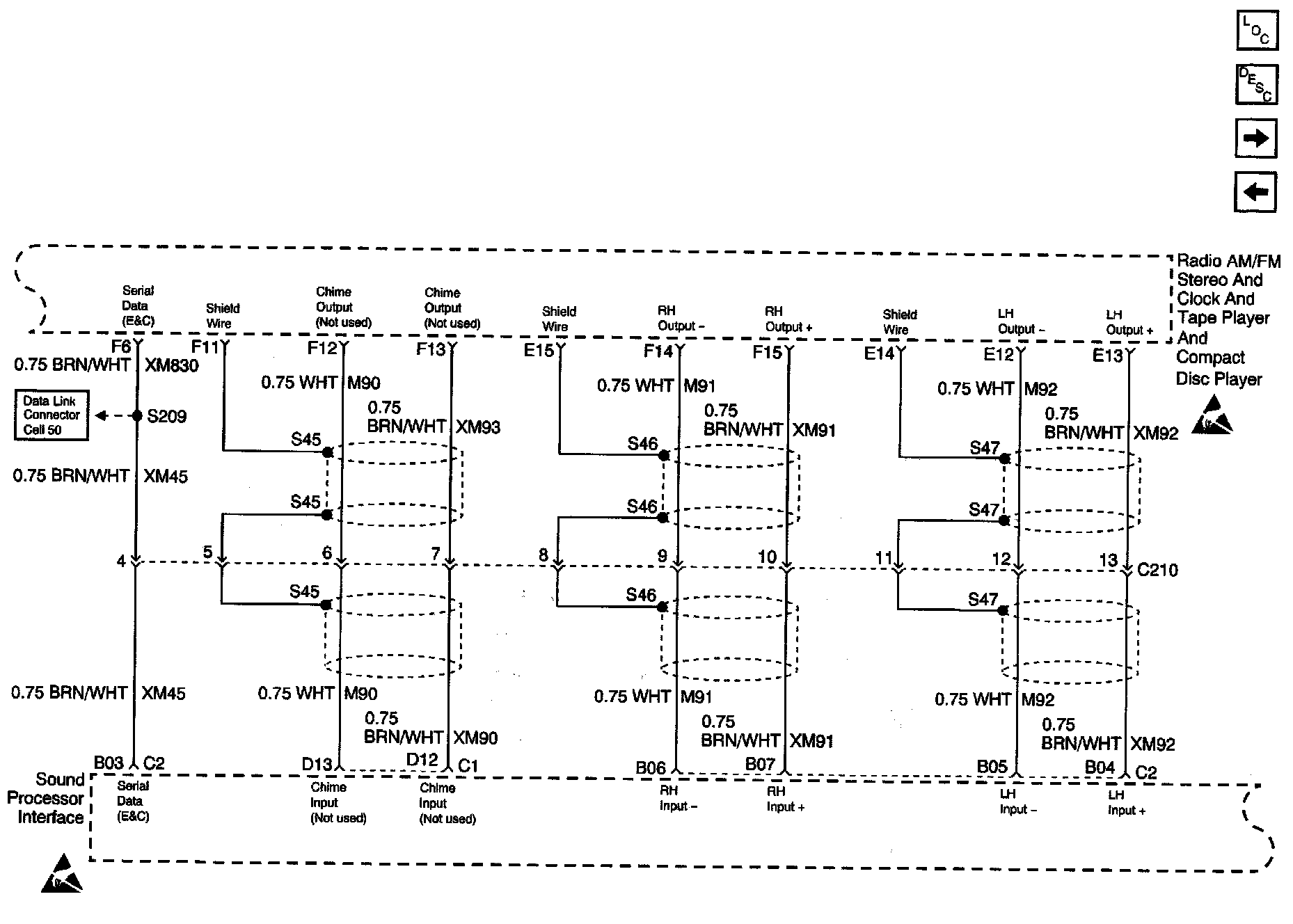

Radio And Sound Processor Interface (Bose(R) System)

Radio/Audio System Schematics: Radio And Sound Processor Interface (Bose(R) System):
