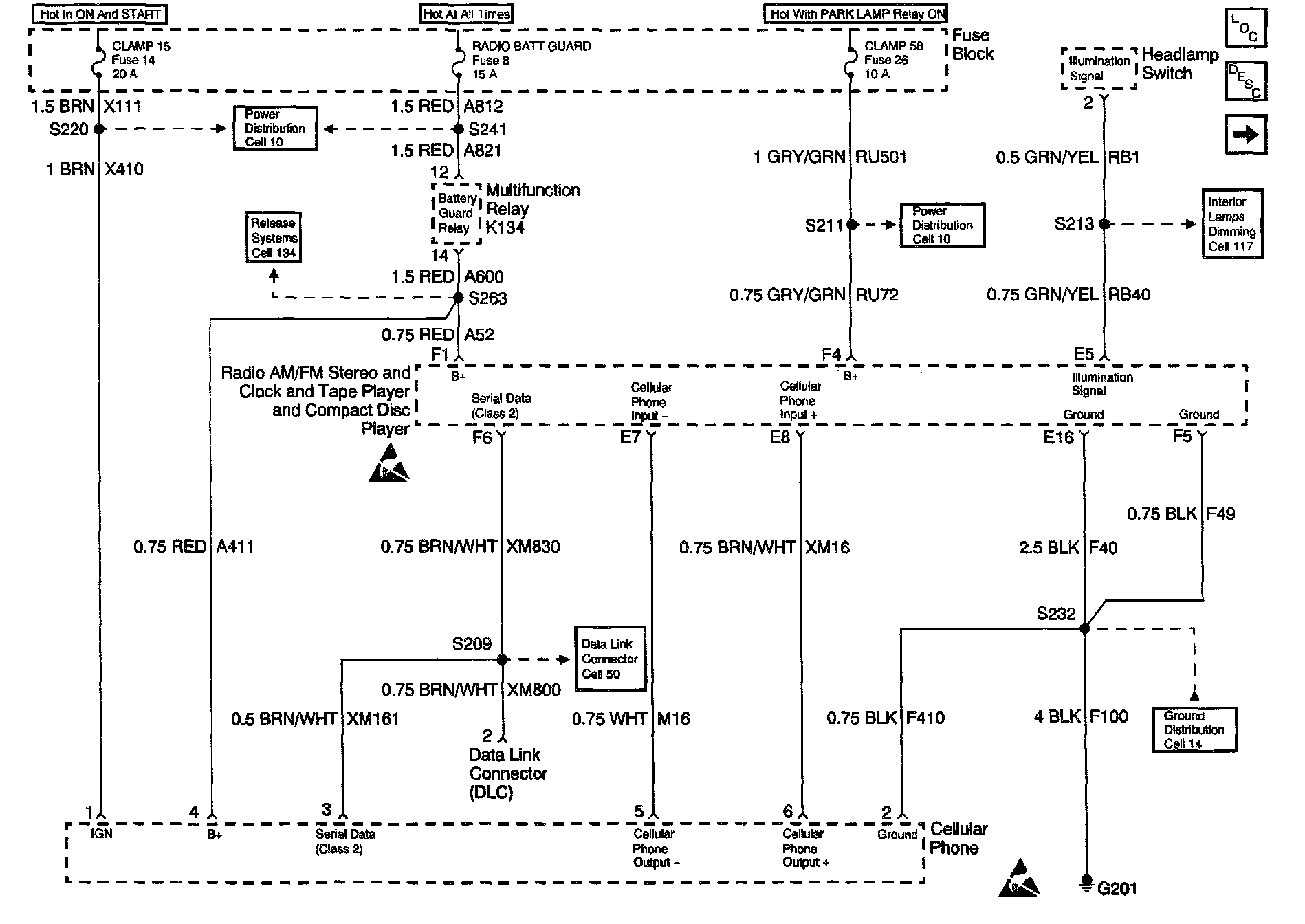

Power and Ground For Radio and Cellular Telephone (Base System)

Radio/Audio System Schematics: Power And Ground For Radio And Cellular Telephone (Base System):
