Power & Ground For Radio & Cellular Telephone (Bose(R) System)
Power & Ground For Radio & Cellular Telephone (Bose(R) System)

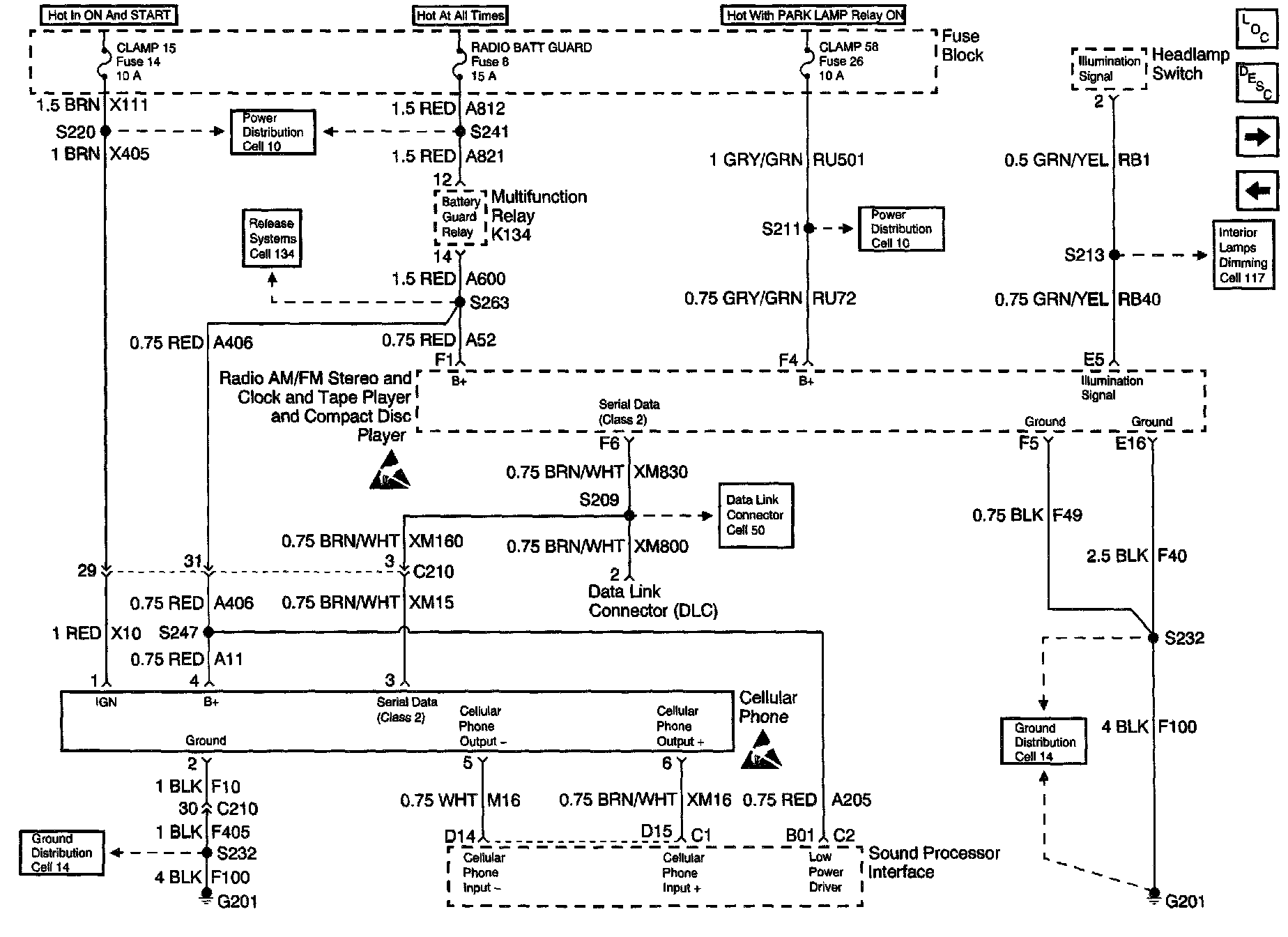

Radio/Audio System Schematics: Power And Ground For Radio And Cellular Telephone (Bose(R) System):
