Sun Roof Actuator, TCM, ECM and Instrument Cluster
Sun Roof Actuator, TCM, ECM and Instrument Cluster

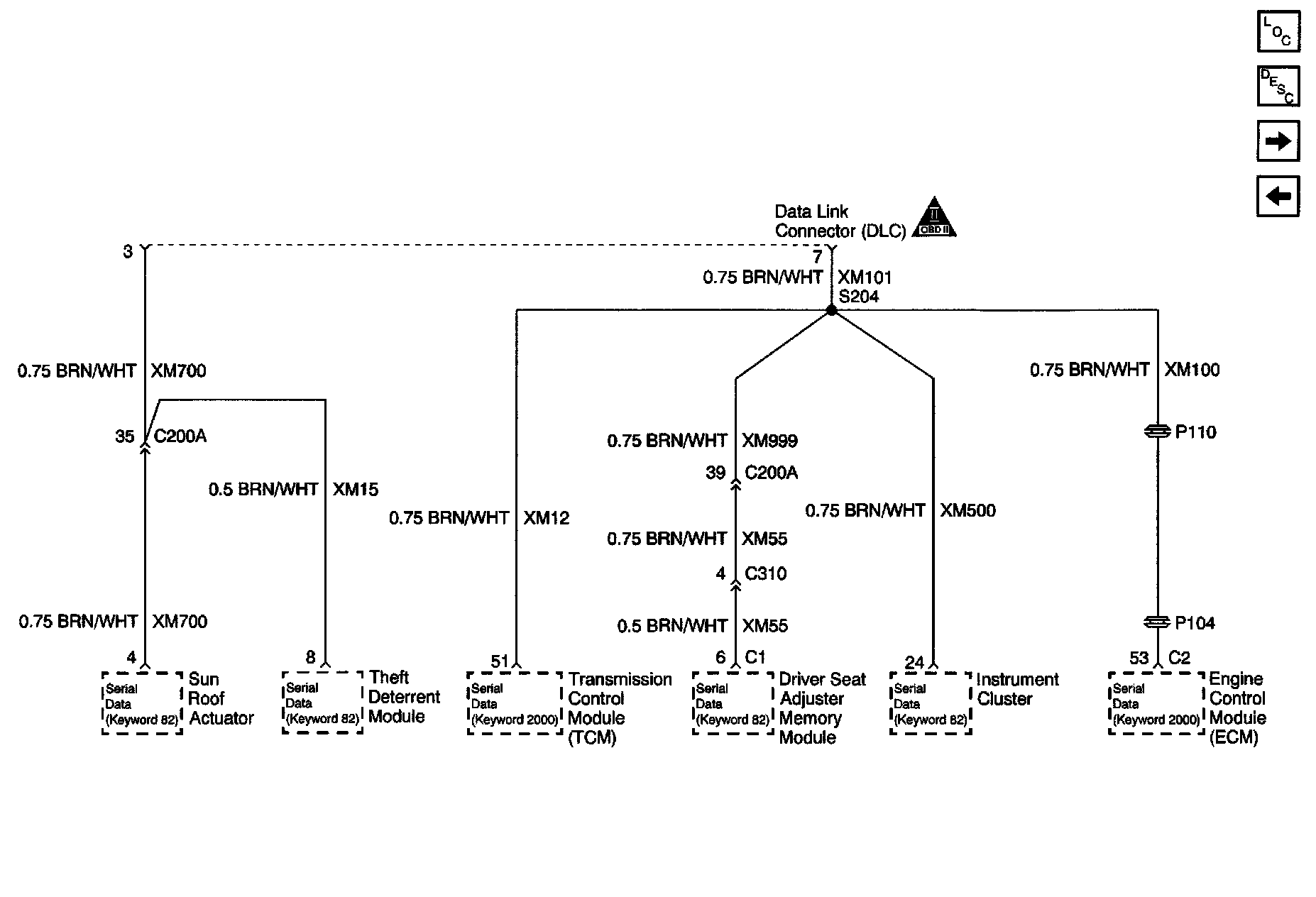

Data Link Connector (DLC) Schematics: Sun Roof Actuator, TCM, ECM And Instrument Cluster:
