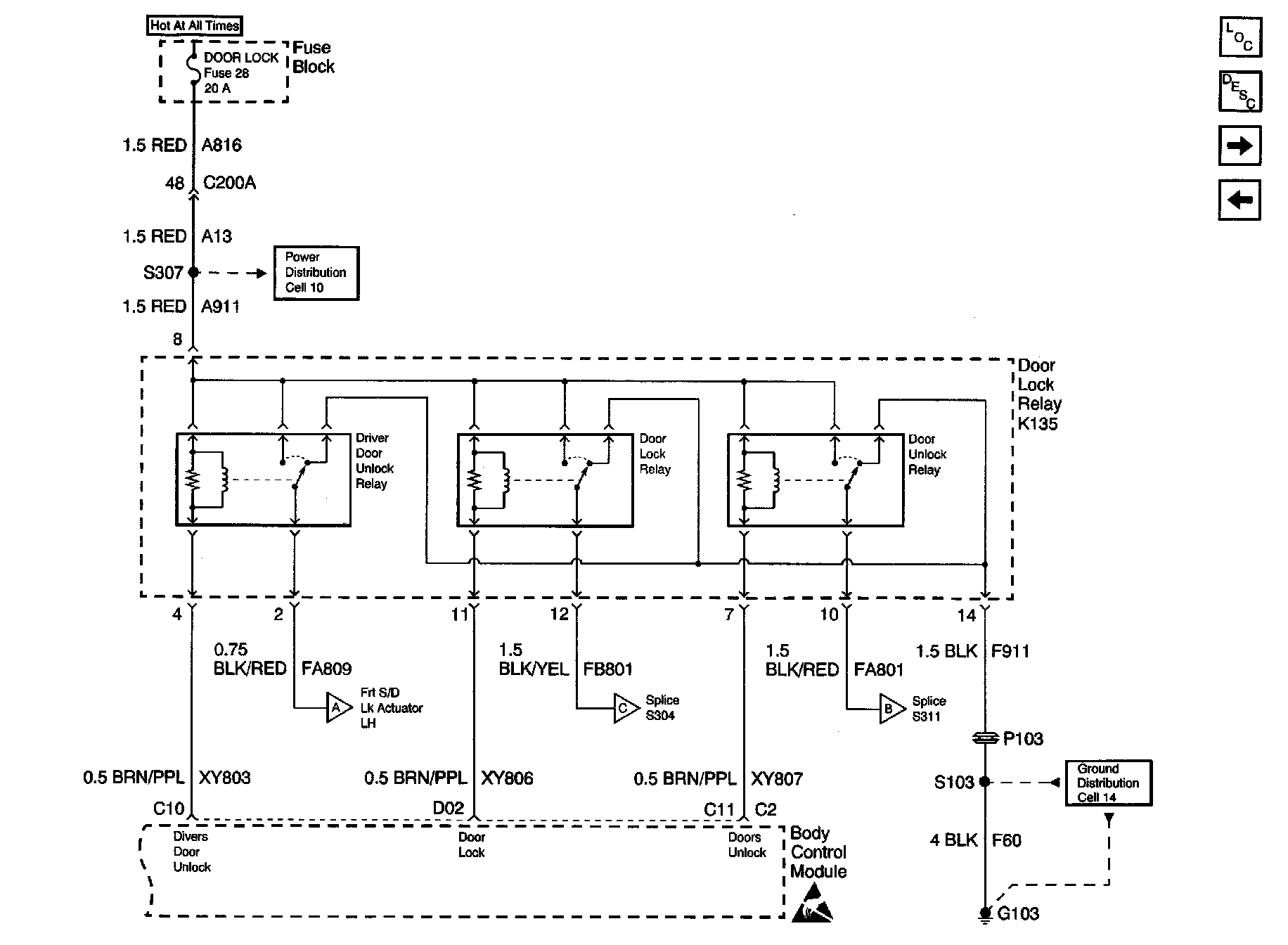

Fuse Block, BCM & Door Lock Relay K135

Door Lock/Indicator Schematics (Power Door Lock Schematics): Fuse Block, BCM & Door Lock Relay K135:
