Headlights
>>
Fuse Block, BCM, Headlamps and Park/Turn Signal Lamps
Fuse Block, BCM, Headlamps and Park/Turn Signal Lamps

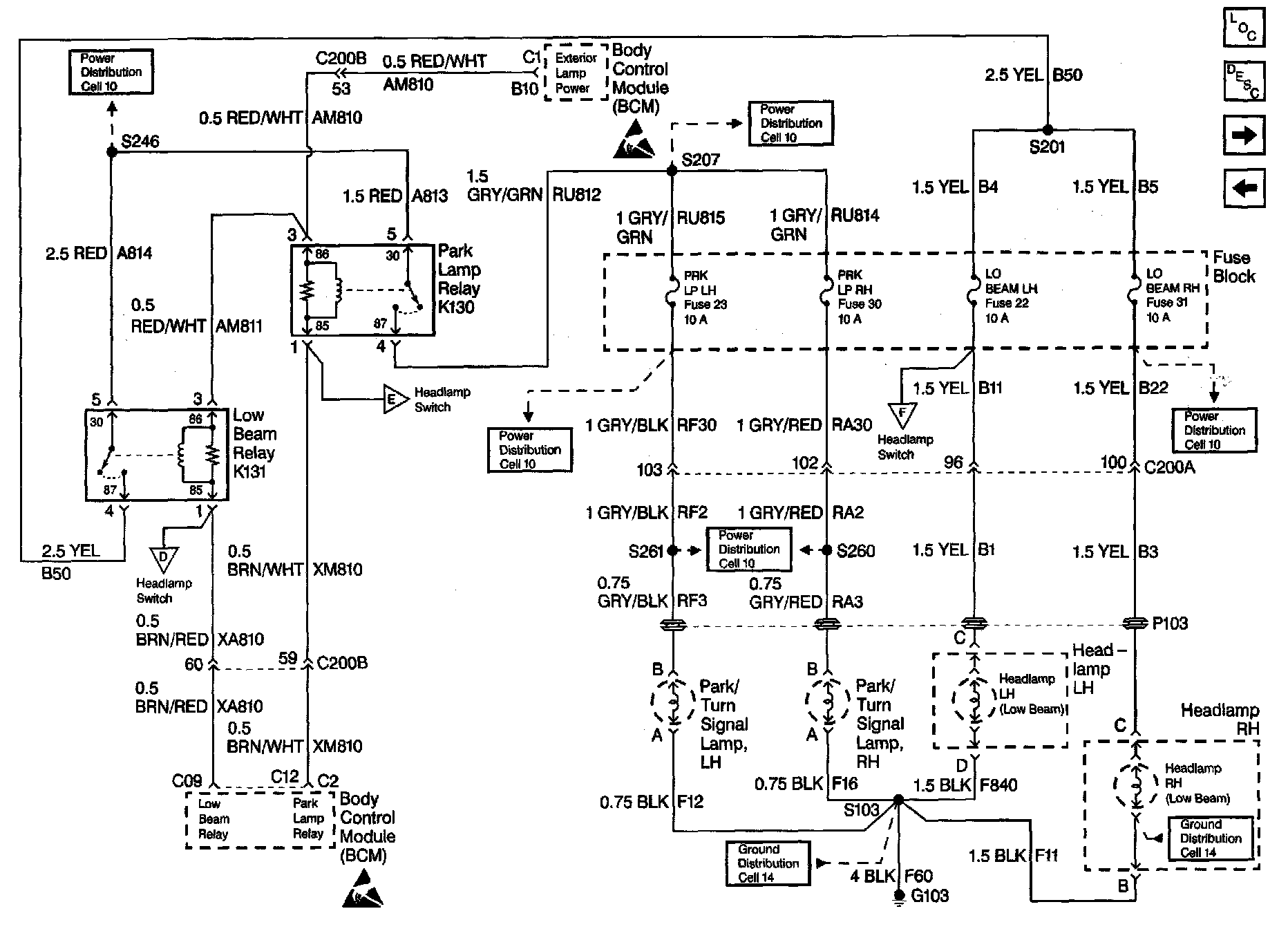

Headlights/Daytime Running Lights (DRL) Schematics: Fuse Block, BCM, Headlamps And Park/Turn Signal Lamps:
