Fog Lights

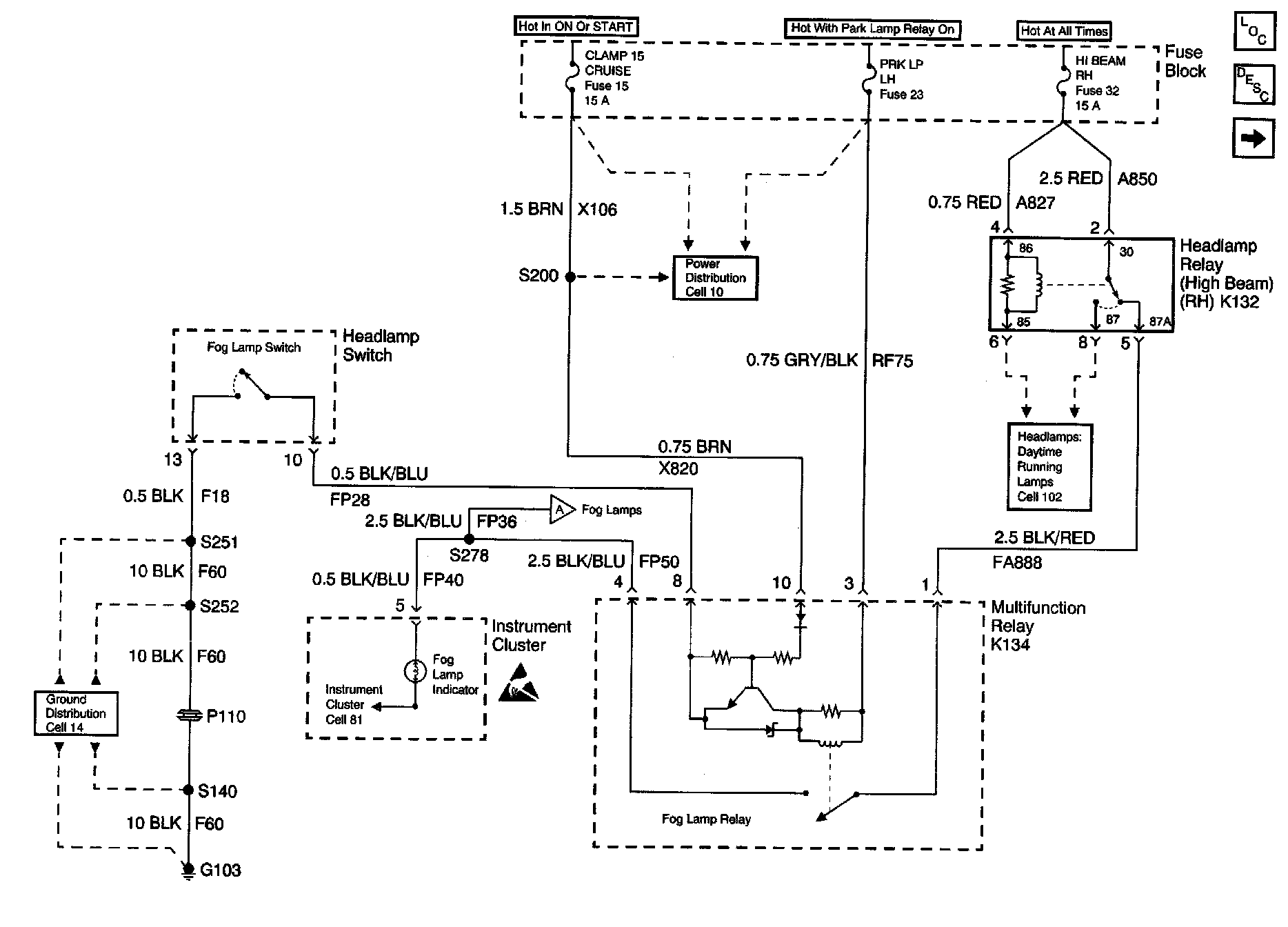

Fog Lights Schematics: Fog Lamp Switch And Malfunction Relay K134:



Fog Lamp Schematics: LH And RH Fog Lamps:
