LH and RH Air Duct Temperature Sensors

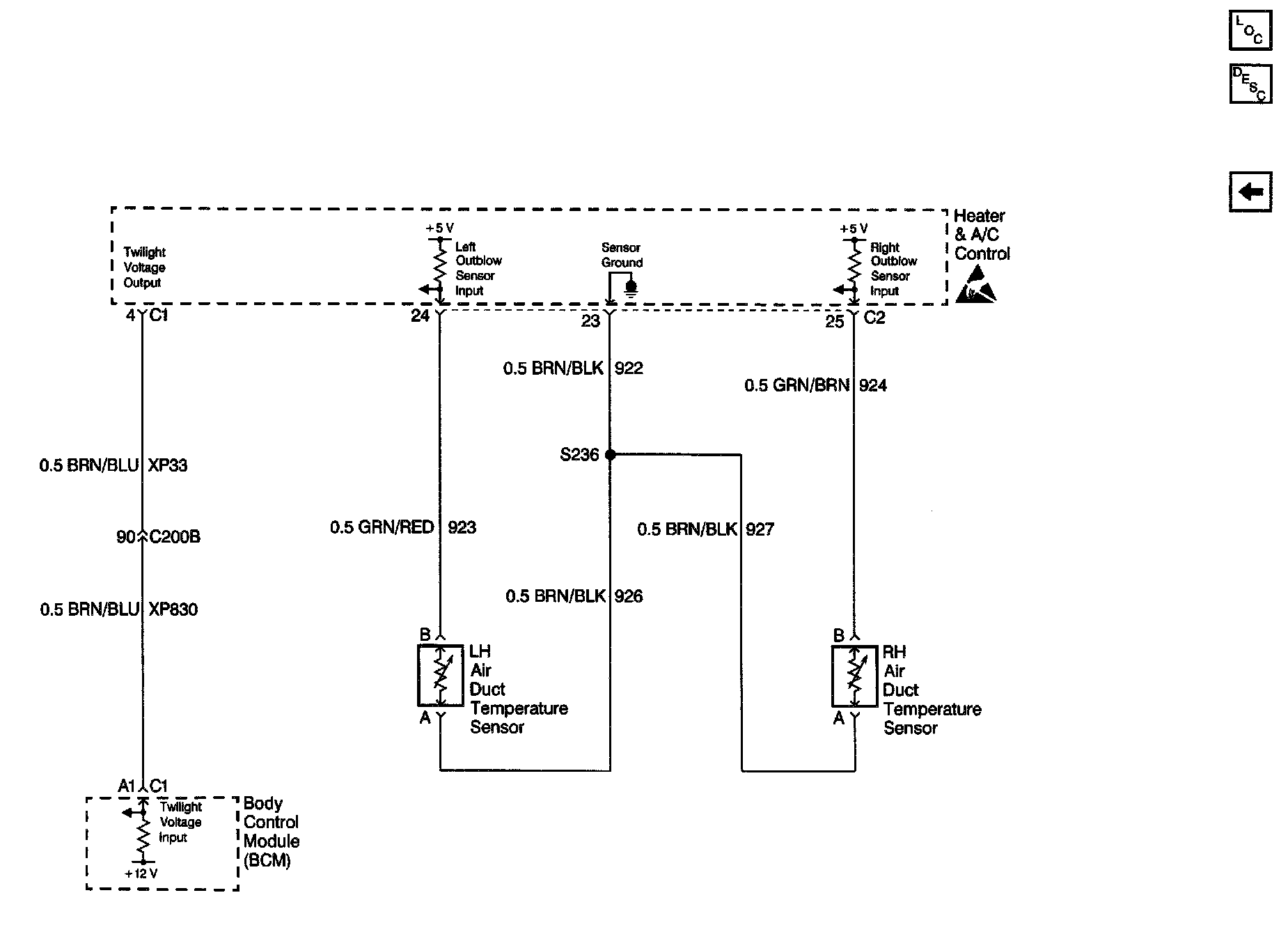

HVAC Air Delivery/Temperature Control Schematics: LH And RH Air Duct Temp Sensors:
