Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> HVAC Air Delivery/Temperature Control Schematics >> Ambient Light and Temperature Sensors

Ambient Light and Temperature Sensors

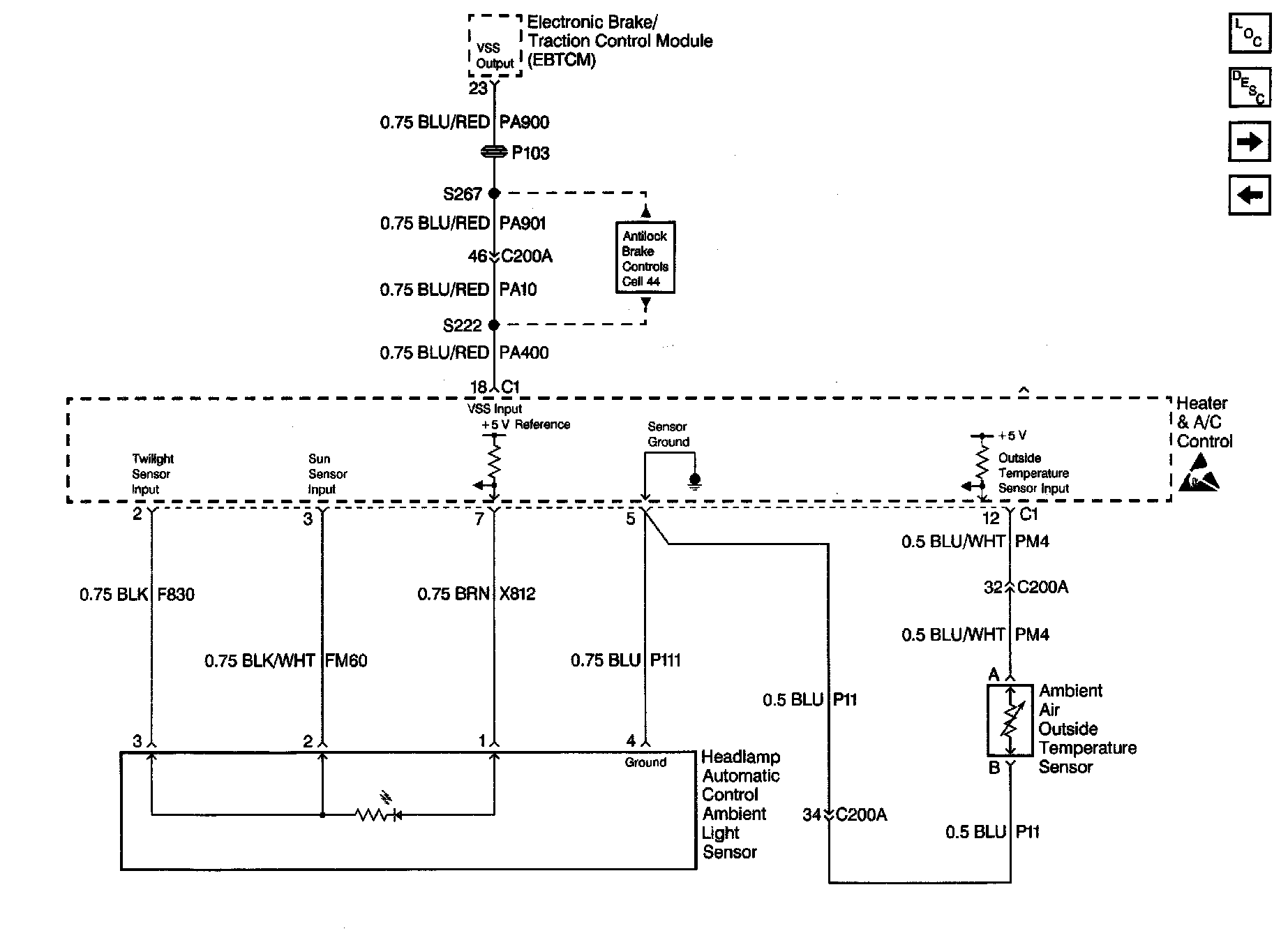

HVAC Air Delivery/Temperature Control Schematics: Ambient Light And Temperature Sensors:
