Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone >> Cellular Telephone Schematics >> Cellular Telephone (Bose(R) System)

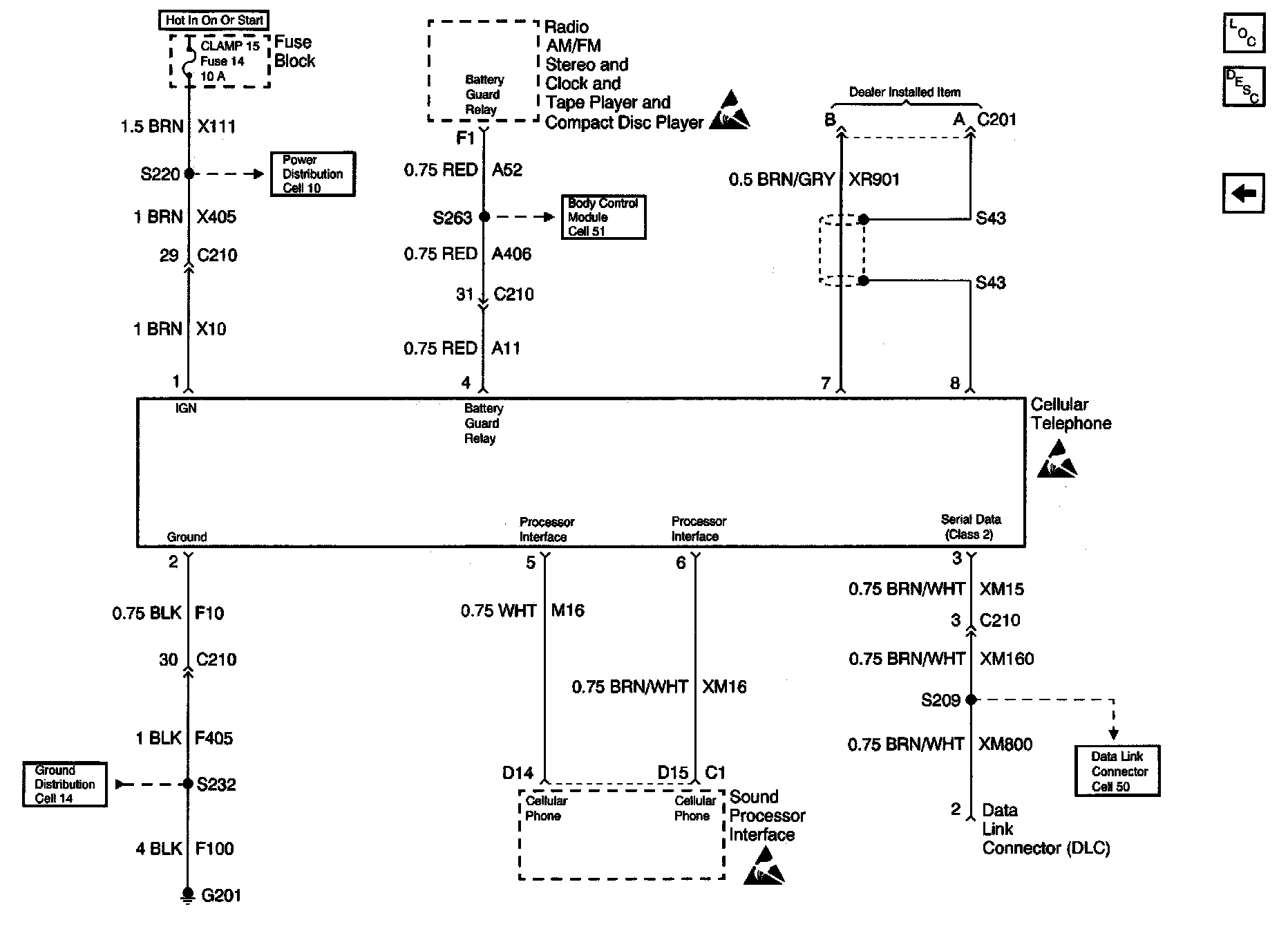

Cellular Telephone (Bose(R) System)

Cellular Telephone Schematics: Cellular Telephone (Bose(R) System):
