Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> CTDS Power, Ground And Security Indicator

CTDS Power, Ground And Security Indicator

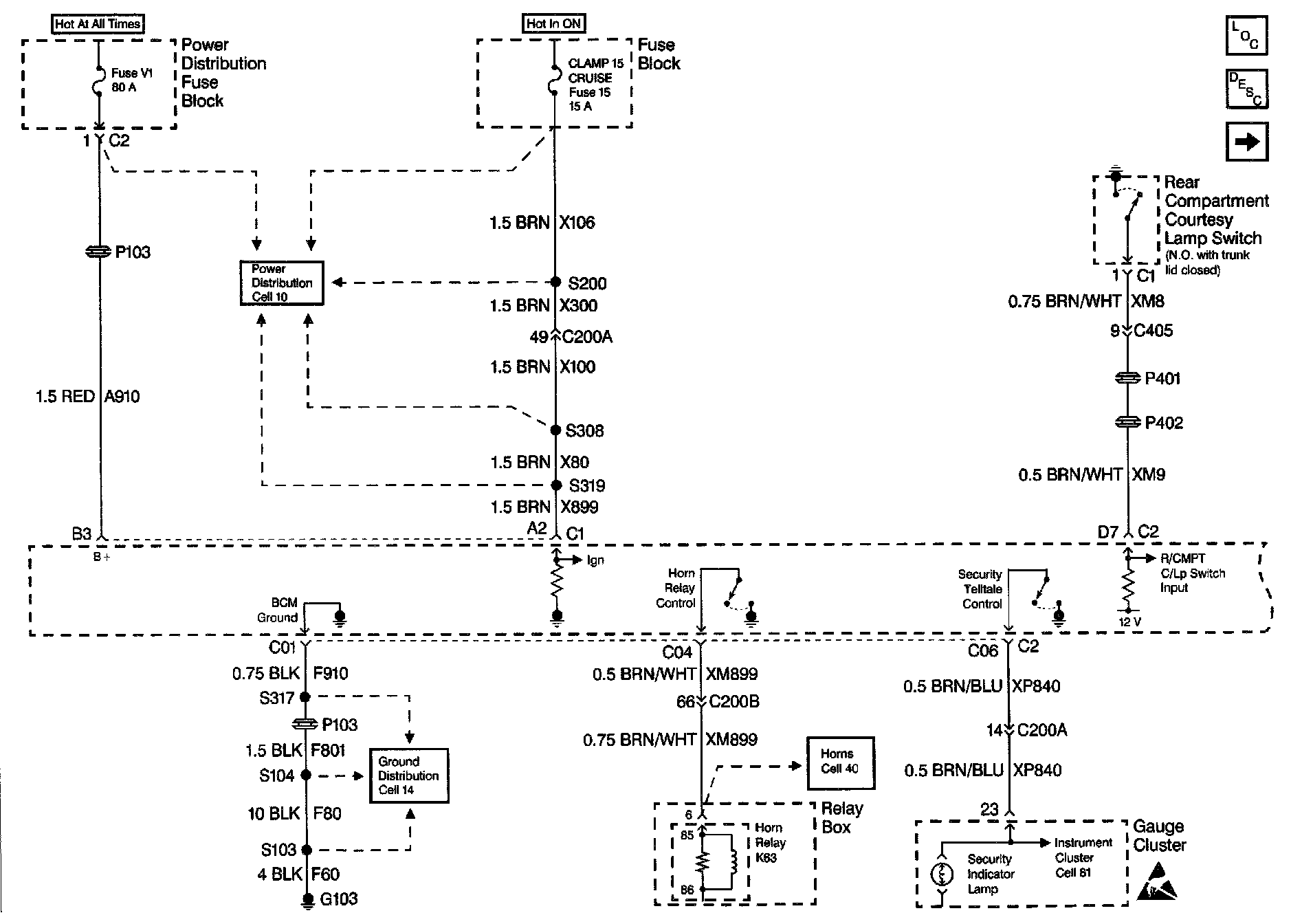

Theft Deterrent System Schematics: CTDS Power, Ground And Security Indicator:
