Home >> Cadillac >> 1999 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Cellular Telephone (Base System)

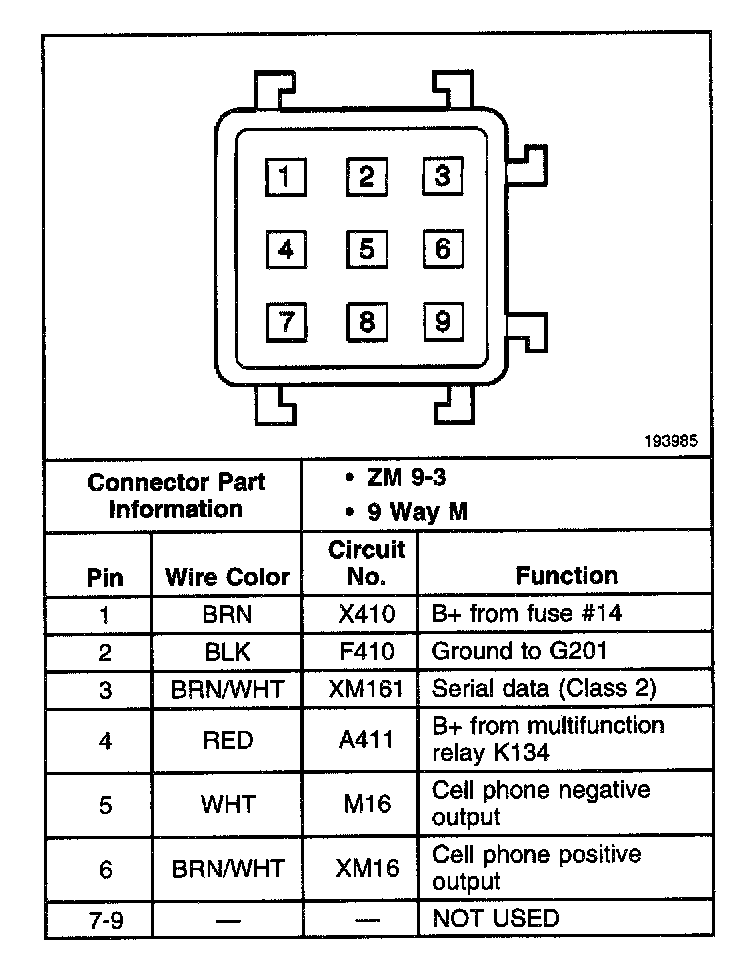

Cellular Telephone (Base System)

Cellular Telephone (Base System):
