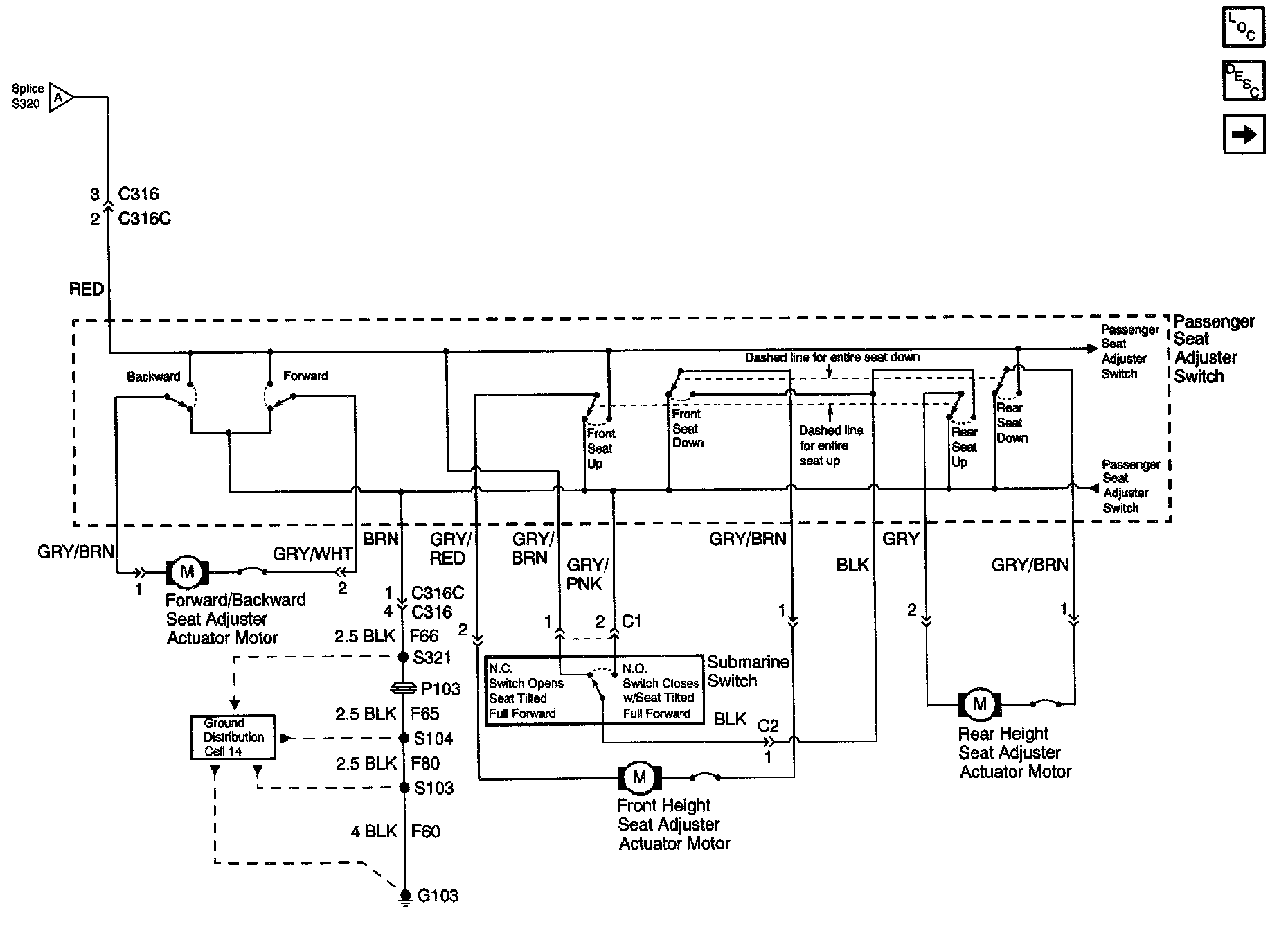

Passenger Seat Adjuster Switch And Motors Without Memory

Power Seats Schematics: Passenger Seat Adjuster Switch And Motors Without Memory:
