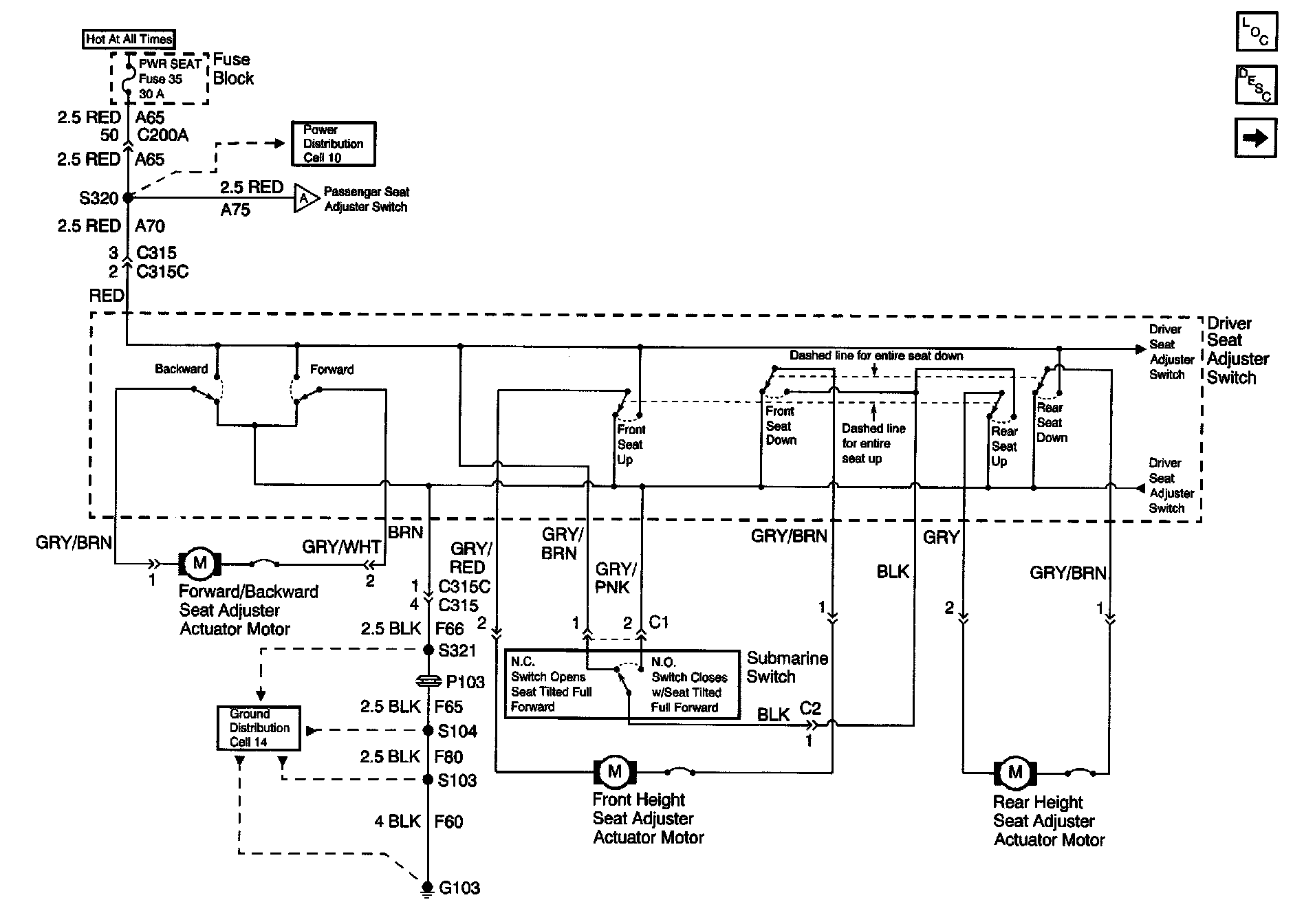

Driver Seat Adjuster Switch And Motors Without Memory

Power Seats Schematics: Driver Seat Adjuster Switch And Motors Without Memory:
