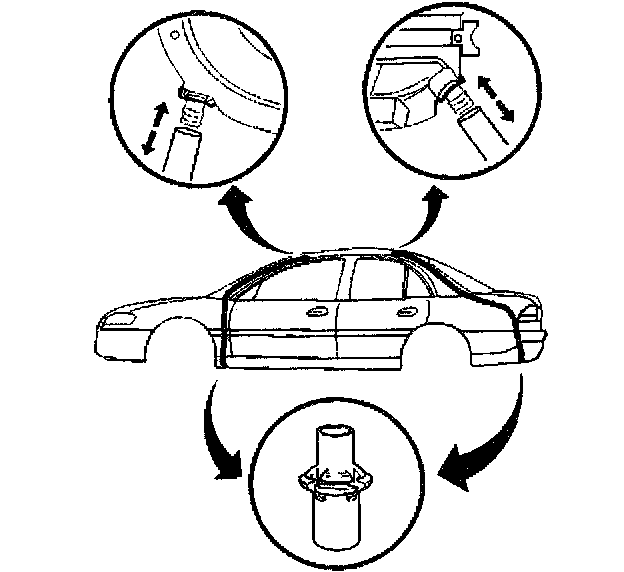

Drain Channel Inspection And Cleaning

Drain hoses are pushed on and not clamped or cemented. Use caution when cleaning the channel and hose not to disconnected from the channel while cleaning.

1. Slide the sunscreen all the way rearward.
2. Place the glass panel to the fully open position, so that the front drain channels are in full view.
3. Inspect and clean the front right and left drain channels.
4. To access the rear drain channels, remove the sunroof actuator.
