FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Cadillac
>>
1999
>>
Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Body and Frame
>>
Relays and Modules - Body and Frame
>>
Seat Temperature Relay
>>
Diagrams
>>
Driver Seat Heater Relay K55
Driver Seat Heater Relay K55

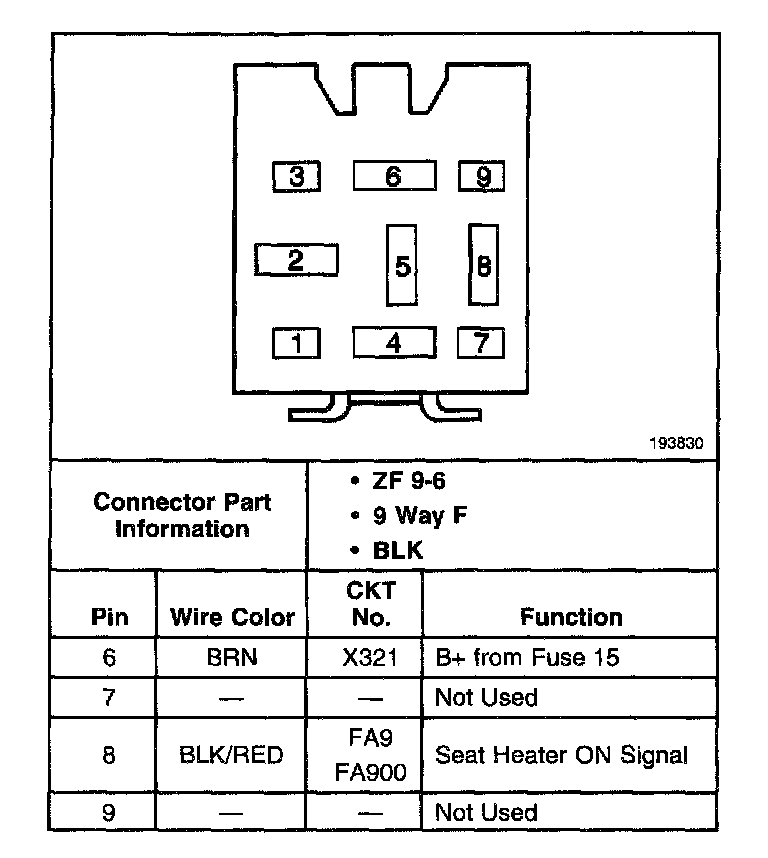

Driver Seat Heater Relay K55 (Part 2 Of 2):

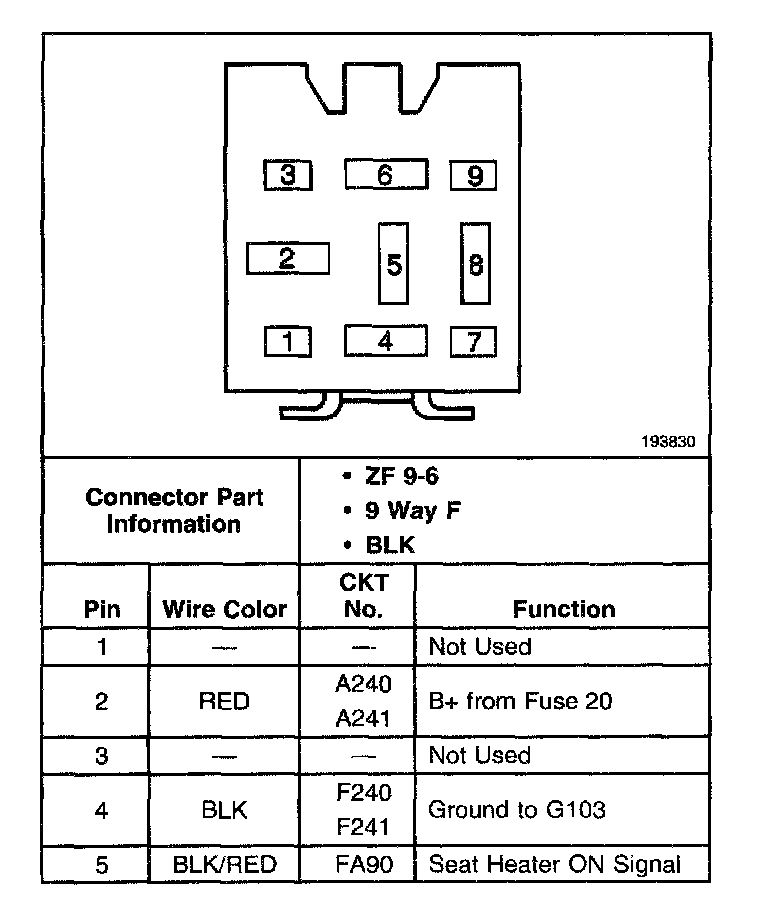

Driver Seat Heater Relay K55 (Part 1 Of 2):
