Driver Seat Module & Outside Remote Control Rear View Mirror SW

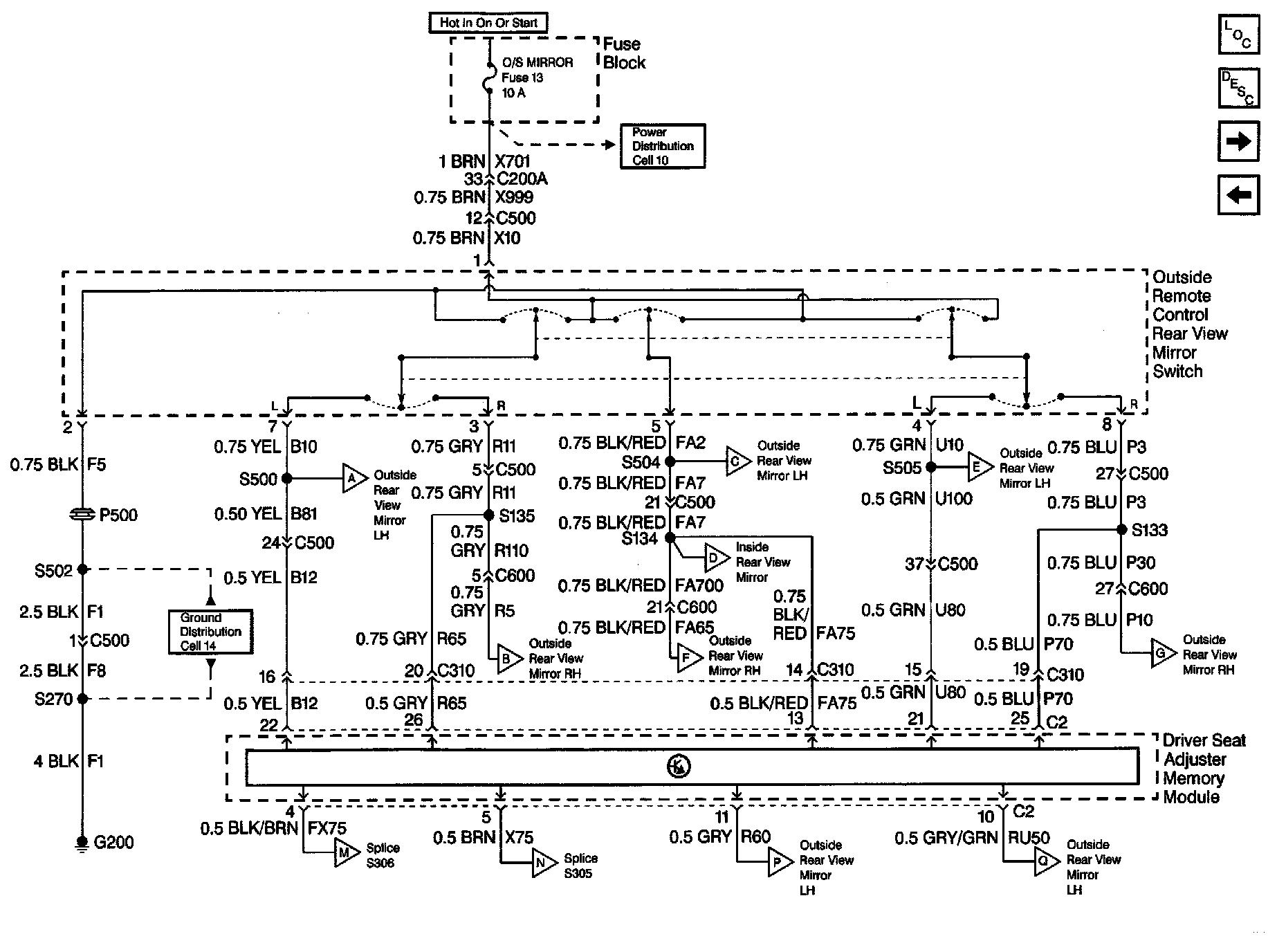

Outside Mirror Schematics: Driver Seat Module & Outside Remote Control Rear View Mirror Switch:
