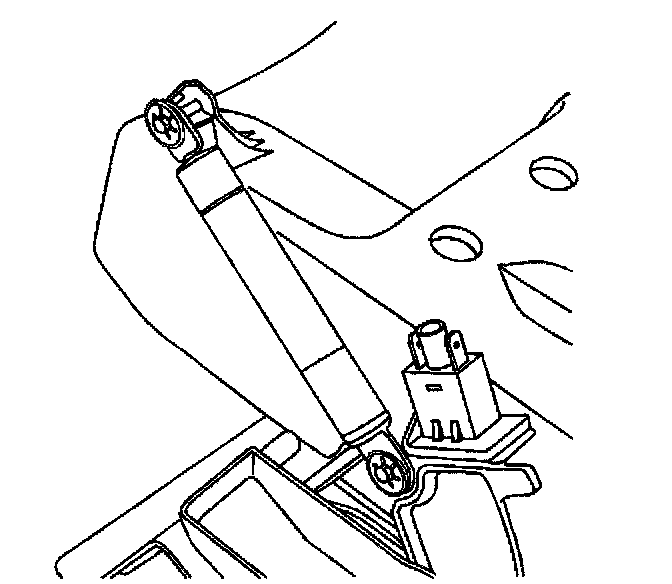

Instrument Panel Storage Compartment - Strut Replacement

REMOVAL PROCEDURE
1. Remove the instrument panel (IP) compartment.
2. Remove the retainers from the IP compartment strut.
3. Remove the strut from the IP housing.

INSTALLATION PROCEDURE
1. Install the strut to the IP compartment housing.
2. Install the retainers to the IP compartment strut.
3. Install the IP compartment.
