Closeout/Insulator Panel Replacement - Left

REMOVAL PROCEDURE
1. Remove the knee bolster.

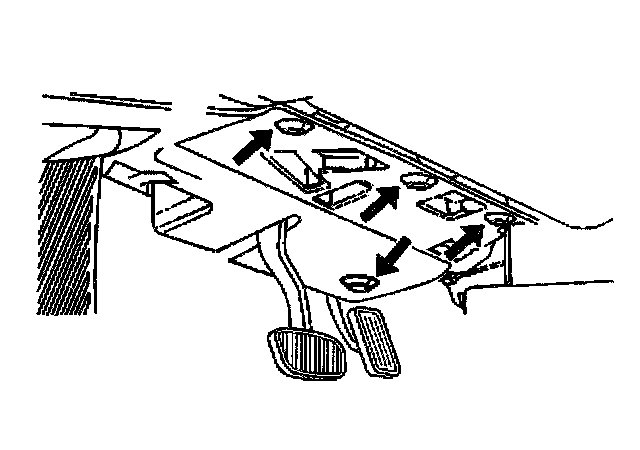

2. Remove the left side sound insulator retainers.
3. Remove the left side sound insulator.

INSTALLATION PROCEDURE
1. Install the left side sound insulator.
2. Install the left side sound insulator retainers.
3. Install the knee bolter.
