Cigar Lighter Replacement - Instrument Panel (I/P)

REPLACEMENT PROCEDURE
1. Remove the cigarette lighter.
1.1. Remove the ashtray.

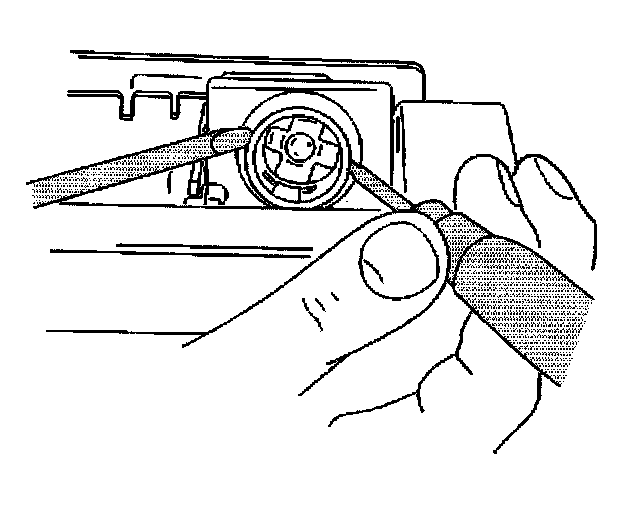

1.2. Remove the cigarette lighter from the ashtray with small flat-bladed tools.
1.3. Remove the wiring connector from the lighter.
2. Install the cigarette lighter.
2.1. Install the wiring connector to the lighter.
2.2. Install the cigarette lighter to ashtray by firmly seating.
2.3. Install the ashtray.
