Front Door Limiter: Service and Repair

REMOVAL PROCEDURE




1. Disable the SIR system if equipped with the SIR side impact system. Refer to Air Bag(s) Arming and Disarming.
2. Remove the front door trim panel.
3. Remove the front door water deflector.
4. Remove the Inflatable restraint side impact sensor mounting plate if equipped.
5. Remove the front door check link to pillar bolt and nut.

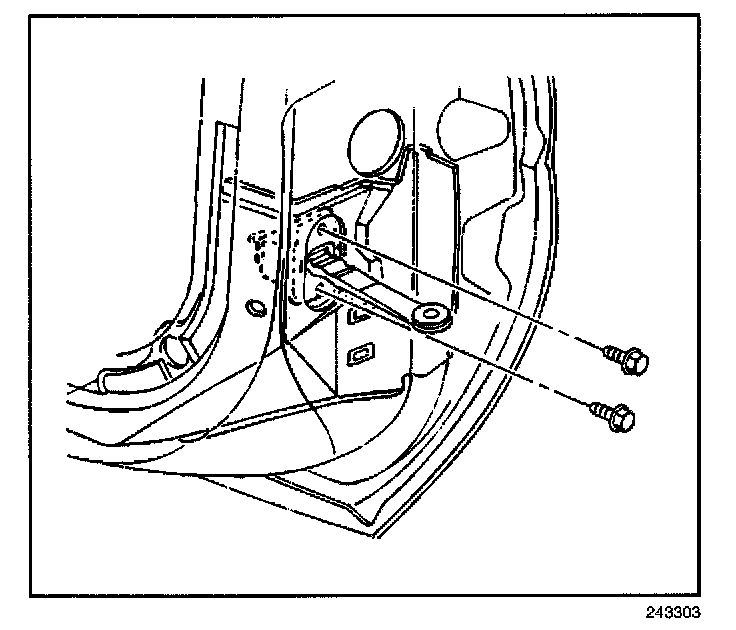

6. Remove the front door check link to inner door bolts.
7. Remove the front door check link from the door.

INSTALLATION PROCEDURE




1. Install the front door check link to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

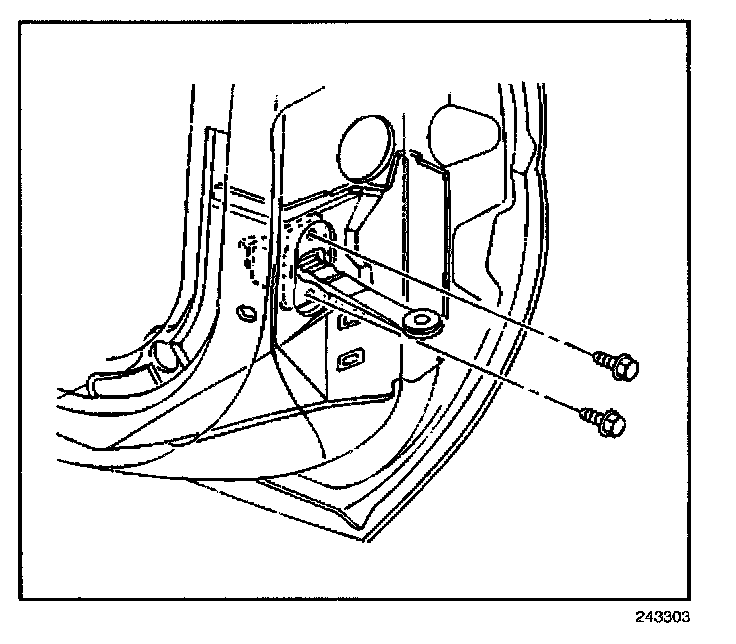

2. Install the front door check link to inner door bolts.

Tighten
Tighten the front door to check link bolt 5 N.m 45 (lb in).





3. Install the front door check link to pillar nut and bolt.

Tighten
Tighten the front door check link to pillar nut and bolt to 5 N.m 45 (lb in).

4. Install the Inflatable restraint side impact sensor mounting plate if equipped.
5. Install the front door water deflector.
6. Install the front door trim panel.
7. Enable the SIR system if equipped with the SIR side impact system. Refer to Air Bag(s) Arming and Disarming.
