DR LK Relay, BCM, Fuel Tank Filler DR LK Actuator
DR LK Relay, BCM, Fuel Tank Filler DR LK Actuator

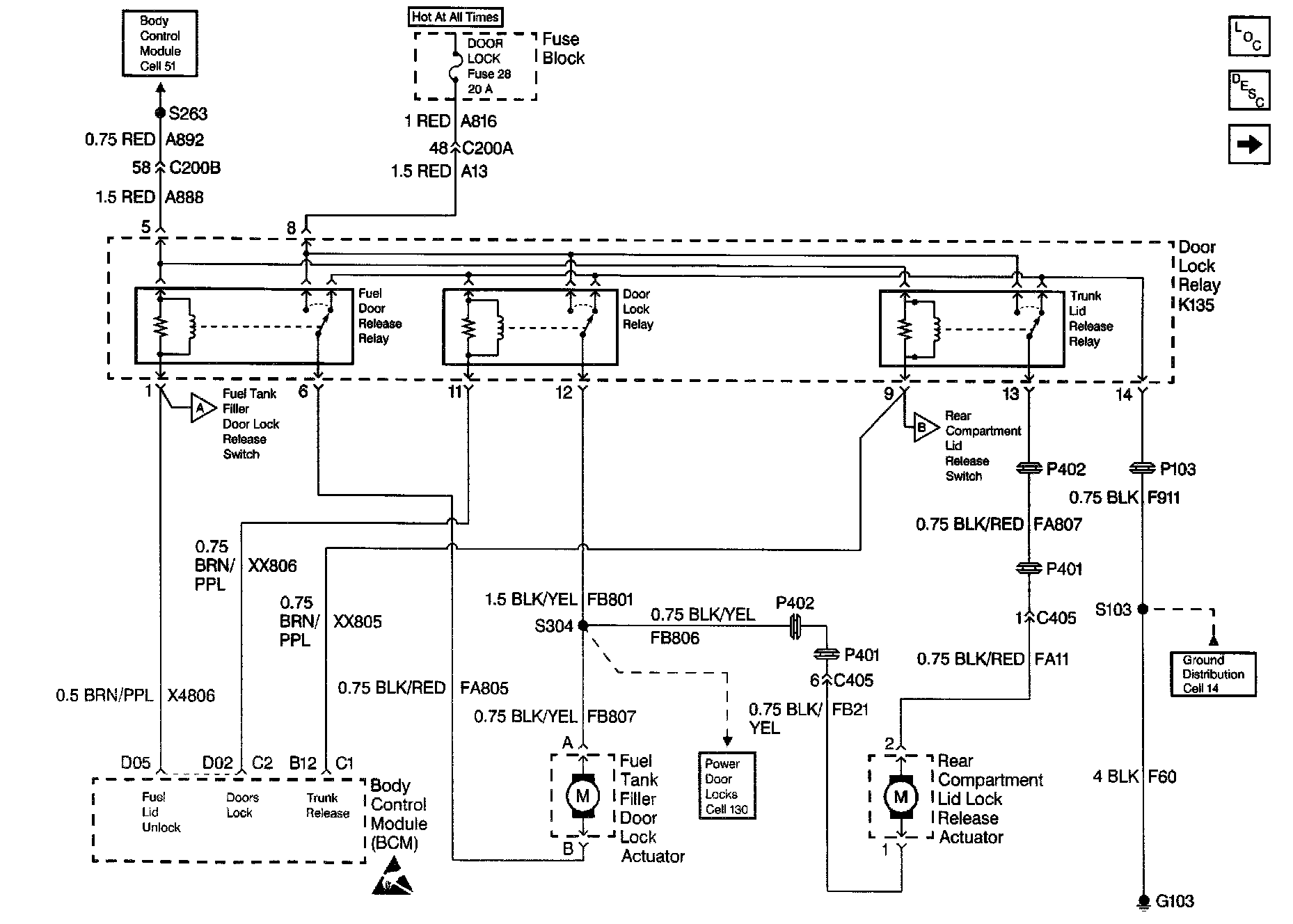

Release Systems Schematics: Door Lock Relay, BCM, Fuel Tank Filler Door Lock Actuator, Rear Compartment Actuator:
