Power, Ground, RCDLR, Door Lock Relay and BCM
Power, Ground, RCDLR, Door Lock Relay and BCM

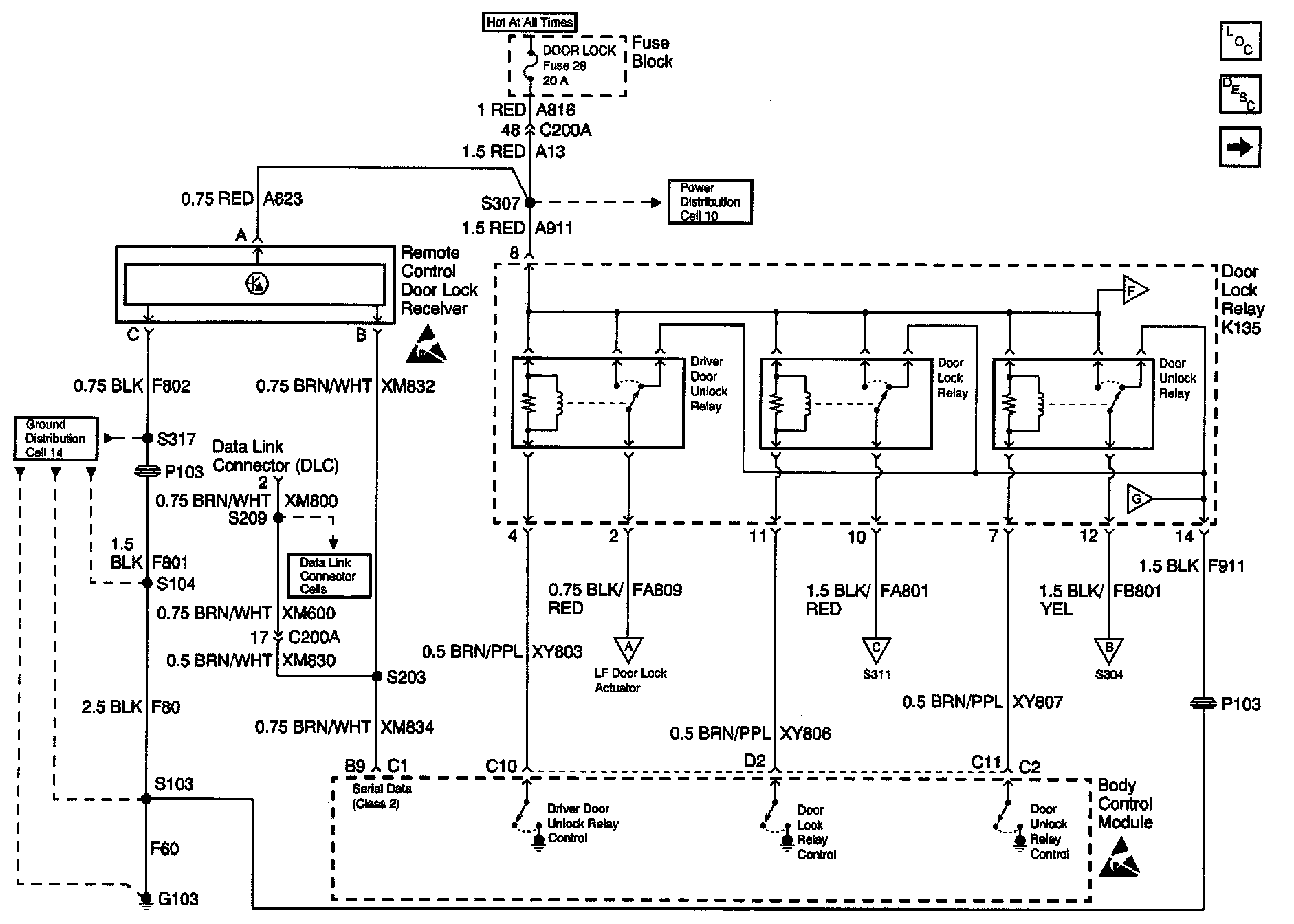

Keyless Entry Schematics: Power, Ground, RCDLR, Door Lock Relay And BCM:
