Security Lamp

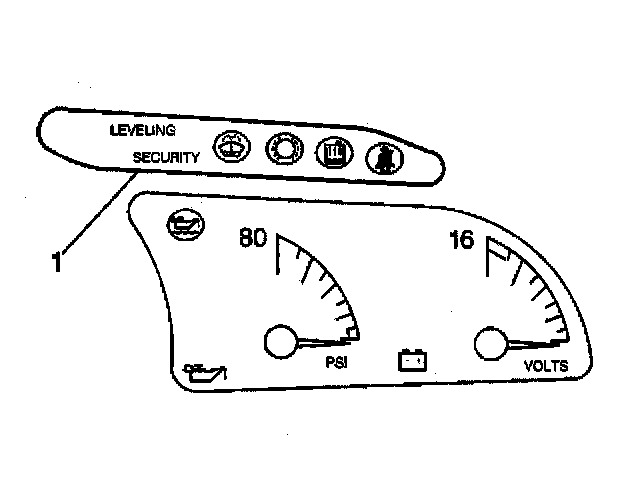

The SECURITY lamp (1) circuit is an indicator lamp output. The lamp illuminates under various operating conditions. For example, the lamp illuminates during the 5 second bulb test at key on. The SECURITY indicator lamp illuminates solid for 30 seconds. The system is fully armed once the SECURITY indicator lamp goes out.
