Doors

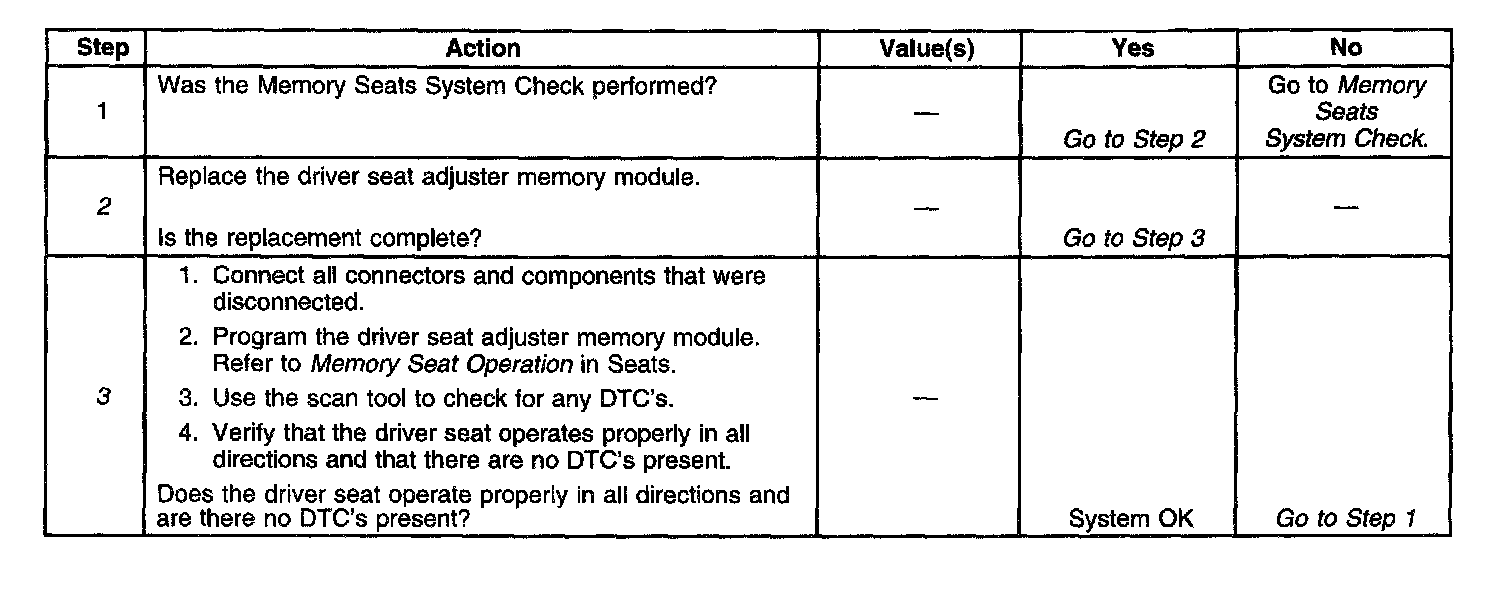

Diagnostic Trouble Code Chart:

CIRCUIT DESCRIPTION
An internal failure within the driver seat adjuster memory module will set DTC 50 or 55.

CONDITIONS FOR SETTING THE DTC
Driver seat adjuster memory module hardware failure (EEPROM, RAM, or ROM are defective).

ACTIONS TAKEN WHEN THE DTC SETS
DTC 50 or 55 will set and the driver seat adjuster memory module will become disabled.

CONDITIONS FOR CLEARING THE DTC
1. DTC 50 or 55 will clear when the fault is no longer present.
2. DTC 50 or 55 can be cleared by using the scan tool.

DIAGNOSTIC AIDS
Replace the driver seat adjuster memory module.

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step replaces the driver seat adjuster memory module.
3. This step programs the driver seat adjuster memory module and checks for any DTC's that may be present.
