B2476

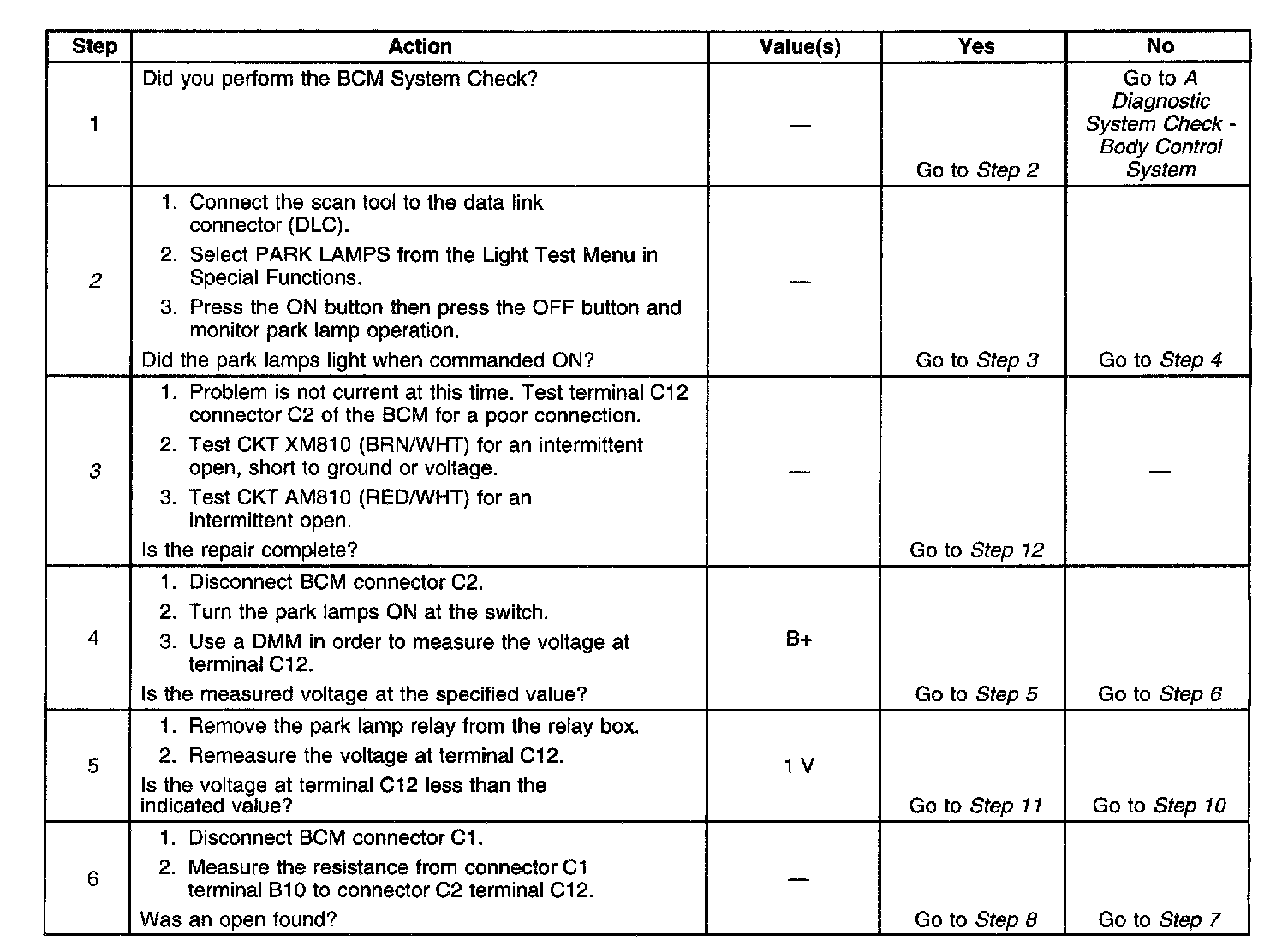

Diagnostic Trouble Code (DTC) Chart (Part 1 Of 2):

Diagnostic Trouble Code (DTC) Chart (Part 2 Of 2):

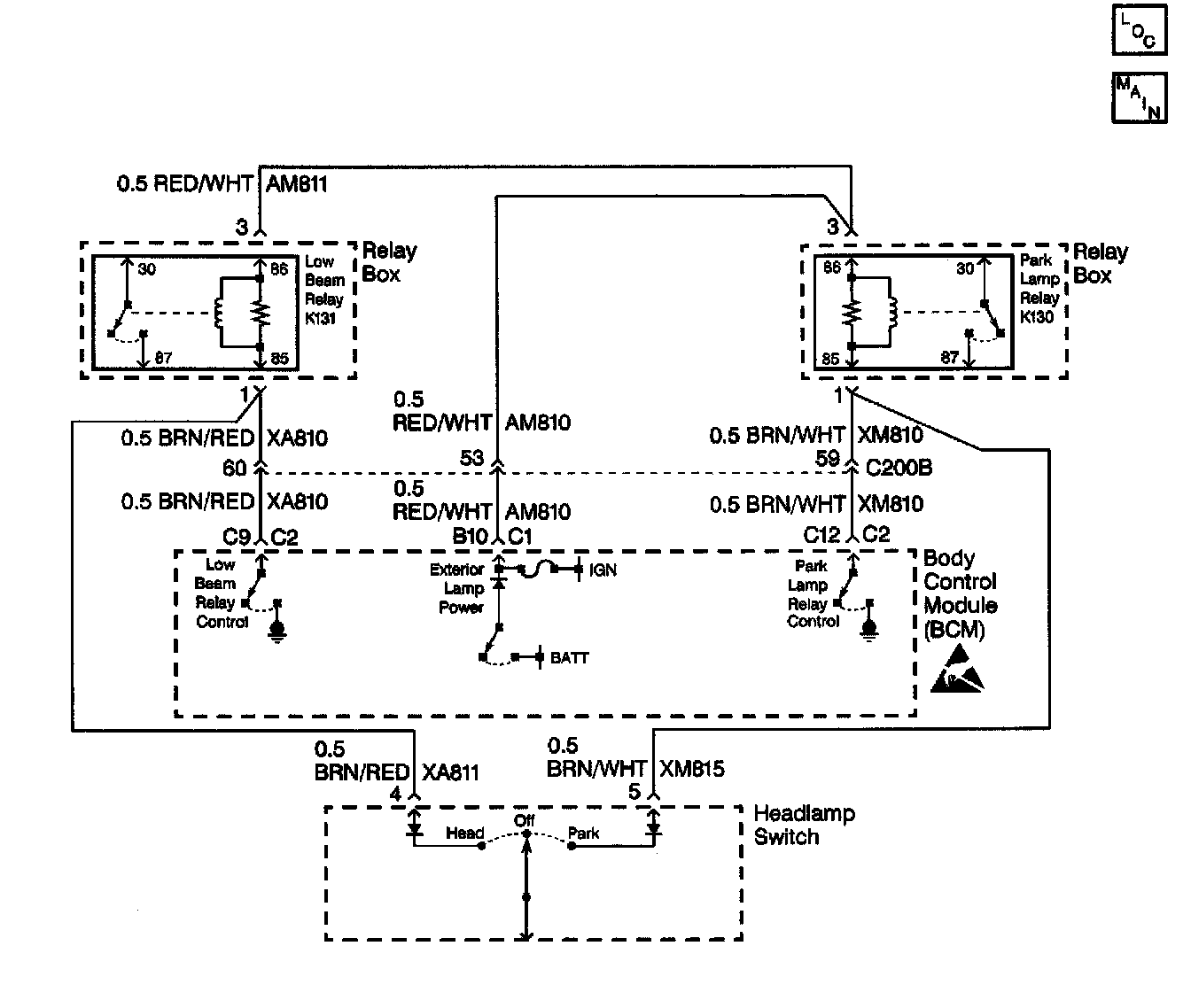

Wiring Schematics:

CIRCUIT DESCRIPTION
When the ignition is in the ON position, the Body Control Module (BCM) supplies exterior lamp power to the high side of the park lamp relay coil. The BCM grounds the coil at terminal C12, energizing the relay, when the BCM receives an input to turn the park lamps ON. This allows battery power to be supplied to the park lamps.

CONDITIONS FOR SETTING THE DTC
The BCM monitors the output to the park lamp relay every second at terminal C12. The criteria for the fault code to set is as follows:
^ Exterior lamp power is active.
^ A DTC B1970 is not set.
^ The headlamp switch is inactive.
^ The commanded state doesn't match the feedback for 3 seconds (open circuit, short to ground or B+).

ACTIONS TAKEN WHEN THE DTC SETS
^ The BCM continues to command the requested state until the state is achieved or until the state changes.
^ Stores a DTC B2476 in the BCM memory.

CONDITIONS FOR CLEARING THE DTC
^ The conditions for the fault are no longer present.
^ The use of a scan tool.
^ A history DTC will clear after 50 ignition cycles if the conditions for the fault is no longer present.

DIAGNOSTIC AIDS
Refer to Diagrams when the diagnostics direct you to take electrical measurements at the relay box.


Test for the following conditions if a history or intermittent DTC is indicated:
^ A damaged wiring harness. Inspect the wiring harness for damage. If the wiring harness appears to be in good condition, observe the display on the DMM while moving the connectors and wiring harnesses related to the circuits. A change in the DMM display during this test will indicate the location of the fault.
^ For additional information, refer to Intermittents and Poor Connections Diagnosis.
^ A short to ground in circuit XM810 may cause the park lamps to illuminate at all times with the ignition ON and the headlamp switch in the OFF position.

TEST DESCRIPTION
The following numbers refer to the step numbers on the diagnostic table:
2. This step uses a scan tool to test the park lamp operation and to verify if the fault is present.
3. This step tests for an intermittent condition in the circuits that can cause a DTC B2476 to set.
11. After verifying that no circuit problems exist, the BCM is most likely at fault. The BCM needs to be programmed after installation.
