Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Doors >> Door Control Module Schematics >> RFDM Inputs and Outputs

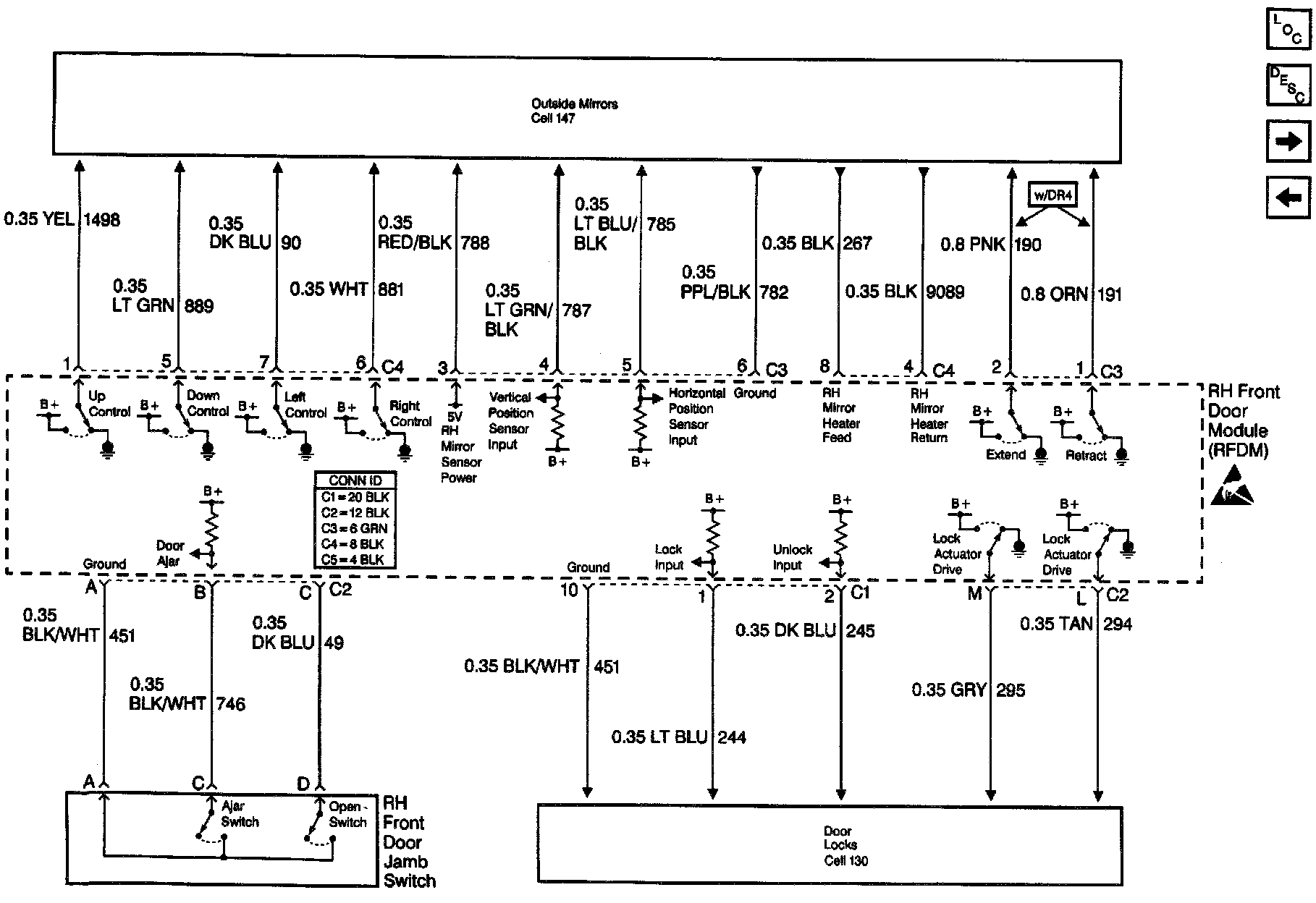

RFDM Inputs and Outputs

Door Control Module Schematics: RFDM Inputs And Outputs:
