Initial Inspection and Diagnostic Overview
>>
System Check - Brake Transmission Shift Interlock
System Check - Brake Transmission Shift Interlock

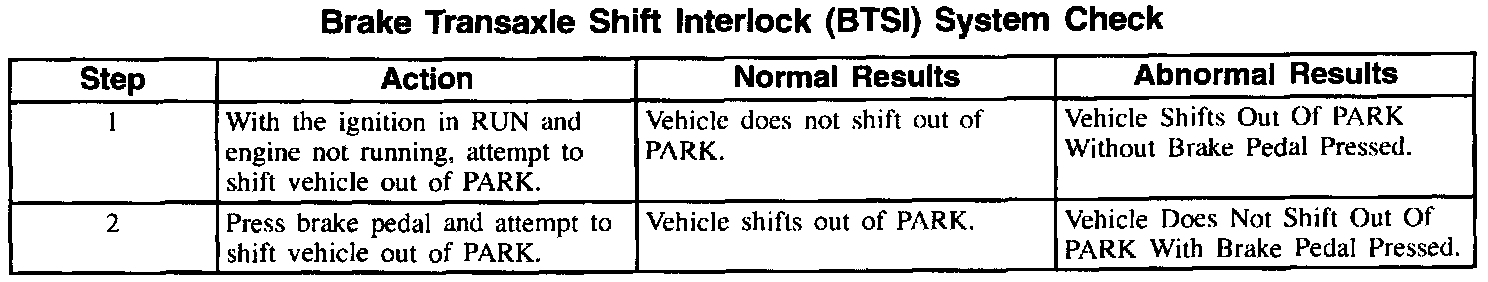

Brake Transaxle Shift Interlock (BTSI) Diagnostic System Check:
