Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Continuously Variable Road Sensing Suspension (CVRSS) >> System Check

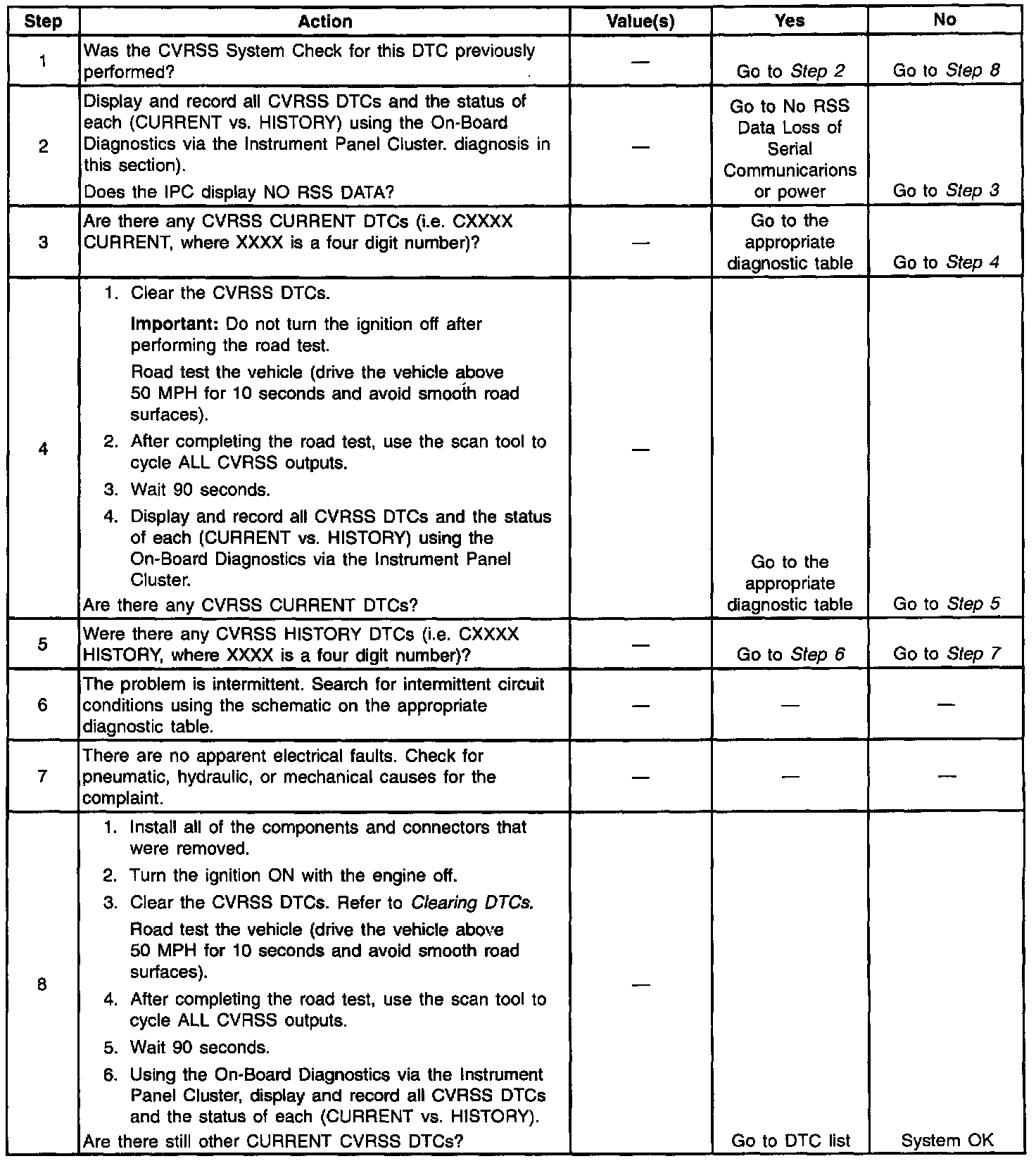

System Check

SYSTEM CHECK





IMPORTANT Do not backprobe the sensors, actuator, or any sealed connectors.
