Sub Section C - Mid Column - Column Shift - With Sensor

INCLUDES:
STEERING COLUMN HOUSING ASM
STEERING WHEEL LOCK SHOE
SWITCH ACTUATOR SECTOR
SWITCH ACTUATOR RACK
BEARING ASSEMBLY
LOCK BOLT
STEERING COL HSG SUPPORT ASM
STEERING SHAFT ASSEMBLY
SHIFT TUBE ASSEMBLY

^ Tools Required:
- J 23653-SIR Lock Plate Compressor
- J 21854-01 Pivot Pin Remover
- J 22635 Lock Shoe and Release Lever Pin Remover and Installer
- J 8092 Driver Handle
- J 38639 Strg Col Housing Bearing Installer
- J 23073-01 Shift Tube Installer
- J 39246 Tilt Spring Compressor

IMPORTANT
^ Before doing any service procedures, removal of Inflator Module and Steering Wheel is needed.

REMOVE OR DISCONNECT
1. Disable the SIR system.
2. Negative (-) battery cable.
3. Steering column from vehicle.

NOTICE: Once steering column is removed from vehicle, the column is extremely susceptible to damage. Dropping steering column assembly on its end could collapse steering shaft or loosen plastic injections which maintain column rigidity. Leaning on steering column assembly could cause jacket to bend or deform. Any of the above damage could impair steering column's collapsible design. If it is necessary to remove steering wheel, use only the specified steering wheel puller. Under no conditions should the end of the shaft be hammered on as hammering could loosen plastic injections which maintain steering column rigidity.





INSPECT
^ Steering column for accident damage.

4. Do all steps, "REMOVE OR DISCONNECT", Sub Section B.

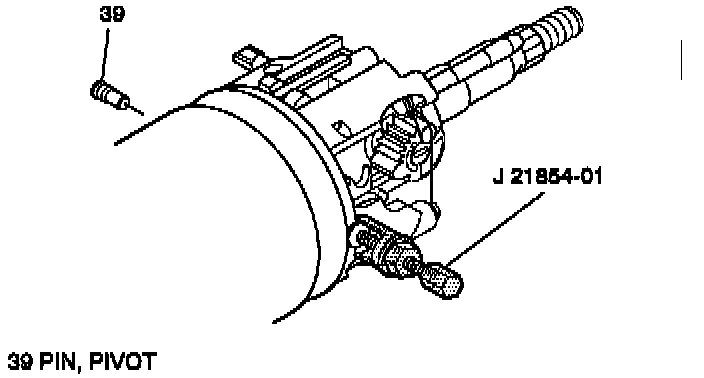

5. Pivot pins (39) using J 21854-01.
^ Reinstall tilt lever.
6. Steering column housing assembly (30).
^ Pull back on tilt lever and pull steering column housing assembly (30) down and away from column.

IMPORTANT
^ Remove only those components necessary to do repairs.

DISASSEMBLE

Steering Column Housing Assembly





A. Bearing assembly (31).
B. Wire abrasion shield (36).
C. Hex head screw (48).
D. Lock bolt spring (33).
E. Lock bolt (32).
F. Switch actuator rack (44) and rack preload spring (45).
G. Drive shaft (37).
H. Switch actuator sector (47).

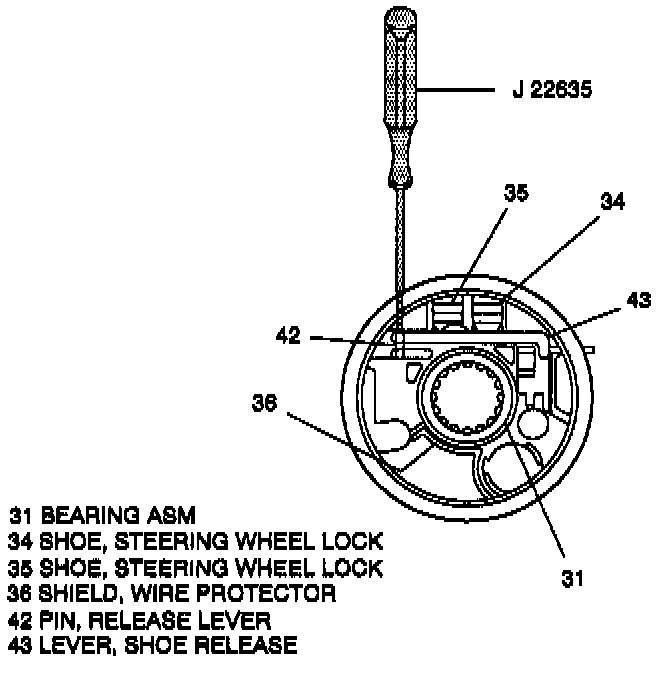

I. Release lever pin (42) using J 22635.
J. Shoe release lever (43).
K. Release lever spring (41).

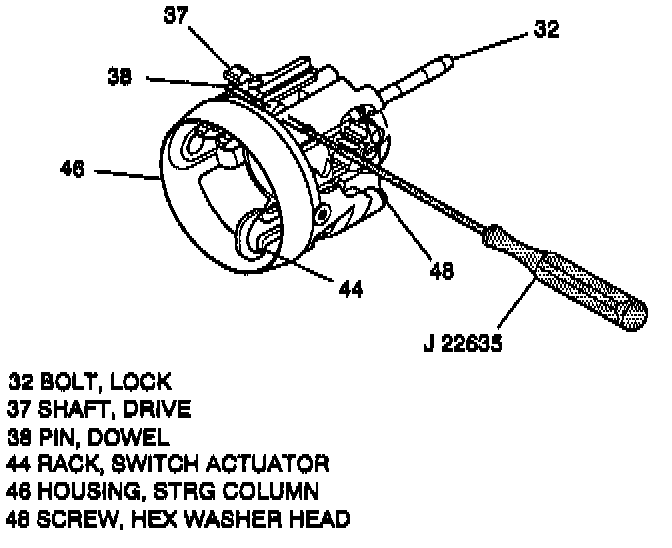

L. Dowel pin (38) using J 22635.
M. Steering wheel lock shoes (34) and (35).
N. Shoe springs (40).

Assemble

Steering Column Housing Assembly





A. Shoe springs (40).
B. Steering wheel lock shoes (34) and (35).
C. Dowel pin (38) using J 22635.
D. Release lever spring (41).
E. Shoe release lever (43).
F. Release lever pin (42) using J 22635.
G. Switch actuator sector (47).
H. Drive shaft (37).
I. Rack preload spring (45).
J. Switch actuator rack (44) to actuator sector (47).
K. Wire abrasion shield (36).

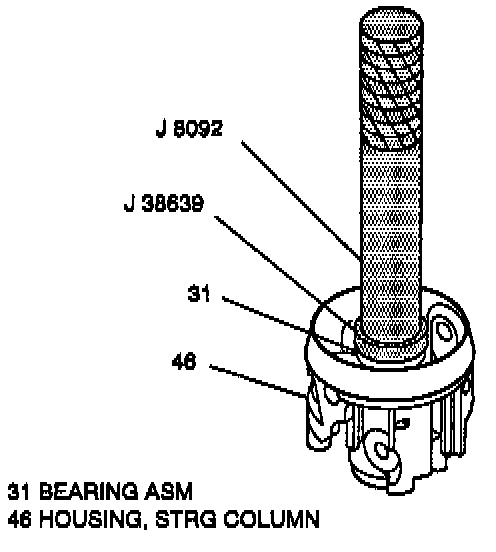

L. Bearing assembly (31) lubricated with lithium grease to column housing (46) using J 38639 and J 8092.
M. Lock bolt (32). (See Figure 37)
N. Lock bolt spring (33).
O. Hex head screw (48).

^ Tighten screw (48) to 4 Nm (35 lb in).

7. Lower spring retainer (95).
^ Dispose of retainer (95).

NOTICE: Care must be taken when removing steering sensor assembly (101). Electrical sensors on sensor assembly (101) may be damaged when sliding past bolt notch of lower steering shaft (59).

8. Adapter, sensor (96).
^ Seal retaining bushing (99).
^ Steering shaft seal (98).
^ Retainer, sensor (97).
^ Hi res steering wheel position sensor assembly (101).

9. Lower spring retainer (95).
^ Dispose of retainer (95).
10. Lower bearing spring (94).
11. Lower bearing seat (93).
12. Hex head screws (92).
13. Adapter & bearASM ASM (91).
14. Steering column shaft assembly (55).

Inspect

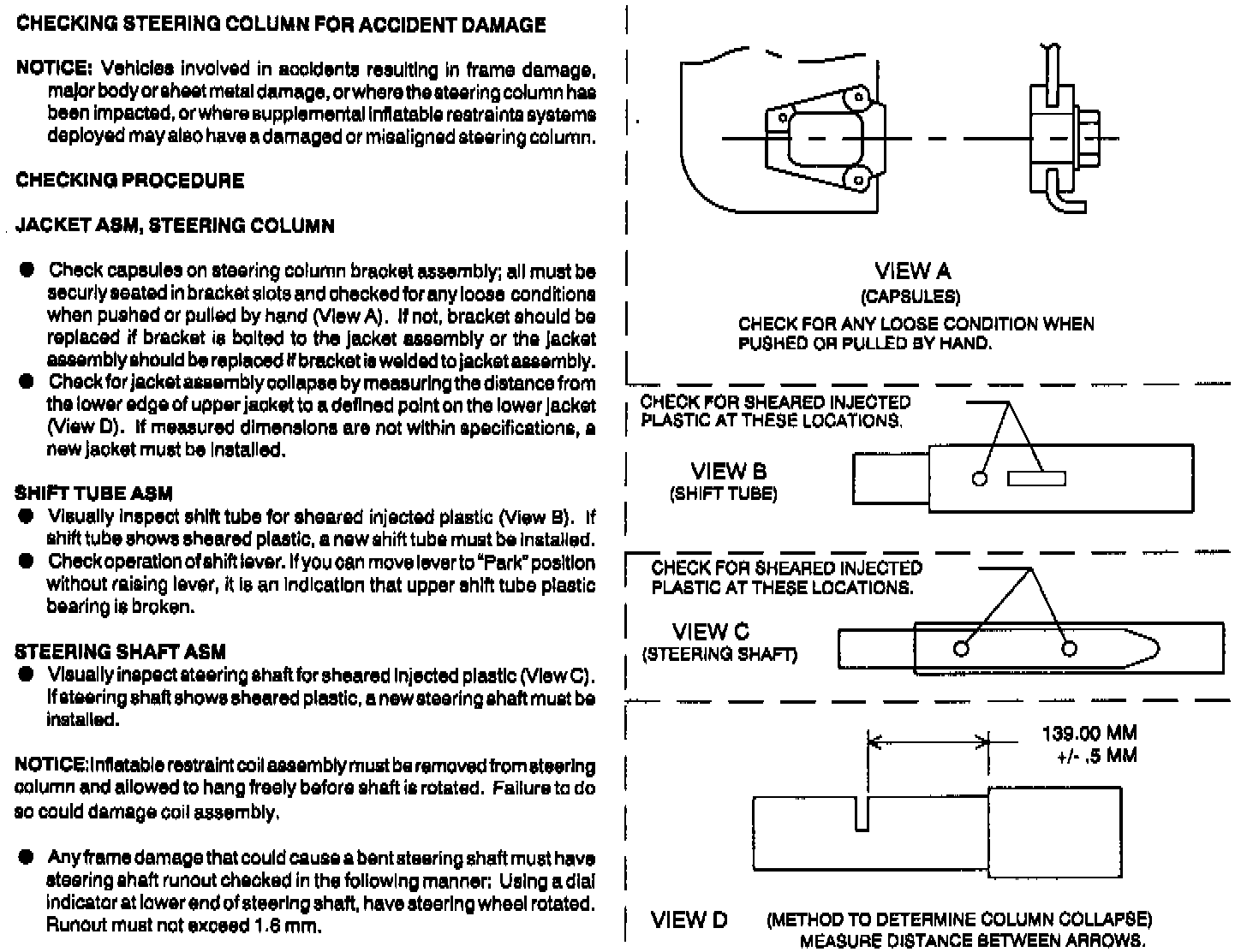

^ Steering column shaft assembly (55) for accident damage. (See Figure 45)

Steering Shaft Assembly








IMPORTANT

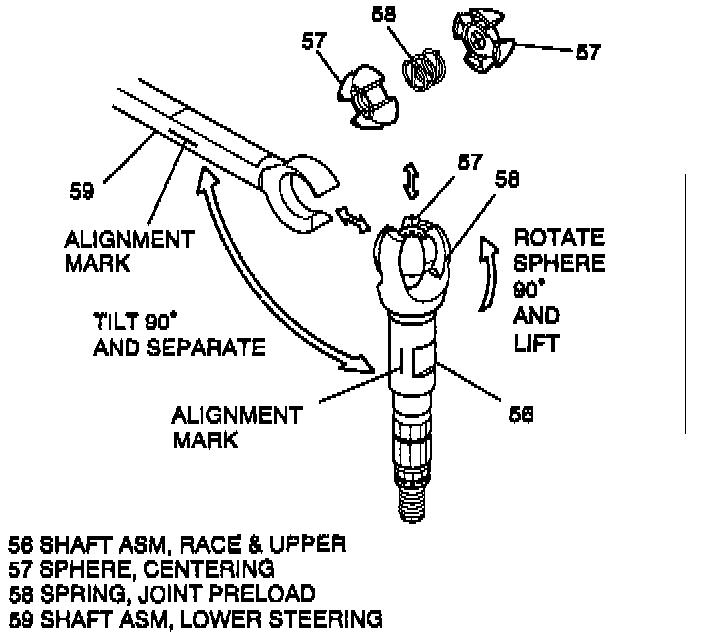

^ Mark upper shaft assembly (56) and lower steering shaft ASM (59) to ensure proper assembly. Failure to assemble properly will cause steering wheel to be turned 180 degrees. (See Figures 22 and 23)

IMPORTANT
^ Remove only those components necessary to do repairs.

Disassemble
Steering Column Shaft Assembly
A. Race & upper shaft assembly (56), lower steering shaft assembly (59).
^ Tilt 90 degrees to each other and disengage.
B. Centering sphere (57) from race & upper shaft assembly (56).
^ Rotate sphere 90 degrees and slip out.
C. Joint preload spring (58) from centering sphere (57).
15. Disassemble the steering shaft assembly from the race & upper shaft assembly.

IMPORTANT
^ Mark race & upper shaft assembly and lower steering shaft assembly to ensure proper assembly. Failure to assemble properly will cause steering wheel to be turned 180 degrees.

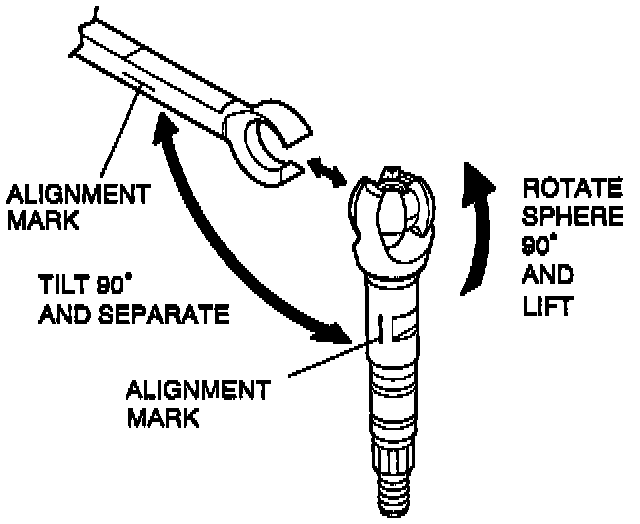

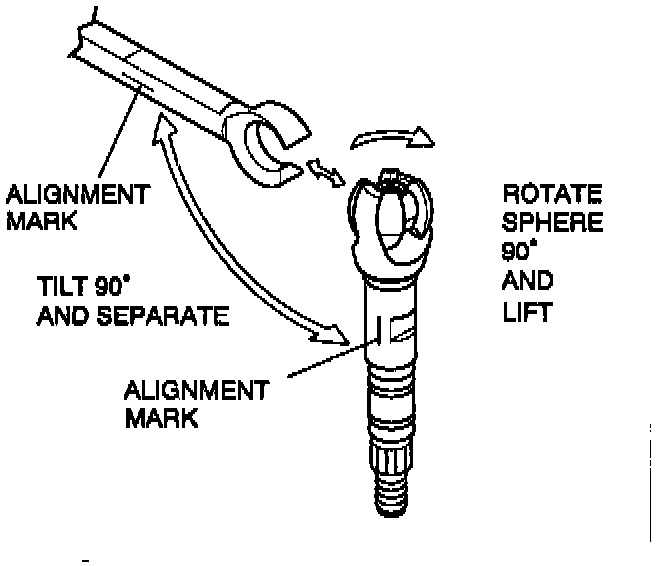

16. Tilt the lower steering shaft assembly 90 degrees to the race & upper shaft assembly and disengage. (See Figure 24).
17. If necessary remove and discard the old centering sphere and spring.

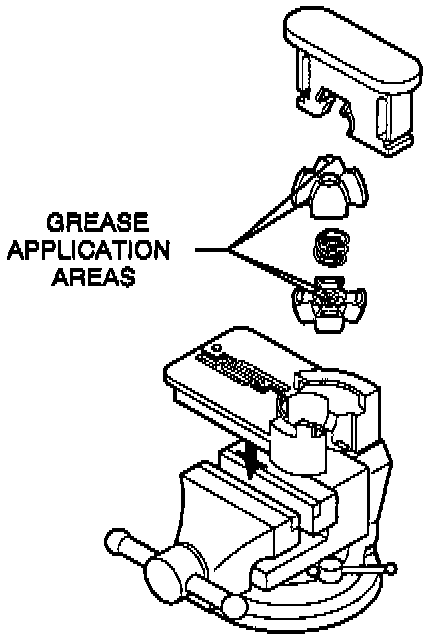

18. Grease the sphere with lithium grease. Grease the lower half of the sphere in the upper shaft assembly engagement areas. Grease the upper half of the sphere in the shaft engagement areas opposite to the greased areas of the lower half of the sphere. (See Figure 25).
19. Place the base of the tool in a vise. Then place (in order shown) the bottom half of the new centering sphere, the new spring, the top half of the new centering sphere, and the driver in the Centering Sphere Installer Tool #J41688.(See Figure 25).

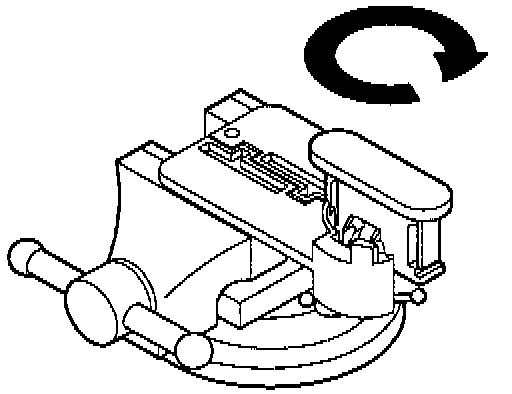

20. Compress the spring and rotate the driver 90 degrees in the clockwise direction. (See Figure 26)

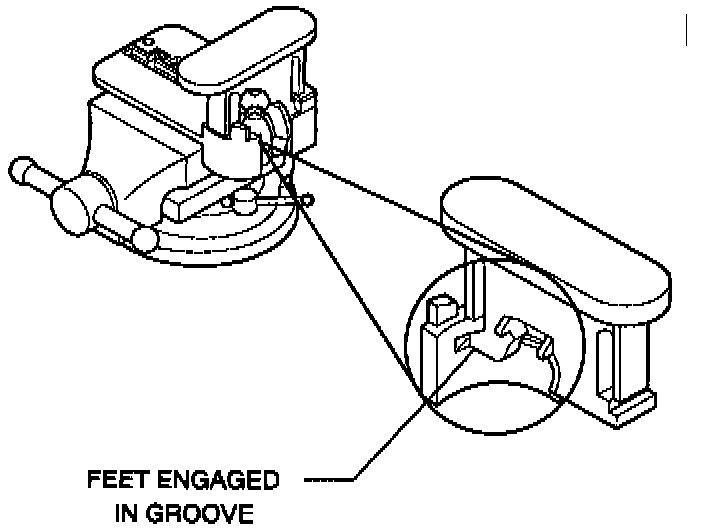

^ Make sure that the feet of the driver slide into grooves in the base. Rotate driver until arms lock in place. (See Figure 27)





21. Once sphere is locked in place, attach the race & upper shaft assembly. (See Figure 28)
^ After the race & upper shaft assembly is firmly attached to the centering sphere, rotate the shaft 90 degrees downward locking the centering sphere in place.

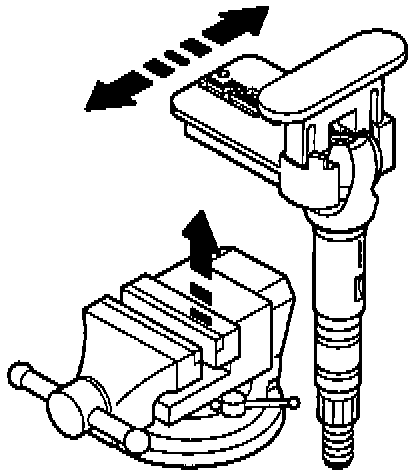

22. Remove the centering sphere installer and the race & upper shaft assembly from the vise. Disassemble the tool by separating the base. After the tool is disassembled, the shaft with the attached sphere can be removed. (See Figure 29)





23. Apply lithium grease to the exposed shaft engagement area and then install the lower steering shaft assembly. (See Figure 30).

Assemble
Steering Column Shaft Assembly
A. Joint preload spring (58) to two centering sphere (57).
B. Centering sphere (57).
^ Lubricate with lithium grease, slip into race & upper shaft assembly (56), and rotate sphere 90 degrees.
C. Race & upper shaft assembly (56) to the lower steering shaft assembly (59).
^ Line up marks and tilt assemblies 90 degrees to each other.

24. Support screws (61).

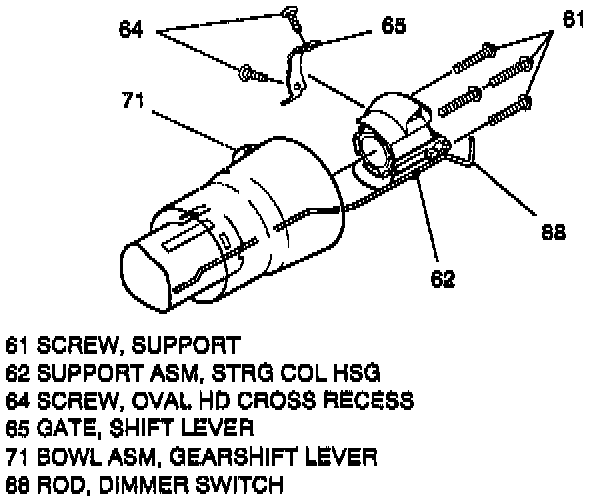

25. Column housing support assembly (62) with dimmer switch rod (88) from steering column jacket assembly (78).
^ Rod (88) from steering column housing assembly support (63).
26. Oval hd cross recess screws (64) and shift lever gate (65) from steering column housing assembly support (63).

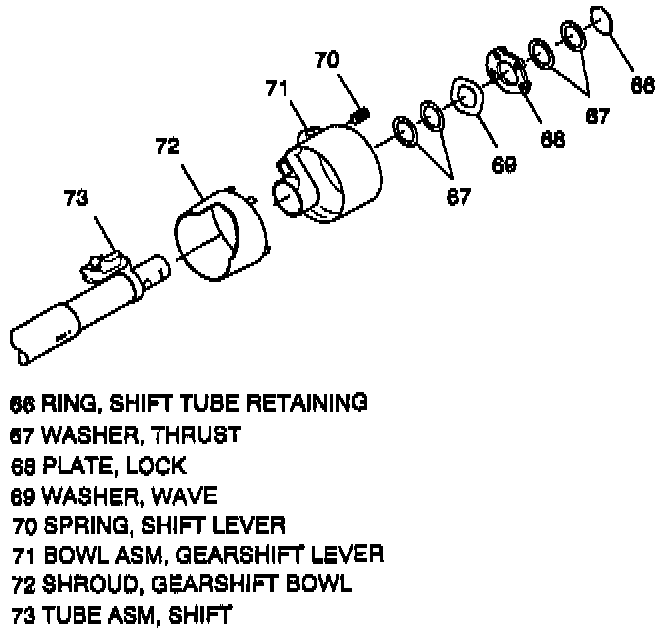

27. Shift tube retaining ring (66).
28. Two thrust washers (67).
29. Lock plate (68).
30. Wave washer (69).
31. Two thrust washers (67).
32. Gearshift lever bowl assembly (71) with gearshift bowl shroud (72) and shift tube assembly (73).
33. Gearshift bowl shroud (72) from bowl assembly (71).
34. Shift lever spring (70) from bowl assembly (71).
35. Shift tube ASM (73) from bowl assembly (71) using a press.

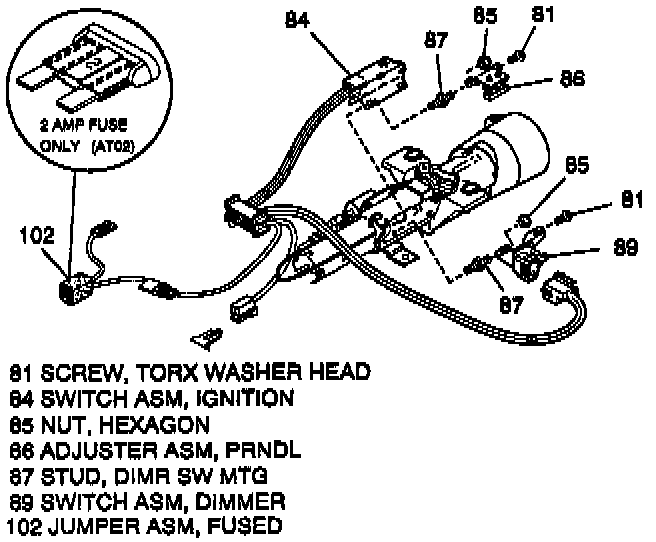

36. Hex nut (85) and torx washer head screw (81).
37. PRNDL adjuster assembly (86).
38. Hex nut (85) and torx washer head screw (81).





39. Dimmer switch assembly (89).
^ Dimmer switch (89) from vehicle wire harness.
40. Dimmer switch mounting stud (87).
41. Ignition switch assembly (84) from ignition switch actuator assembly (80).





42. Cam retainer (82).
^ Cable shift cam assembly (83).
43. Torx washer head screw (81) and dimmer switch mounting stud (87).
^ Stud & bracket assembly (90).

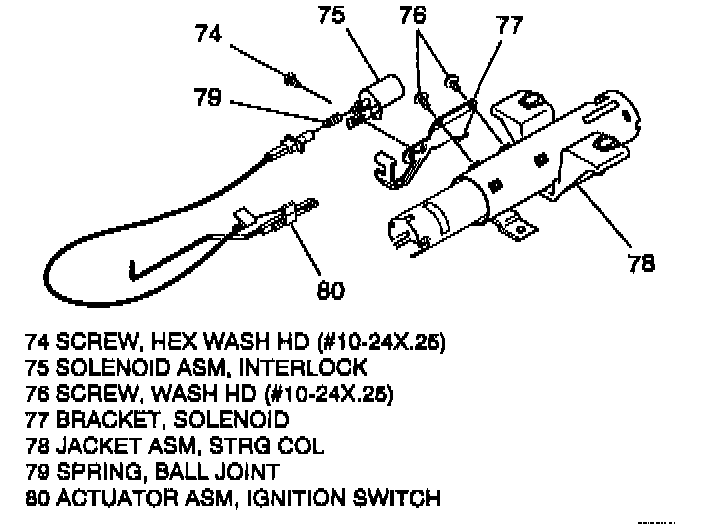

44. Cable assembly with ignition switch actuator assembly (80).
A. Cable clip from upper location of steering column jacket assembly (78).
B. Cable mounting clip from solenoid bracket (77).
C. Ball joint socket from interlock solenoid assembly (75).
D. Ball joint spring (79).
45. Hex washer head screw (74).
^ Interlock solenoid assembly (75).
^ Connector, axial position assurance (100).
^ Terminal connector from interlock solenoid assembly (75).
46. Two washer head screws (76).
^ Solenoid bracket (77).

INSTALL OR CONNECT

NOTICE: Refer to the fastener NOTICE in Service Precautions. Failure to do so may result in component damage or malfunctioning of steering column.

1. Solenoid bracket (77).
^ Two washer head screws (76).
^ Tighten screws (76) to 4 Nm (35 lb in)





2. Interlock solenoid assembly (75).
3. Hex washer head screw (74).
^ Tighten finger tight.
4. Terminal connector to interlock solenoid assembly (75).
^ Connector, axial position assurance (100).
5. Cable assembly with ignition switch actuator assembly (80).
A. Cable clip to upper location of steering column jacket assembly (78).
B. Lubricate with grease at location where cable lug attaches to switch actuator.
C. Let lower cable hang freely.

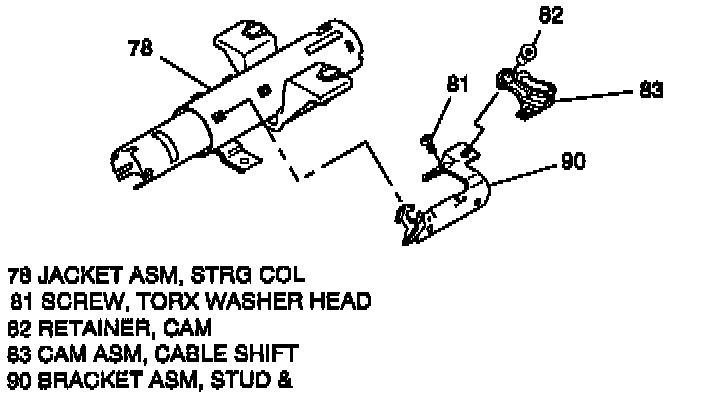

6. Stud & bracket assembly (90).
^ Torx washer head screw (81) and dimmer switch mounting stud (87).
^ Tighten screw (81) and stud (87) to 4 Nm (35 lb in).

7. Cable shift cam assembly (83).
^ Cam retainer (82).
^ Tighten retainer (82) to 4 Nm (35 lb in)

8. Shift lever gate (65) and screws (64) to support steering column housing assembly (63).
^ Tighten screws (64) to 4 Nm (35 lb in).

9. Dimmer switch rod (88) to column housing support assembly (62).
10. Support assembly (62) and screws (61).
^ Tighten screws (61) to 10 Nm (88 lb in).





11. Shift tube lever spring (70) to gearshift lever bowl assembly (71).
12. Gearshift lever bowl ASM (71) to shift tube assembly (73) using tool J23073-01.
13. Gearshift bowl shroud (72) to gearshift lever bowl assembly (71).
14. Shift tube ASM (73) with gearshift lever bowl assembly (71) to steering column jacket assembly (78).
15. Two thrust washers (67).
16. Wave washer (69).
^ Lubricate with lithium grease.
17. Lock plate(68).
18. Two thrust washers (67).
19. Shift tube retaining ring (66).
20. Steering shaft assembly (55) to steering column jacket assembly (78).
^ Lubricate with lithium grease.
21. Tilt lever.

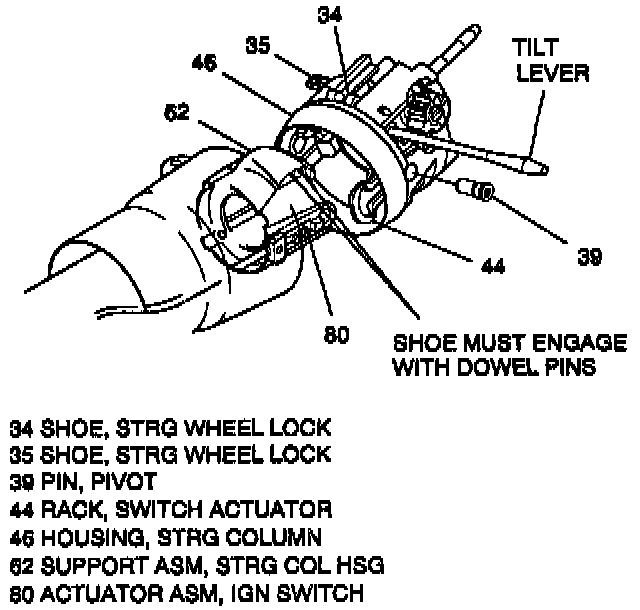

22. Steering column housing assembly (30) to column.

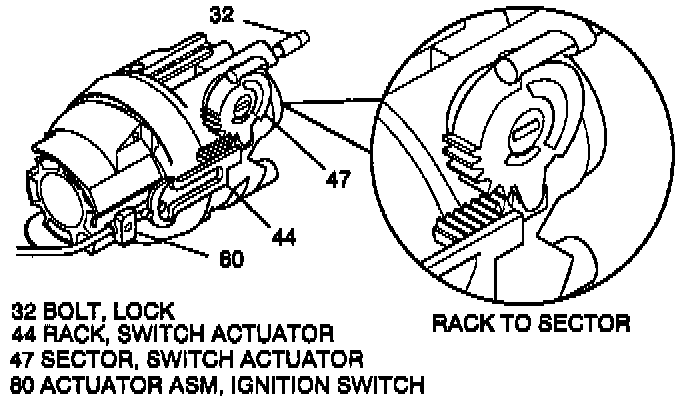

^ Position column housing assembly (30) and align switch actuator rack (44) with pin on end of ignition switch actuator assembly (80).
^ Pull back on tilt lever, pushing column housing assembly (30) onto steering column housing support assembly (62).
^ Release tilt lever to lock shoes (34) and (35) onto dowel pins.
^ Remove tilt lever.
23. Pivot pins (39).
^ Lubricate with lithium grease.
^ Press pin until firmly seated, two places.
24. Adapter & bearing assembly (91).
^ Lubricated with lithium grease.
25. Hex head screws (92).

^ Tighten screws (92) to 3.5 Nm (31 lb in).

26. Lower bearing seat (93).
27. Lower bearing spring (94).
28. New lower spring retainer (95).
^ Press retainer (95) onto steering shaft ASM (55) to compress lever bearing spring (94).

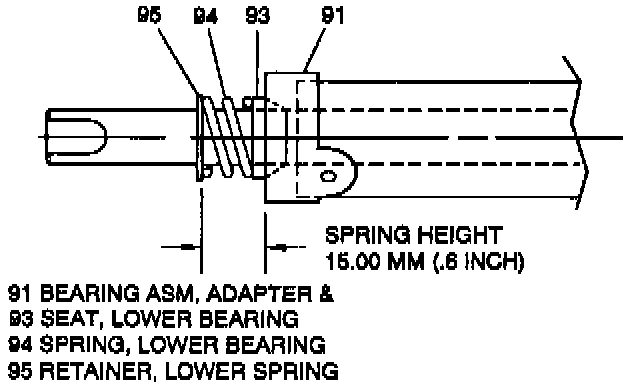

Measure
^ Distance from face of adapter & bearing assembly (91) to lower spring retainer (95).
^ Spring height must equal 15.0 mm (.6 inch).

29. Adapter, strg sensor (96).
30. Steering wheel pose sensor assembly (101).
31. Retainer, sensor (97).
32. Steering shaft seal (98).
33. Seal retaining bushing (99).
34. New spring retainer (95).
35. Do steps 1 through 16, "INSTALL OR CONNECT", Sub Section B.
36. Do steps 1 through 21 "INSTALL OR CONNECT", Sub Section A.
37. Do all steps Ignition Switch Assembly "INSTALL OR CONNECT", Sub Section D.
