Sub Section A - Upper Column - Floor Shift - With Sensor

CAUTION: The procedures must be followed in the order listed to temporarily disable the Supplemental Inflatable Restraint (SIR) System and prevent false diagnostic codes from setting. Failure to follow procedures could result in possible air bag deployment, personal injury or otherwise unneeded SIR System repairs.

CAUTION: Before removing or installing any electrical unit or when a tool or equipment could easily come in contact with "live" exposed electrical terminals, disconnect the negative battery cable to help prevent personal Injury and/or damage to the vehicle or components. Unless instructed otherwise, the ignition switch must be In the "off" or "lock" position.

NOTICE: Once steering column is removed from vehicle, the column is extremely susceptible to damage. Dropping steering column assembly on its end could collapse steering shaft or loosen plastic injections which maintain column rigidity. Leaning on steering column assembly could cause jacket to bend or deform. Any of the above damage could impair steering column's collapsible design. If it is necessary to remove steering wheel, use only the specified steering wheel puller. Under no conditions should the end of shaft be hammered on as hammering could loosen plastic injections which maintain steering column rigidity.

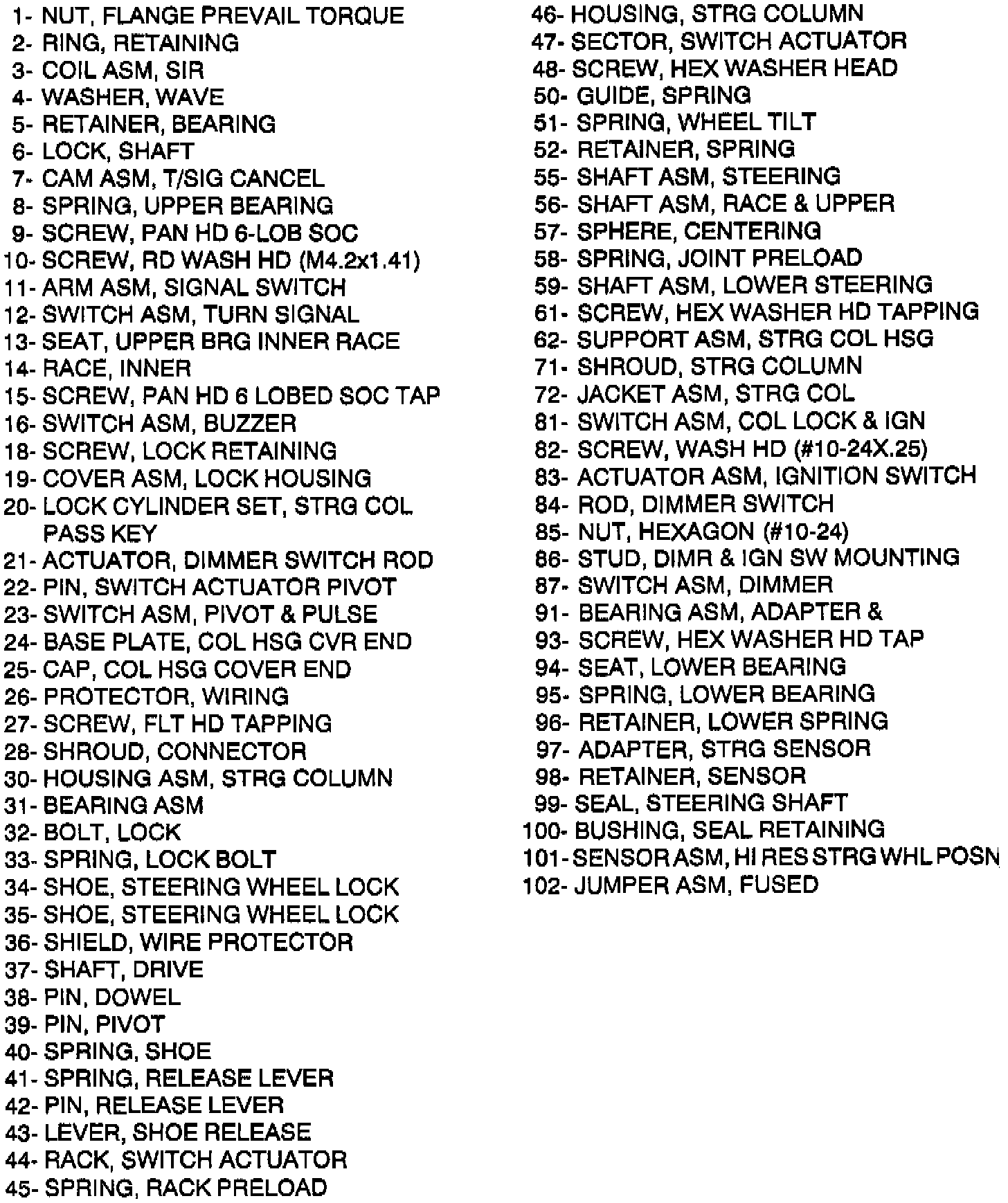

INCLUDES:
DISABLING THE SIR SYSTEM
ENABLING THE SIR SYSTEM
SIR COIL ASSEMBLY
SHAFT LOCK
TURN SIGNAL CANCELING CAM ASM
UPPER BEARING SPRING
UPPER BEARING INNER RACE SEAT
INNER RACE
TURN SIGNAL SWITCH ASSEMBLY
BUZZER SWITCH ASSEMBLY
STRG COL PASS KEY LOCK CYL SET
CENTERING SIR COIL

^ Tools Required:
- J 23653-SIR Lock Plate Compressor

SERVICE PRECAUTIONS

CAUTION: When performing service on or around SIR components or wiring, follow the procedures listed below to temporarily disable the SIR system. Failure to follow procedures could result In possible air bag deployment, personal Injury or, otherwise unneeded SIR repairs.

The DERM in 1993 and previous Driver-Only SIR systems can maintain sufficient voltage to cause a deployment for up to 10 minutes after the ignition switch is turned "OFF", the battery is disconnected or the fuse powering the DERM is removed.

The DERM in 1994 and later Driver-Only and the DERM in all Driver-Passenger SIR systems can maintain sufficient voltage to cause a deployment for up to 2 minutes after the ignition switch is turned " OFF ", the battery is disconnected or the fuse powering the DERM is removed.

Many of the service procedures require removal of the AIR BAG fuse, and the disconnection of the inflator module from the deployment loop to avoid an accidental deployment. If the inflator module is disconnected from the deployment loop as noted in the "Disabling the SIR System" procedure that follows, service can begin immediately without waiting for the 10 minute or 2 minute time period to expire.








DISABLING THE SIR SYSTEM

REMOVE OR DISCONNECT
^ Turn steering wheel so that the vehicles wheels are pointing straight ahead.
^ Turn ignition switch to "LOCK" and remove key.

1. "SIR" fuse from engine compartment fuse block.
2. Sound insulator - LH.
3. Connector Position Assurance (CPA) and yellow 2-way SIR connector near the base of the steering column.
4. (CPA) and yellow 2-way connector through the "trap" door in the instrument panel glove box.





5. SIR (3) connector from fused jumper ASM (102) connector.

IMPORTANT
^ With the "SIR" fuse removed and ignition switch "ON", the "AIR BAG" warning lamp will be "ON". This is normal operation and does not indicate an SIR system malfunction.

ENABLING THE SIR SYSTEM

INSTALL OR CONNECT
^ Turn ignition switch to "LOCK" and remove key.
1. Sir (3) connector to fused jumper ASM (102) connector.
2. Yellow 2-way connector and (CPA) through the "trap" door in the instrument panel glove box.
3. Yellow 2-way SIR connector and (CPA) near the base of the steering column.
4. Sound insulator - LH.
5. "SIR" fuse to engine compartment fuse block.
^ Turn ignition switch to "RUN" and verify that the "AIR BAG" warning lamp flashes 7 times and then turns "OFF". If it does not operate as described, perform the "SIR Diagnostic System Check".

IMPORTANT
^ Before doing any service procedures, disabling the SIR system and removal of Inflator Module and Steering Wheel is needed.

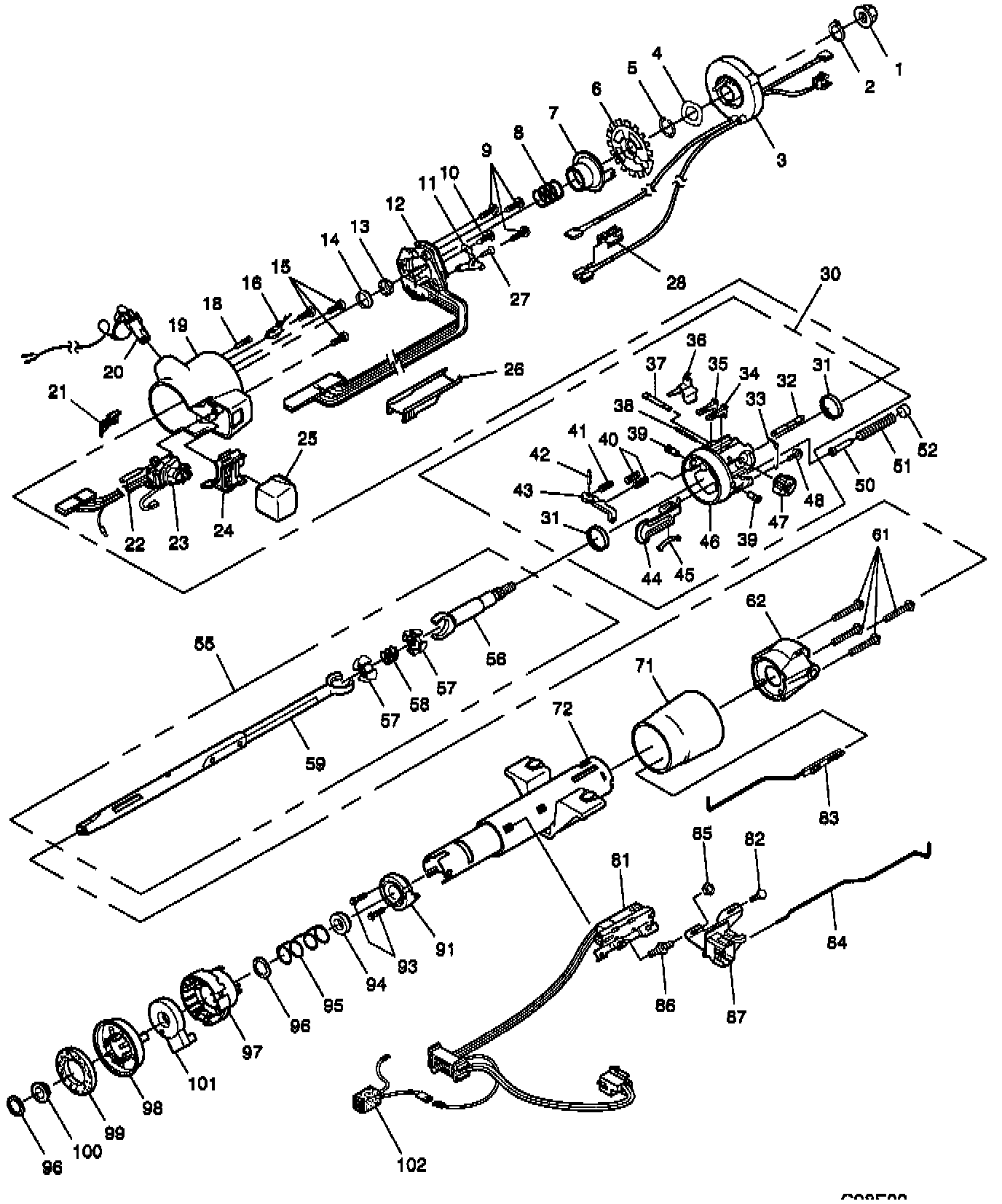

REMOVE OR DISCONNECT

NOTICE: Place ignition to "LOCK" position to prevent uncentering coil assembly (3).

1. Disable the SIR system.
2. Negative (-) battery cable.

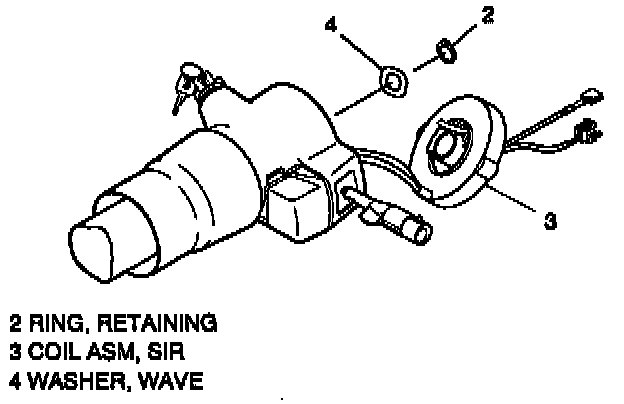

3. Coil assembly retaining ring (2).
4. SIR coil assembly (3).
^ Let switch hang freely if removal is not needed.
^ To remove coil (3), do steps 5 through 17.
5. Wave washer (4).
6. Shaft lock bearing retainer (5) using J 23653-SIR to push down shaft lock (6).
^ Dispose of bearing retainer (5).

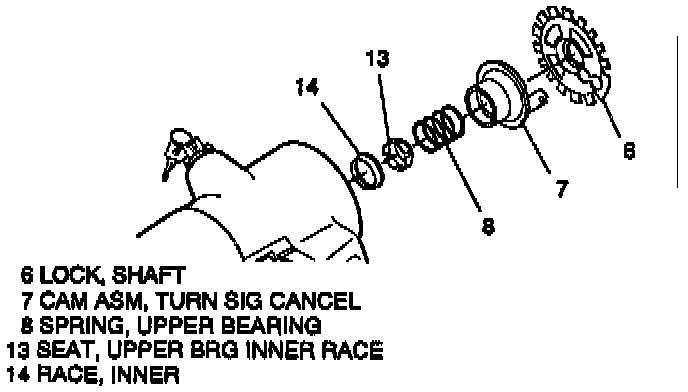

7. Shaft lock (6).





8. Turn signal canceling cam assembly (7).
9. Upper bearing spring (8).
10. Upper bearing inner race seat (13).
11. Inner race (14).
12. Turn signal to "RIGHT TURN" position (up).
13. Multi-function lever and hazard knob assembly.

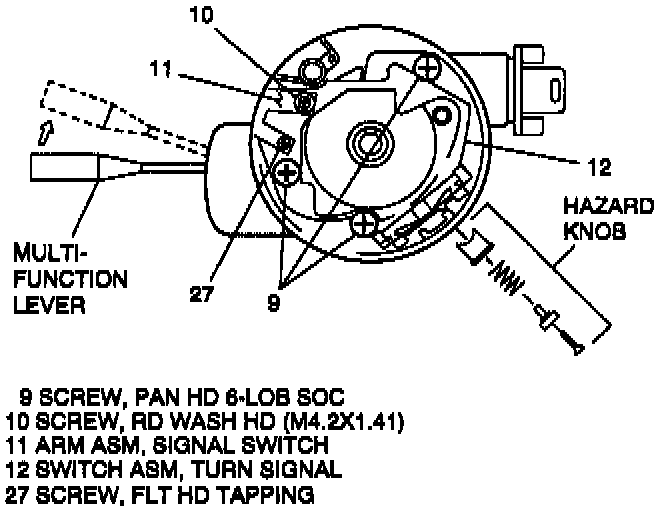

14. Washer head screw (10), and flat head screw (27) with signal switch arm (11).
15. Turn signal switch pan head 6-lob soc screws (9).








16. Turn signal switch assembly (12).
^ Let switch hang freely if removal is not needed.
^ To remove switch (12):

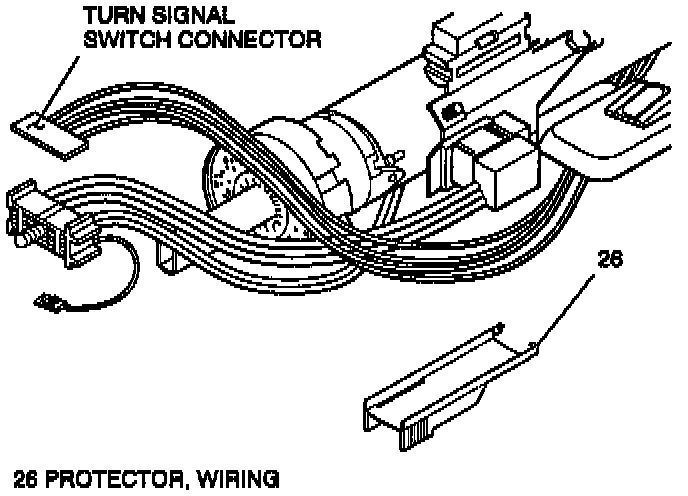

A. Turn signal switch connector from bulkhead connector.
B. Wiring protector (26).
C. Gently pull wire harness through column.

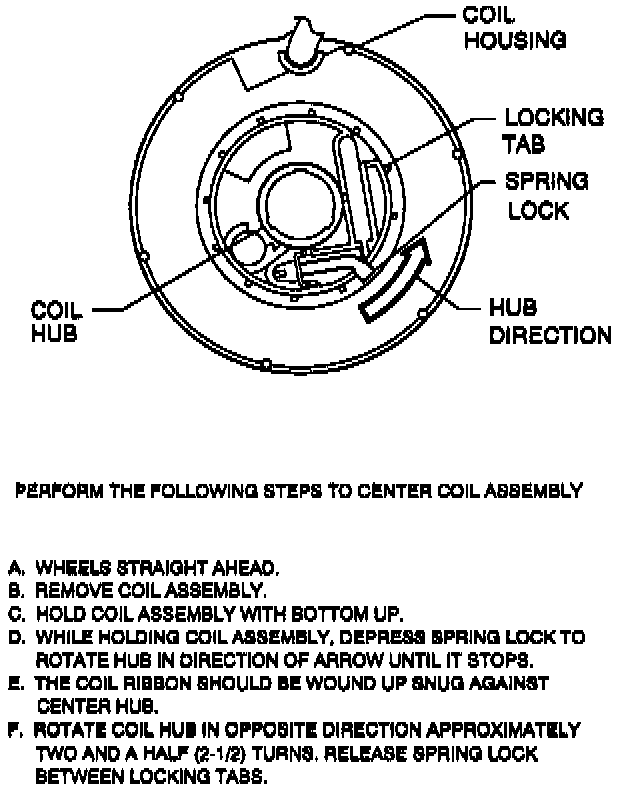

NOTICE: Coil assembly (3) will become uncentered if:
1) Steering column is separated from steering gear and is allowed to rotate, or





2) Centering spring is pushed down, letting hub rotate while coil (3) is removed from steering column. (If this occurs, see Figure)





17. SIR coil assembly (3) with wire harness from column assembly.
A. Wiring protector (26).
B. Attach a length of mechanics wire to coil terminal connector to aid in reassembly.
C. Gently pull wire through column.
18. Key from pass key lock cylinder set (20).
19. Buzzer switch assembly (16).
20. Reinsert key in pass key lock cylinder (20).
^ Key in "LOCK" position.

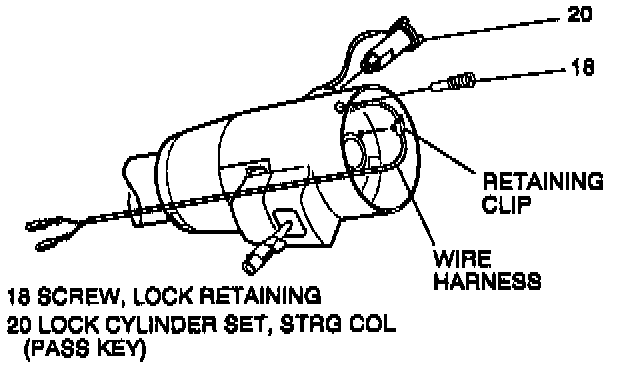

21. Lock retaining screw (18).





22. Pass key lock cylinder (20) and harness.
^ To remove lock cylinder (20):

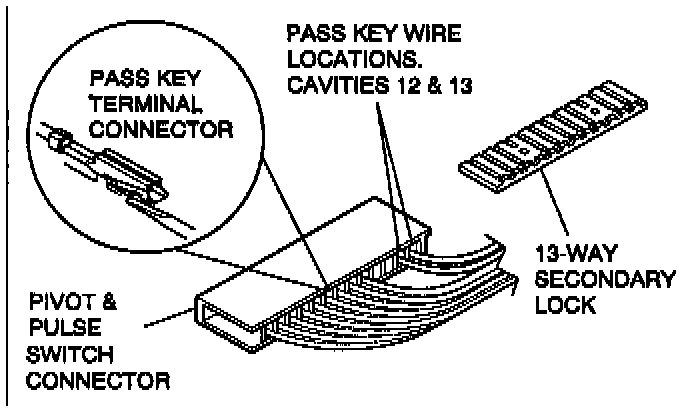

A. Pivot & pulse switch (23) connector from bulkhead connector and remove 13-way secondary lock.
B. Two terminals of pass key wire harness from cavities 12 and 13 of switch (23) connector.
C. Wiring protector (26).
D. Attach a length of mechanics wire to terminal to aid in reassembly.
E. Retaining clip from housing cover (19) and gently pull wire harness through column.

INSTALL OR CONNECT

NOTICE: Refer to the fastener NOTICE in Service Precautions. Failure to do may result in component damage or malfunctioning of steering column.

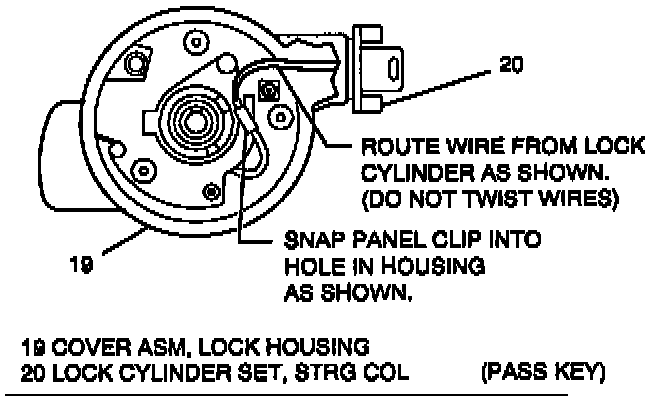

NOTICE: Route wire from pass key lock cylinder as shown and snap retaining clip into hole in housing (19). Failure to do so may result in component damage or malfunction of pass key lock cylinder.





1. Pass key lock cylinder (20).
A. Wire terminal through column and snap retaining clip into hole in housing.
B. Two terminals of pass key wire harness to cavities 12 and 13 of pivot pulse switch (23) connector, cavity position optional.
C. 13-way secondary lock to switch (23) connector.
D. Switch (23) connector to bulkhead connector.
2. Lock retaining screw (18).
^ Tighten screw (18) to 2.5 Nm (22 lb in).





3. Key from pass key lock cylinder set (20).
4. Buzzer switch assembly (16).
5. Reinstall key in pass key lock cylinder set (20).
^ Key in "LOCK" position.

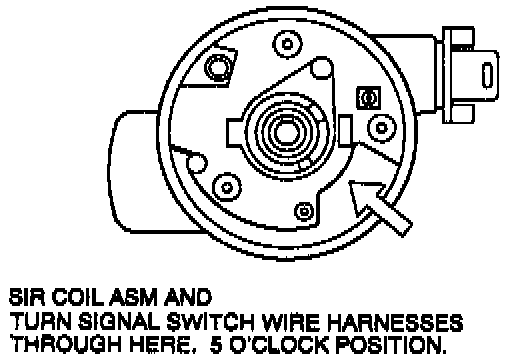

6. Turn signal switch assembly (12) wire harness through steering column.
^ Let switch hang freely.
^ Switch connector to bulkhead connector.
7. SIR coil assembly (3) wire harness through column.
^ Let coil hang freely.
8. Turn signal switch assembly (12) and three pan hd 6-lob soc screws (9).
^ Tighten screws (9) to 3.5 Nm (31 lb in).

9. Signal switch arm (11) with screw (10) and screw (27).
^ Tighten screw (10) to 3 Nm (27 lb in) and screw (27) to 2.5 Nm (22 lb in).

10. Hazard knob assembly and multi-function lever.
11. Inner race (14).
12. Upper bearing inner race seat (13).
13. Upper bearing spring (8).
14. Turn signal canceling cam assembly (7).
^ Lubricate with grease, synthetic (service kit).
15. Shaft lock (6).
16. New shaft lock bearing retainer (5) using J 23653-SIR to push down shaft lock (6).
^ Bearing retainer (5) must be firmly seated in groove on shaft.








NOTICE: Set steering shaft so that block tooth on race & upper steering shaft (56) is at the 12 o'clock position, wheels on vehicle should be straight ahead, then set ignition switch to "LOCK" position, to ensure no damage to coil assembly (3).

17. Wave washer (4).





NOTICE: Coil assembly (3) will become uncentered if: (1) Steering column is separated from steering gear and is allowed to rotate, or (2) Centering spring is pushed down, letting hub rotate while coil is removed from column. (If this occurs, see Figure)





NOTICE: If a new SIR coil assembly (3) is being installed, assemble pre-centered coiASMsm (3) to steering column. Remove centering tab and dispose.

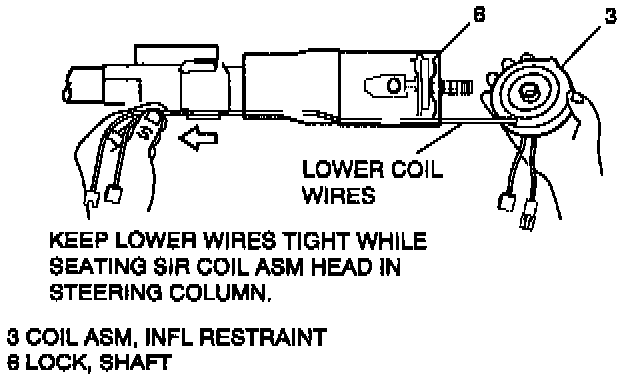

NOTICE: SIR coil assembly wire must tee kept tight with no slack while installing SIR coil assembly. Failure to do so may cause wire to be kinked near shaft lock area and cut when steering wheel is turned.

18. Ensure SIR coil assembly (3) hub is centered.

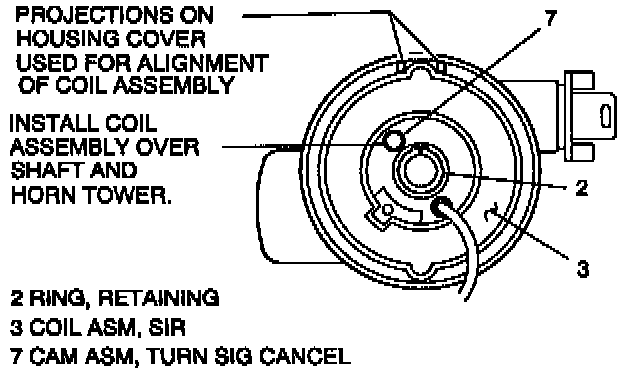

19. Inflatable restraint coil assembly (3).
A. Pull wire tight while positioning SIR coil (3) to steering shaft (55).
B. Align opening in coil with horn tower and "locating bump" between two tabs on housing cover. (See Figure 15)
C. Seat coil assembly (3) into steering column.
20. SIR coil assembly retaining ring (2).
^ Ring (2) must be firmly seated in groove on shaft.

NOTICE: Gently pull lower coil assembly, turn signal, pass key, and pivot & pulse wires to remove any wire kinks that may be inside steering column assembly. Failure to do so may cause damage to wire harness.

21. Wiring protector (26).
22. Refer to steering column assembly.
23. Negative (-) battery cable.
24. If all service operations are completed, enable the SIR system.
