Front RSS Position Sensor

REMOVAL
1. Raise the vehicle.
2. Remove the wheel from the vehicle.

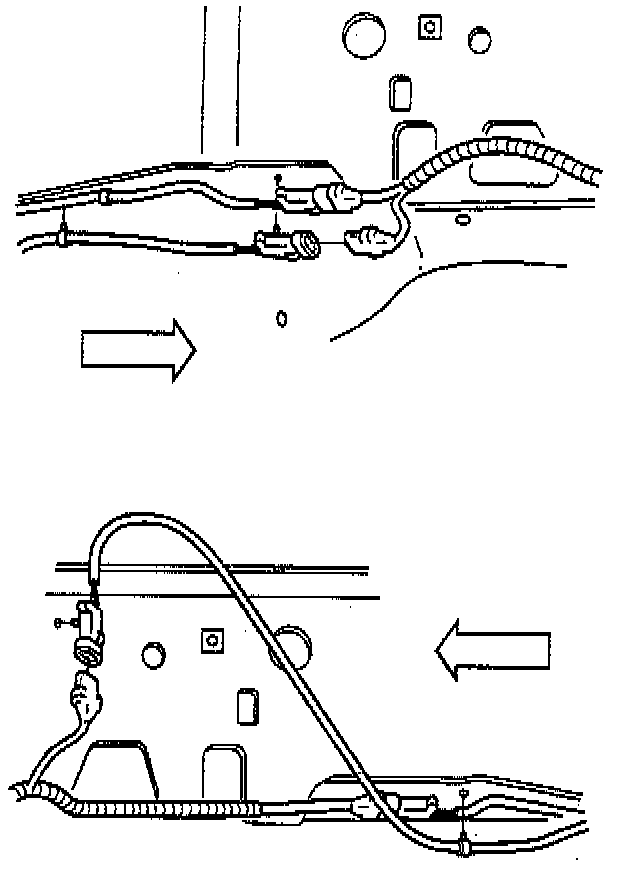

3. Disconnect the sensor harness connector from the vehicle harness connector.
4. Disconnect the sensor harness clips from the vehicle at two places.
5. Disconnect the sensor link from the ball stud.

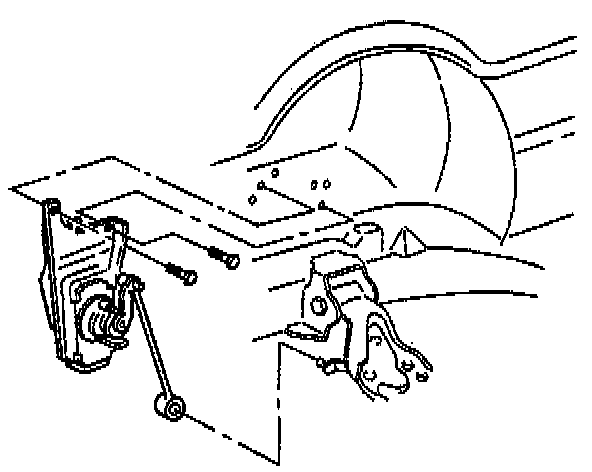

Front:

6. Remove the two screws and position sensor from the vehicle.

INSTALLATION

NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.





1. Install the position sensor on the vehicle with two screws.
^ Tighten two screws to 10 Nm (89 inch lbs).

2. Connect the sensor link to the ball stud.





3. Connect the sensor harness connector to the vehicle harness connector.
4. Connect the sensor harness clips to the vehicle at two places.
5. Install the wheel onto the vehicle.
6. Lower the vehicle.
