Pinout Description

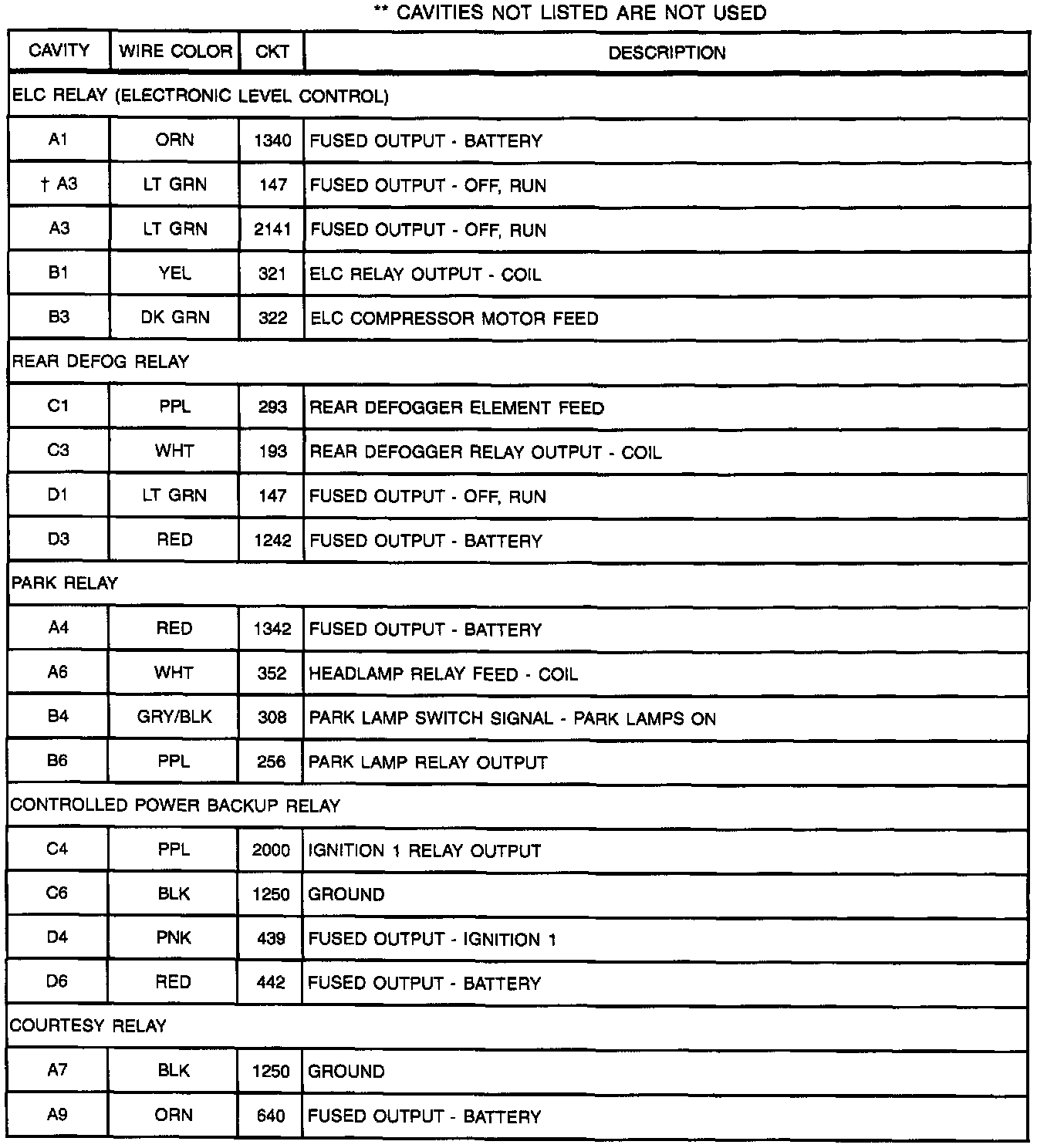

Rear Compartment Relay Center #2 (Part 1 Of 2):

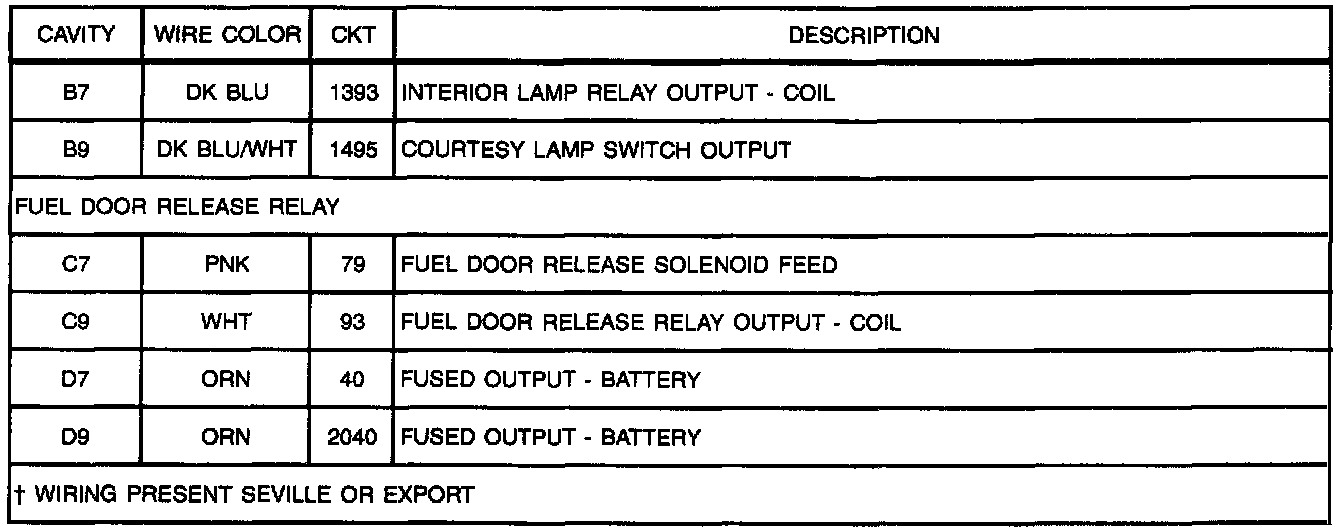

Rear Compartment Relay Center #2 (Part 2 Of 2):
