Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> LH Maxi Fuse Block Fuses >> Indvert Fuse (50 AMP)

Indvert Fuse (50 AMP)

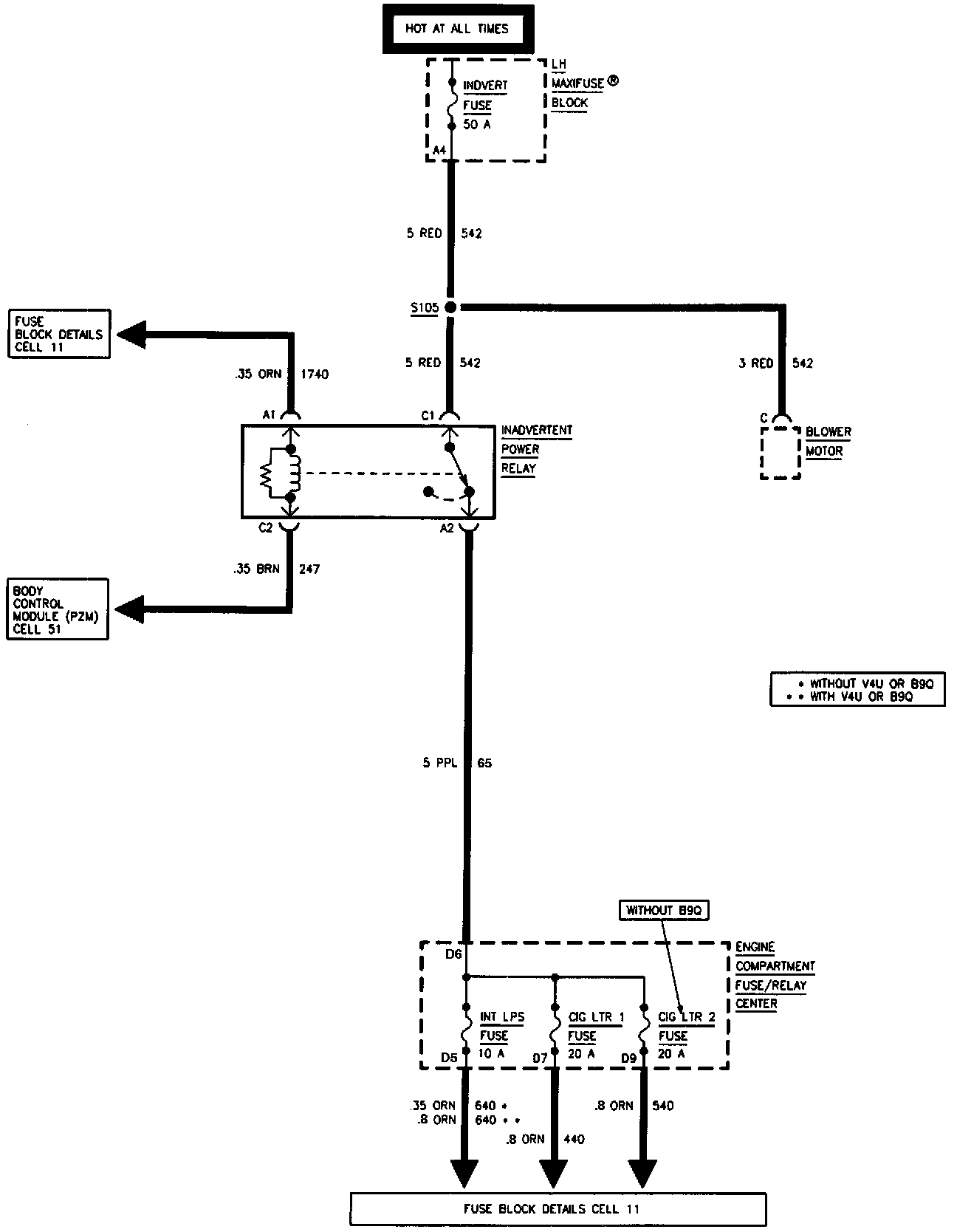

Power Distribution: Indvert Fuse (50 AMP):
