Cadillac
>>
1998
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
Engine Compartment Fuse/Relay Center Fuses
>>
Stop, Hazard, CNR LP Fuses (20 AMP) & IGN 0 (ENG) Fuse (10 AMP)
Stop, Hazard, CNR LP Fuses (20 AMP) & IGN 0 (ENG) Fuse (10 AMP)

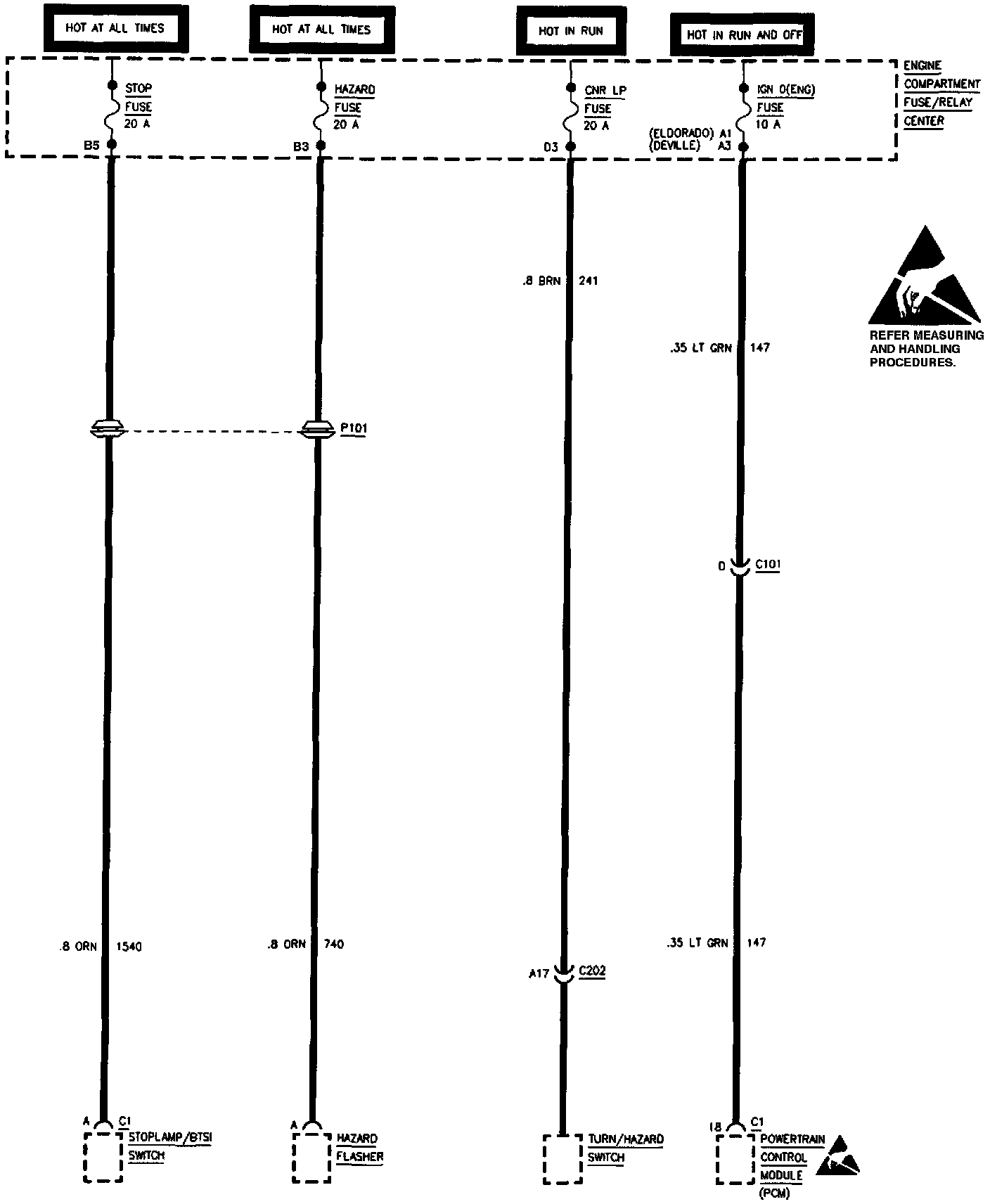

Stop, Hazard, CNR LP Fuses (20 AMP) And IGN 0 (ENG) Fuse (10 AMP):
