Home
>>
Cadillac
>>
1998
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
Engine Compartment Fuse/Relay Center Fuses
>>
INT LPS Fuse (10 Amp)
INT LPS Fuse (10 Amp)

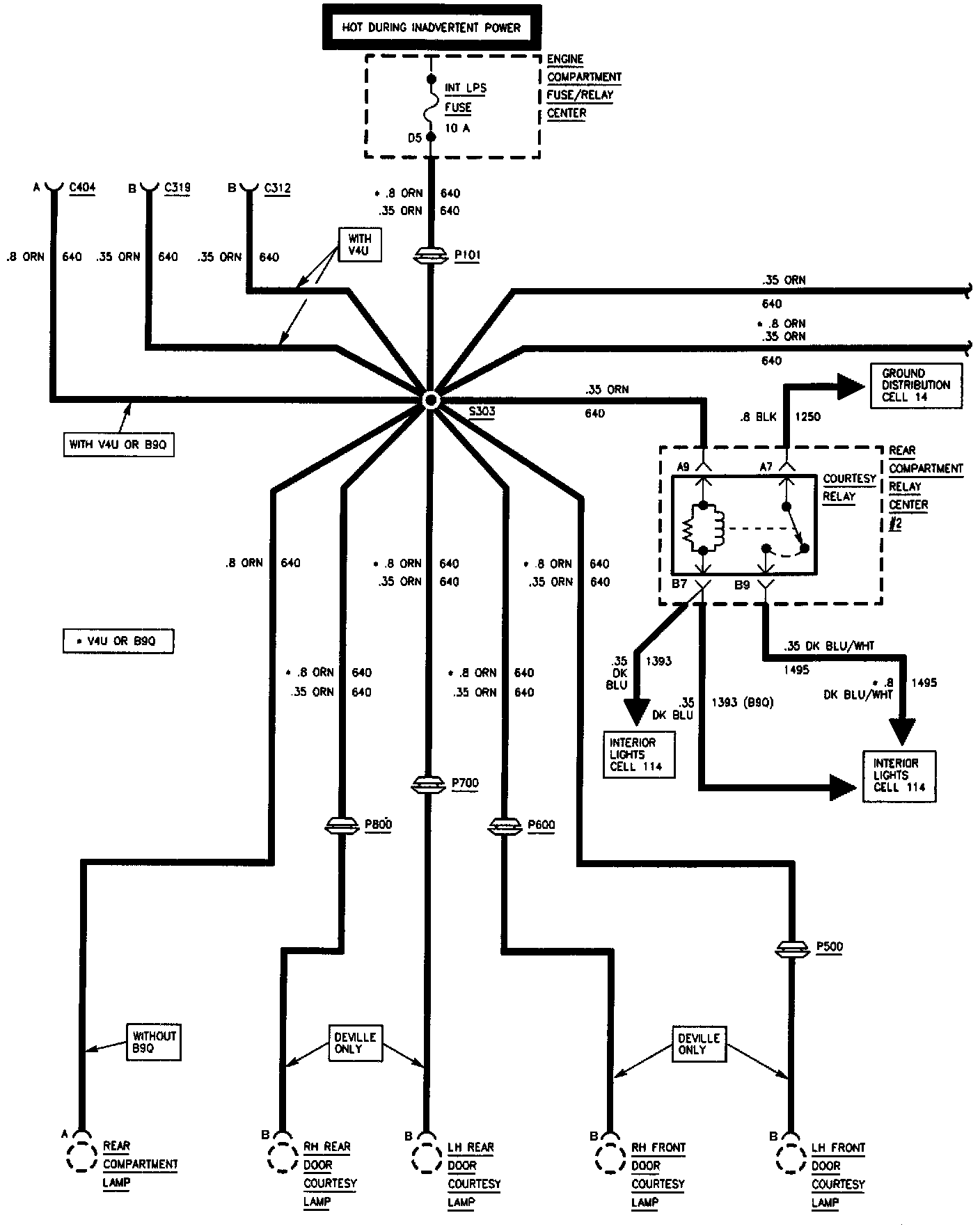

Fuse Block Details: INT LPS Fuse (10 AMP) (Part 1 Of 2):

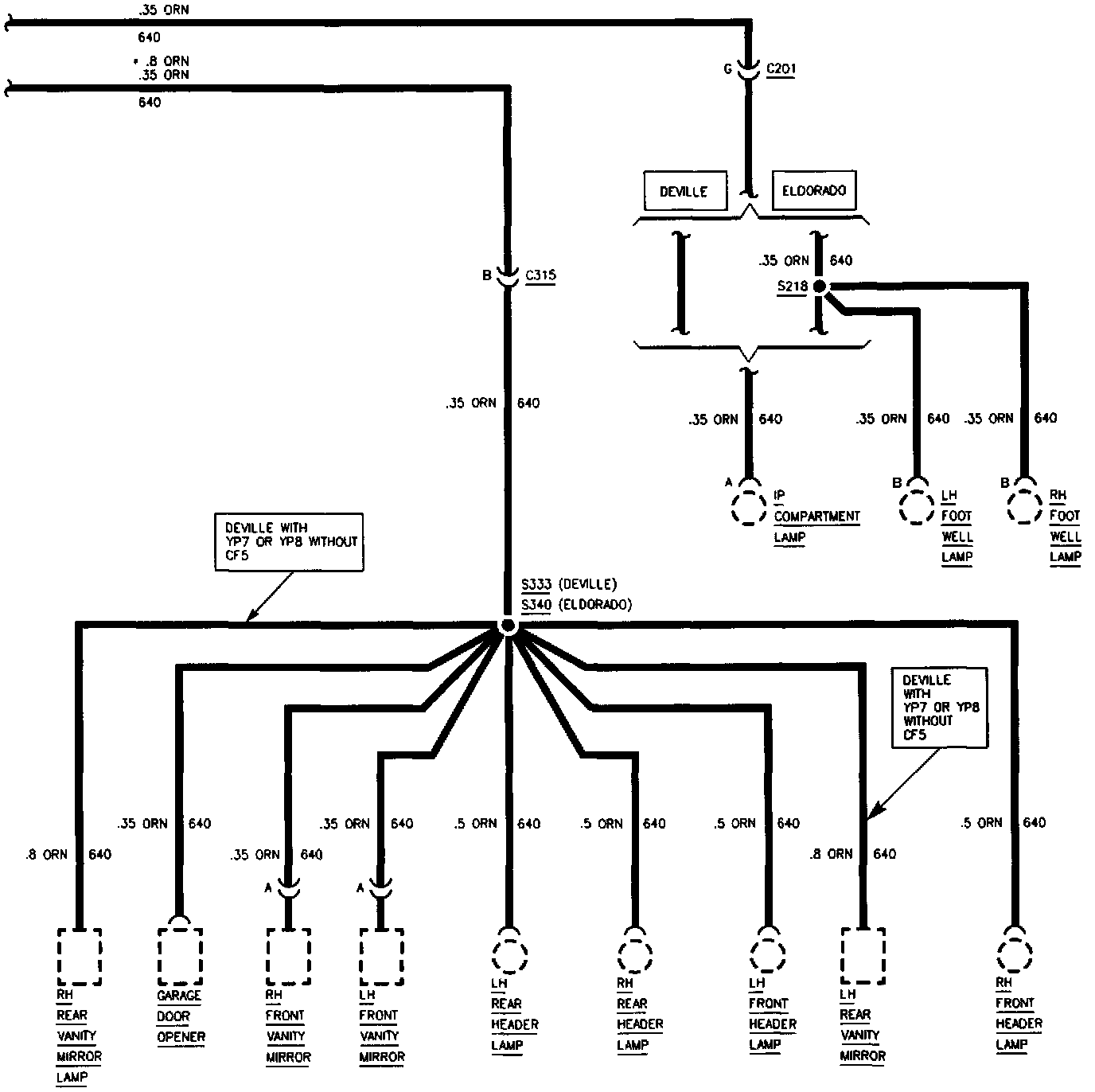

Fuse Block Details: INT LPS Fuse (10 AMP) (Part 2 Of 2):
