Typical Scan Data Values

Diagnostic Chart:

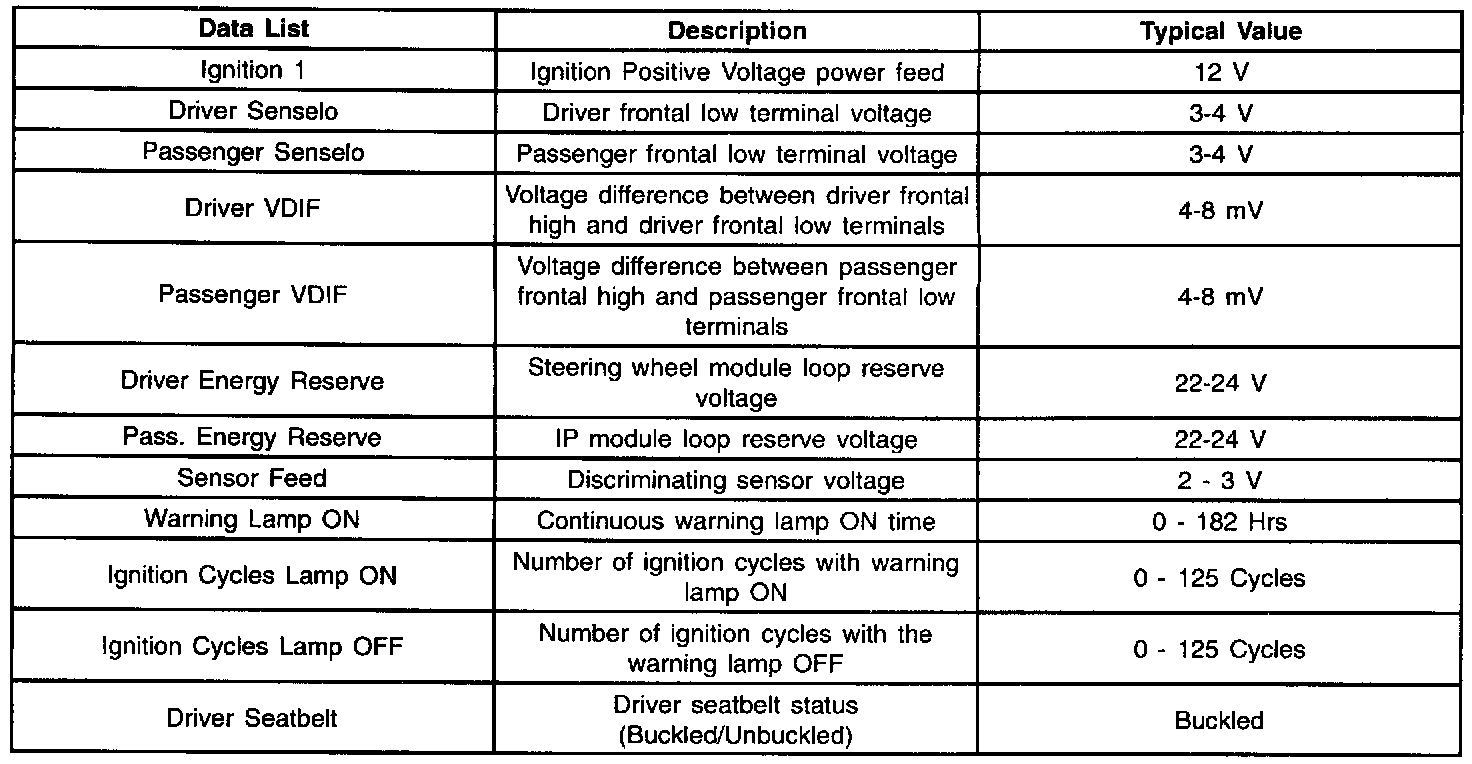

The following table shows the typical values of the data displays under the following conditions:

^ Ignition switch in RUN
^ Engine OFF
^ Driver seatbelt buckled
