Home >> Cadillac >> 1998 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Steering and Suspension >> Relays and Modules - Suspension >> Suspension Control Module >> Locations

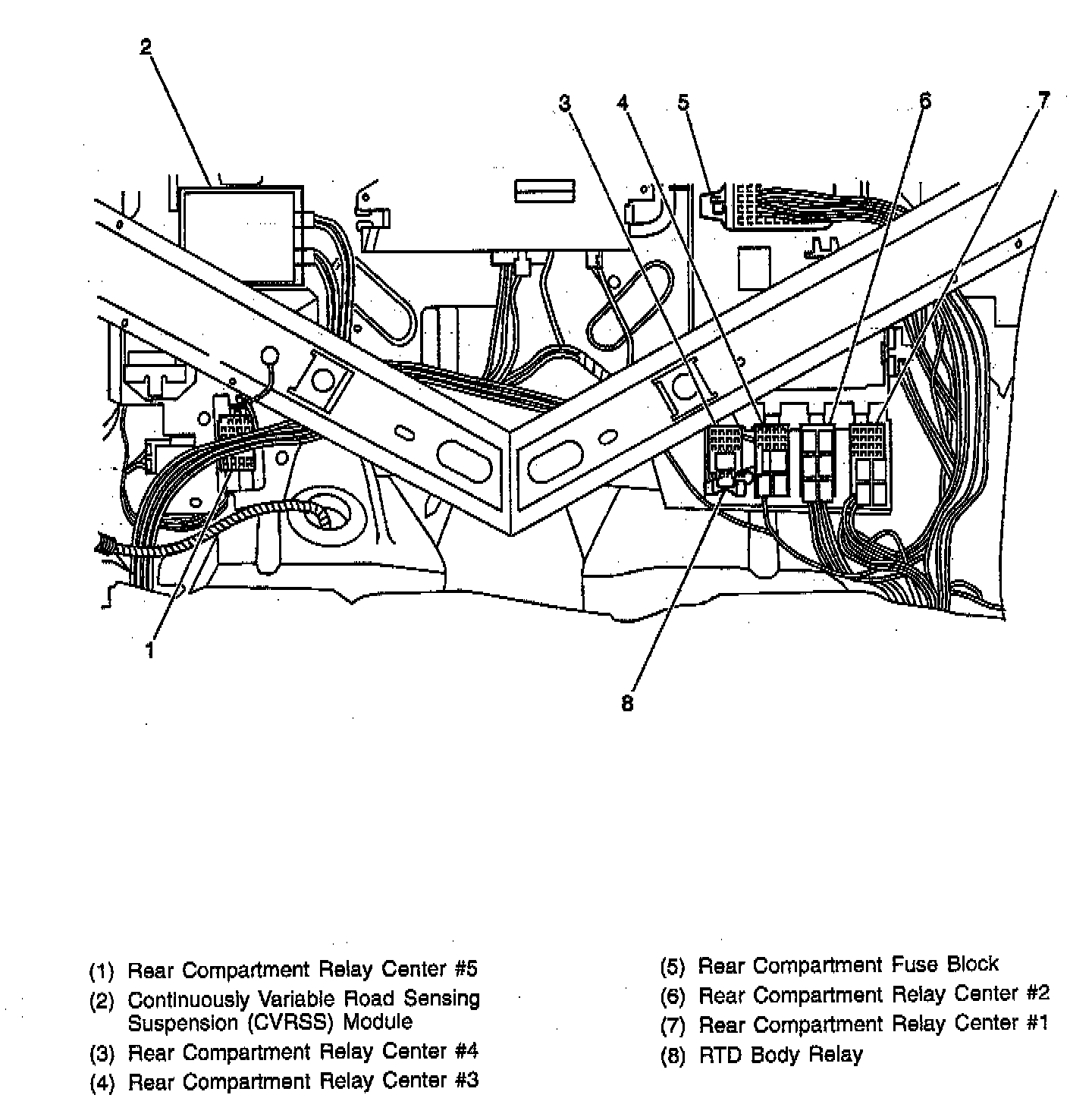

Suspension Control Module: Locations

Behind The Rear Seat Cushion:






Right hand rear of passenger compartment, behind the rear seat on the electronics bay.
